6YY - 230A Hydraulic Oil Press Machine , Olive Oil Processing Machine With Adjustable Temperature

6YY - 230A Hydraulic Oil Press Machine , Olive Oil Processing Machine With Adjustable Temperature

electric oil press machine

hydraulic oil extractor

Place of Origin:

Henan , China(Mainland)

Brand Name:

Lewin

Certification:

ISO CE

Model Number:

6YY-230A

Contact Us

Request A Quote
Product Details
Name:
Hydraulic Oil Press Machine
Model:
6YY - 230A
Weight:
924kg
Usage:
Cold & Hot Pressing
Oil Rate:
98%
Warranty:
1 Year
Shipping:
Sea Ship
Voltage:
220V / 380V
Key Word:
Olive Oil Processing Machine
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case package / Customized
Delivery Time
5-7 working days
Payment Terms
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

6YY - 230A Hydraulic Oil Press Machine , Olive Oil Processing Machine With Adjustable Temperature


I. Production decription

1. This hydraulic oil press machine is the most advanced equipment and takes up less area. Its material mainly electroplate.

2. It is economic and environmental protection, stable and durable. This machine adopts automatic control system, hydraulic pressure control system and temperature control system.

3. This machine can work continuously for 24 hours. It can squeeze 4-23 kilogram per batch, the time of pressing is 8 minutes.

4. The pressure of our machine is 60Mpa, higher than other machine(the normal is 45Mpa to 55Mpa), provide higher oil yield.

6YY - 230A Hydraulic Oil Press Machine , Olive Oil Processing Machine With Adjustable Temperature 0

Parameter:

Model 6YY-185 6YY-230A 6YY-230B 6YY-250 6YY-270 6YY-300 6YY-335 6YY-355

Capacity

(kg/batch)

4 8.5 9.5 11 13.5 16 20 23
Working pressure 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa
Weight (kg) 590 924 950 1070 1230 1600 1750 2350

Power

(3 /single phase)

1.1/2.2 kw 1.1/2.2 kw 1.1 /2.2kw 1.1/2.2 kw 2.2/4.0 kw 2.2/4.8 kw 2.2/4.8 kw 3.0/5.0 kw

Package

Size(m)

0.78*1*1.58 0.78*1*1.58 0.78*1*1.68 0.78*1.04*1.71 0.82*1.081*1.75 0.94*1.14*1.81 0.94*1.16*1.8 1.04*1.24*1.92

Capacity

(Kg/24h)

190-260 500-650 600-750 650-780 800-1000 950-1200 1100-1400 1500-2000
Oil cake diameter 185mm 230mm 230mm 250mm 270mm 300mm 335mm 355mm
Residual oil ≤2% ≤2% ≤2% ≤2% ≤2% ≤2% ≤2% ≤2%

















































Application:

This machine can cold or hot press various of oil seeds, includes sesame, peanut, castor, walnut, camellia, olive, palm, avocado, sunflower, rapeseed, ect.

6YY - 230A Hydraulic Oil Press Machine , Olive Oil Processing Machine With Adjustable Temperature 1

Workflow:

6YY - 230A Hydraulic Oil Press Machine , Olive Oil Processing Machine With Adjustable Temperature 2

Operation step:

6YY - 230A Hydraulic Oil Press Machine , Olive Oil Processing Machine With Adjustable Temperature 3


II. Detail show

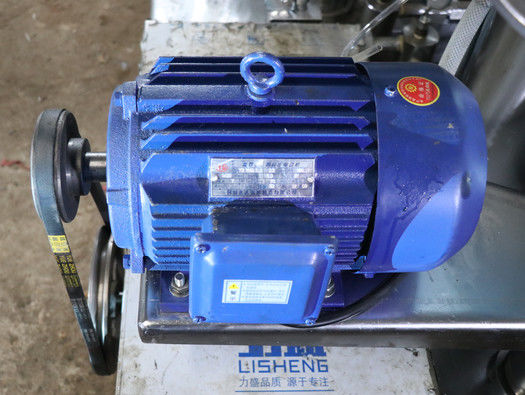

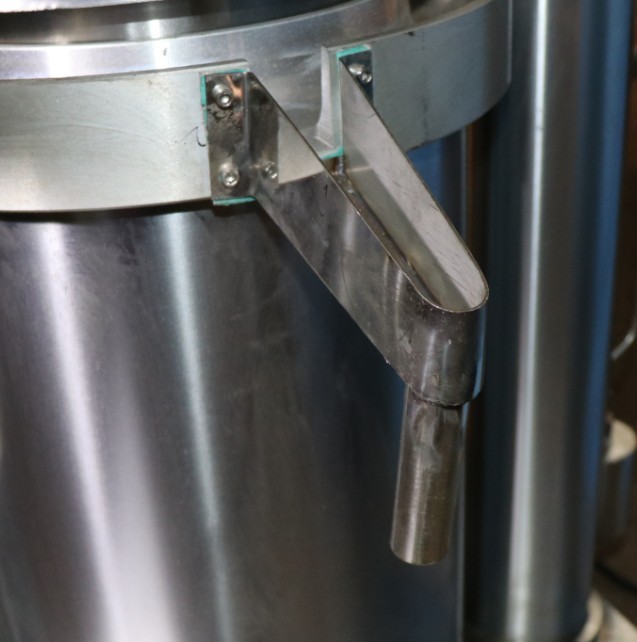

Different side display:

6YY - 230A Hydraulic Oil Press Machine , Olive Oil Processing Machine With Adjustable Temperature 4

6YY - 230A Hydraulic Oil Press Machine , Olive Oil Processing Machine With Adjustable Temperature 5


III. Packing & Delivery



Packing:

1. Standard export wooden case package.

2. Customized.

Delivery:

We can arrange to ship by sea in generally 7-10 working days after receipt the deposit. Also we can offer other shipping method, such as by air, by express, by train and so on. We have many shipping agent to meet different request for the shipping.

6YY - 230A Hydraulic Oil Press Machine , Olive Oil Processing Machine With Adjustable Temperature 6


IV. Our service



1. Pre-sale service: we offer different solution for different request and material.

factory view accepted.

test machine accepted.

7x24 hours online service.

2. After sale service:

1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.

6YY - 230A Hydraulic Oil Press Machine , Olive Oil Processing Machine With Adjustable Temperature 7
