Automatic oil bottle packing line filling machine cover capping machine labeling machine
Product information:

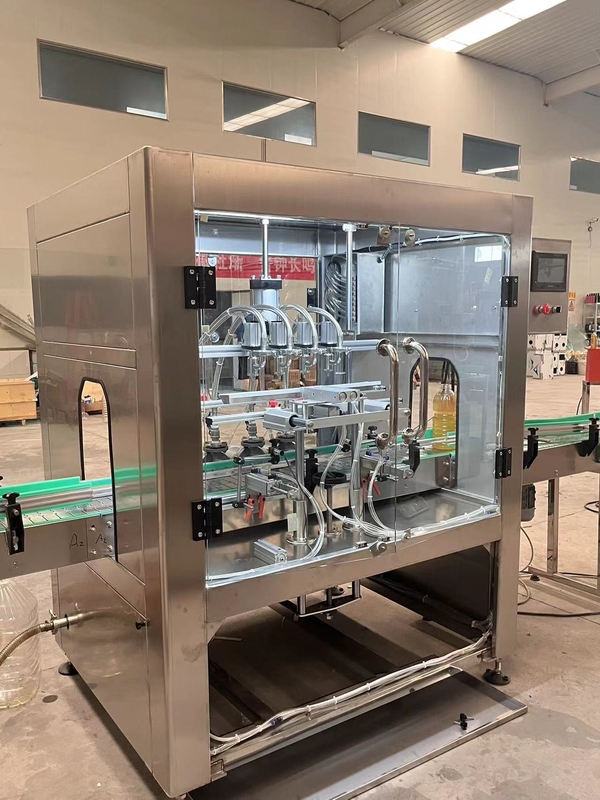

Lewin liquid bottle filling machine can fill perfume, juice, milk,soy sauce vinegar, alcohol spray, coffee milk tea, mineral water,skin care water, shampoo, laundry detergent and etc.

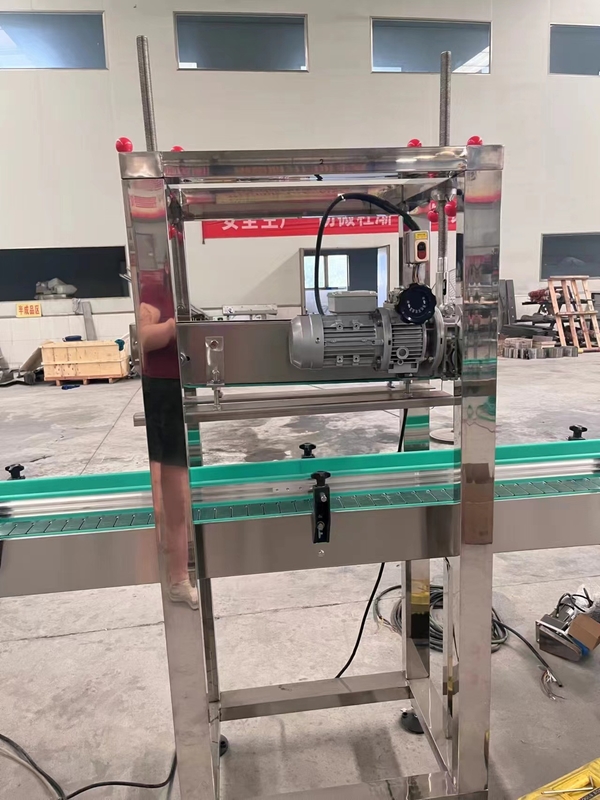

Lewin cover capping machine, it can use for pressing capping.

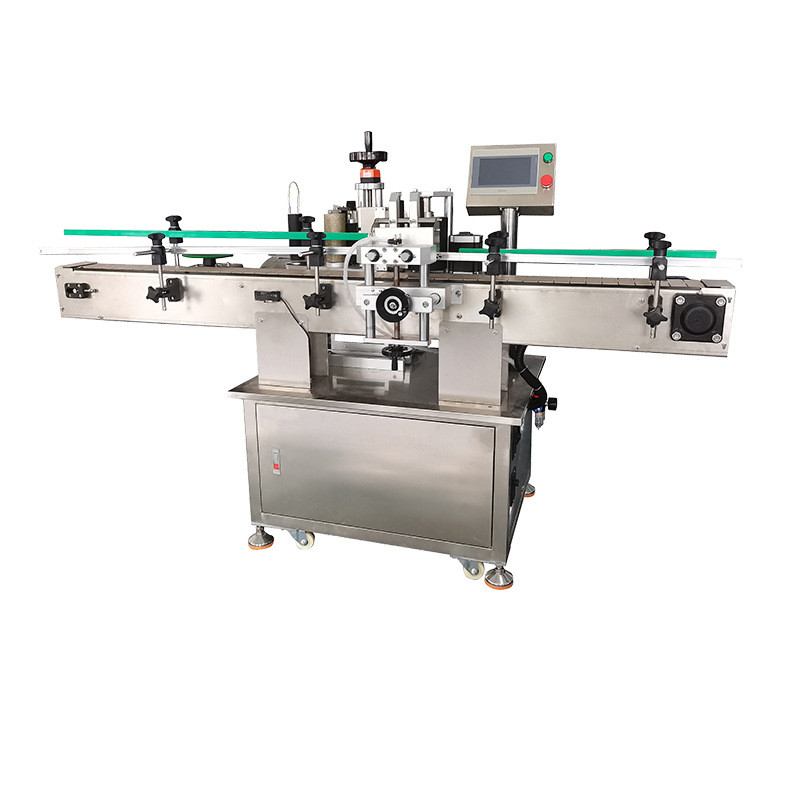

Lewin labeling machine is better to use for round bottles, and it can be label single side and double side.
Application of filling machine:
This filling machine can use for Drinks, beverages, soy sauce vinegar, edible oil,disinfectants, pesticides,liquid fertilizers, potions,oral liquids, liquid fertilizers, glues, essences, beauty lotions, etc. For more applicable products, please consult customer service!
Parameter of filling machine
| Product name | Filling machine |
| Filling heads quantity | 1- 4 heads |
| Filling volume | 1-5L |
| Filling capacity | 100-500 bottles/h |
| Power supply | 3N 380v 50Hz |
| Filling accuracy | ≤0.2% |
| Power | 4 kw |
| Working pressure | 0.6-0.7MPA |
Paremeter of press capping machine
| Product name | Press capping machine |
| Diameter of bottle mouth |
18-38mm |
| Bottle height | 100-360mm |
| Power | 0.18kw |
| Cpacity | 2000 bottle/h |
| Size |
800*500*1600mm |
| Weight | 50 kg |
Parameter of labeling machine
| Product name | Labeling machine |
| Label speed | 0-35 piece/min |
| Label accuracy |
±1.0mm |
| Label roll inner diameter | 76mm |
|
Label roll outer diameter |
Max: 350mm |
| Label size |
L: 20-200mm H: 10-80mm |
| Bottle size |
W:20-200mm H: 40-300mm |
| Power |
AC220V 50Hz/60Hz 1200W |
| Machine size | 2000*800*1450mm |
Package:
This line we will use standarded export woode case to package
Delivery:
We have cooperated different shipping company, they will help you ship machine
