5000kg/H Linear Vibrating Screen Machine In Food Processing Industry

Minimum Order Quantity : 1 Price : negotiable
Packaging Details : Standard wooden case with film Delivery Time : 10 working days
Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P Supply Ability : 1000 set per month
Place of Origin: Henan Brand Name: Lewin
Certification: ISO Model Number: LW-SF70

Detail Information

Type: Linear Voltage: 380V/220V/415V/optional
Dimension(l*w*h): 820*900*1500mm Warranty: 1 Year
Application: Food Processing Industry Capacity: 500-5000kg/hr
Weight: 70kg Power: 1.5kw
Function: Screening\separation\sorting\sieving
High Light:

5000kg/H Linear Vibrating Screen Machine

,

1.5kw Vibrating Screen Machine

,

20 Mesh Vibrating Screen Machine

Product Description

Linear Vibrating Screen Machine In Food Processing Industry



I. Detail instruction of the Linear Vibrating Screen Machine



Linear Vibrating Screen Machine uses the vibration motor as the vibration source, so that the materials are thrown up on the screen and move forward in a straight line. The materials are produced through the multi-layer screen and discharged from their respective outlets.

It is more suitable for assembly line operation.


II. Main parameter:



Model 70 100 130
Screen material Metal Metal Metal
Dimension(mm) 820*900*1500 1800*1000*920 2000*1100*950
Weight(kg) 70 100 130
Power(kw) 1.5 2.2 3
Capacity(kg/h) 500-1000 1000-3000 3000-5000
Mesh size 2.0-20 2.0-20 2.0-20
Voltage 220/380V 220/380V 220/380V


III. Pictures

5000kg/H Linear Vibrating Screen Machine In Food Processing Industry 0
5000kg/H Linear Vibrating Screen Machine In Food Processing Industry 1

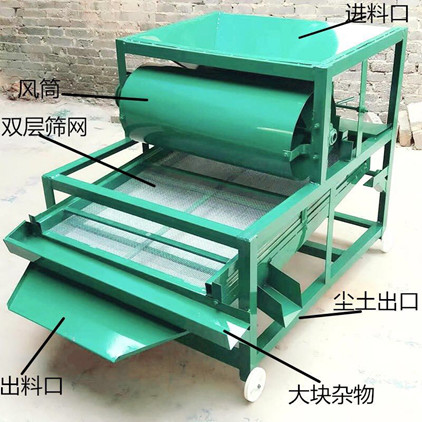

Main part instruction
5000kg/H Linear Vibrating Screen Machine In Food Processing Industry 2
5000kg/H Linear Vibrating Screen Machine In Food Processing Industry 3
5000kg/H Linear Vibrating Screen Machine In Food Processing Industry 4

IV. Our service
Pre-service:
1. Professional engineer will help to make the solution according to customer' request.
2. We will test and adjust before we send the machine, make sure it can be used with confidence after receiving it.
3. We accept the customized model.
4. Accept factory view

After-service:
1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
