180-300 kg/h Peanut Oil Expeller Cold Spiral Oil Processing Equipment

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Wooden Carton Customization Delivery Time : 7-10 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 sets per month
Place of Origin: Henan Province, China Brand Name: Lewin
Certification: CE ISO Model Number: 6YL-130

Detail Information

Product Name: Screw Oil Machine Material: Alloy Steel
Advantage: Cold And Hot Pressing Weight: 1.6 Ton
Oil Material: Groundnut, Sesame, Olive, Corn. Voltage: 380 V/Customized
Capacity: 180-300 Kg/h
High Light:

Spiral Peanut Oil Expeller

,

180 Kg/H Peanut Oil Expeller

,

Cold Spiral Oil Processing Equipment

Product Description

Peanut oil expeller price cold spiral oil processing equipment for sale

Product Information

1. The 6YL series screw press is designed to meet customer requirements for petroleum production.

2. This machine has reasonable design, advanced performance and beautiful appearance.

3. Save time, effort and space.

4. Large processing capacity, high oil yield, pure oil crystals, no foam, no impurities, and can be eaten directly.

5. The L feeding system can realize secondary pressing and extract oil with maximum efficiency.



Operating priciple:

The working principle is that the oil is extruded from the material embryo and discharged from the slots and oil troughs of the strip and circle rows by the continuous pushing of the material embryo in the squeezing chamber and the change of the space volume of the squeezing chamber from large to small, and the oil can be directly eaten in a barrel after deep filtration of the oil tank.

Technical parameters of oil presser:

Model 6YL-120 6YL-130 6YL-150 6YL-160 6YL-180
Weight 1200 kg 1600 kg 1800 kg 1900 kg 1980 kg
Vacuum power 1.1 kw 1.1 kw 2.2 kw 2.2 kw 2.2 kw
3phase 15 kw 22 kw 30kw 30 kw 37 kw
Squeezer speed 100-130 100-130 100-130 100-130 100-130
Capacity(kg/h) 120-160 180-300 220-450 300-600 400-750
Dimension(mm) 2000*1600*2700 2150*1600*2700 2550*1800*2700 2650*1900*2700 2700*2000*2700



Detailed images

Parts of high quality oil presser:

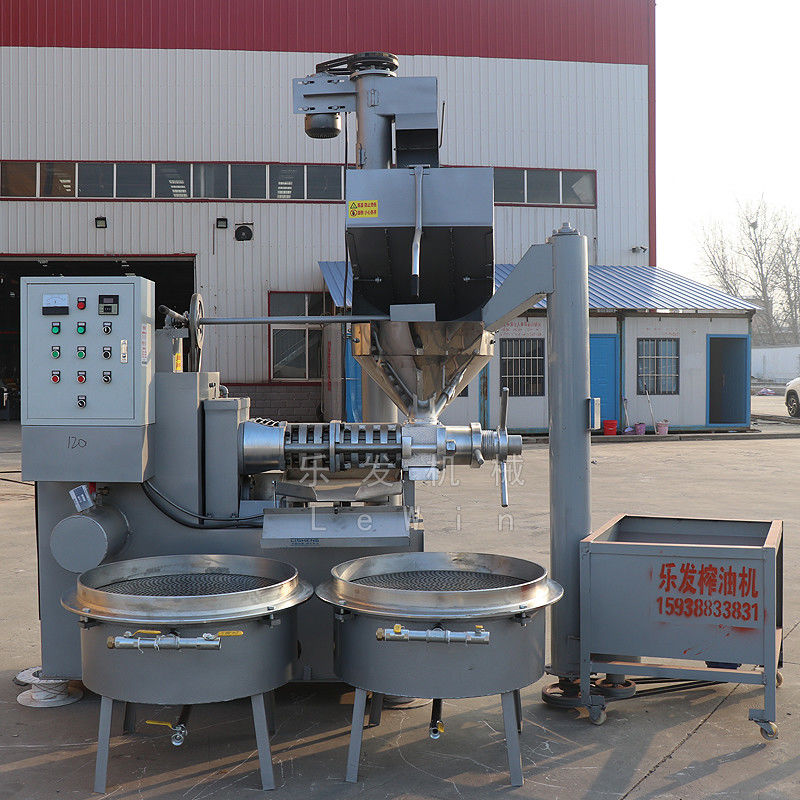

180-300 kg/h Peanut Oil Expeller Cold Spiral Oil Processing Equipment 0

Advantages:

1. L feeding system realizes secondary pressing and avoids oil waste.

2. The two feeding systems work together to improve work efficiency.

3. The vacuum oil filtering system can directly obtain edible pure oil.

4. Work uninterrupted 24 hours a day to reduce manual work and improve work efficiency.

Seeds application of screw oil making machine

It is suitable for direct processing of rape, peanut, sunflower seed, sesame, olive and other oil crops. It does not need to be steamed and fried.

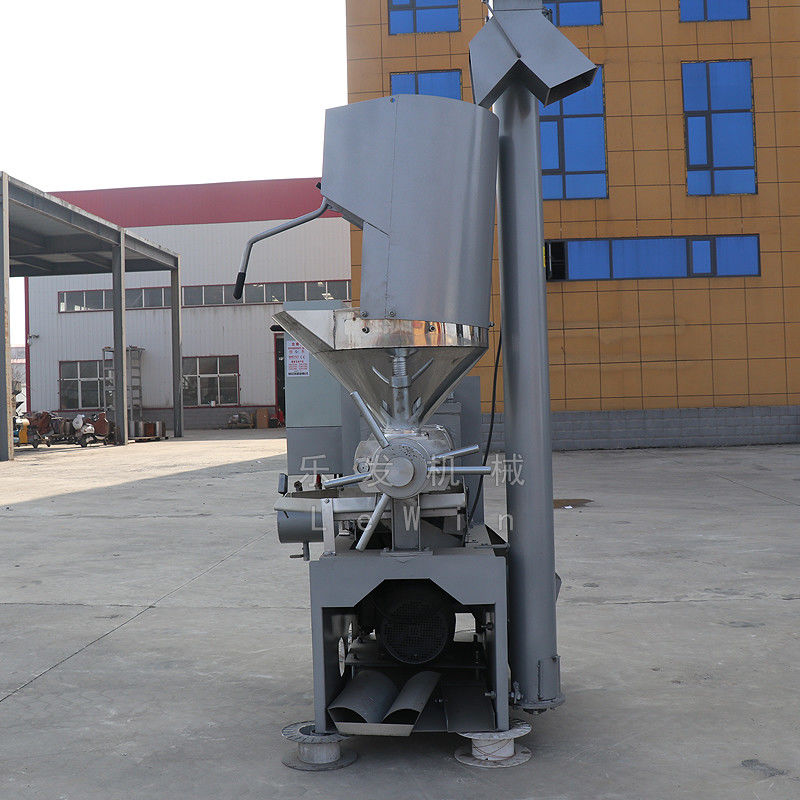

180-300 kg/h Peanut Oil Expeller Cold Spiral Oil Processing Equipment 1

If you want to process other special raw material, please cantact us to ensure.

Workflow

180-300 kg/h Peanut Oil Expeller Cold Spiral Oil Processing Equipment 2

Packing & shipping

We use strong wooden case to ensure the safety of your goods in transit.

180-300 kg/h Peanut Oil Expeller Cold Spiral Oil Processing Equipment 3

Our service

Provide quality service

180-300 kg/h Peanut Oil Expeller Cold Spiral Oil Processing Equipment 4

1.Professional engineer

Our professional engineer will test the machine in each step.

2.Before delivery

Every machine carefully adjusted before shipment.

3.After-service

The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
