Place of Origin:
Henan Province, China
Brand Name:
Lewin
Certification:
CE ISO
Model Number:
6YL-120
Contact Us
Screw oil processing equipment cold screw oil pressers for sale
Product Description
The 6YL series screw press is designed to meet customer requirements for petroleum production. The machine has reasonable design, advanced performance and beautiful appearance. It is suitable for the direct processing of oilseed crops such as rapeseed, peanut, sunflower seed, sesame, olive and so on. It does not need to be steamed and fried. It saves time, labor and space. Large processing capacity, high oil yield, pure oil crystals, no foam and no impurities. The automatic feeding hoist can fully realize production automation.
Advantages:
1. Achieve secondary pressing to avoid oil waste.
2. The two feeding systems work together to make the work more efficient.
3. Vacuum oil filtering system to obtain pure oil.
4. Work uninterrupted 24 hours a day to reduce labor and improve work efficiency.
Operating priciple:
The working principle is that the oil is extruded from the material embryo and discharged from the slots and oil troughs of the strip and circle rows by the continuous pushing of the material embryo in the squeezing chamber and the change of the space volume of the squeezing chamber from large to small, and the oil can be directly eaten in a barrel after deep filtration of the oil tank.
Technical parameters of oil presser:
| Model | 6YL-120 | 6YL-130 | 6YL-150 | 6YL-160 | 6YL-180 |
| Weight | 1200 kg | 1600 kg | 1800 kg | 1900 kg | 1980 kg |
| Vacuum power | 1.1 kw | 1.1 kw | 2.2 kw | 2.2 kw | 2.2 kw |
| 3phase | 15 kw | 22 kw | 30kw | 30 kw | 37 kw |
| Squeezer speed | 100-130 | 100-130 | 100-130 | 100-130 | 100-130 |
| Capacity(kg/h) | 120-160 | 180-300 | 220-450 | 300-600 | 400-750 |
| Dimension(mm) | 2000*1600*2700 | 2150*1600*2700 | 2550*1800*2700 | 2650*1900*2700 | 2700*2000*2700 |
Detailed images

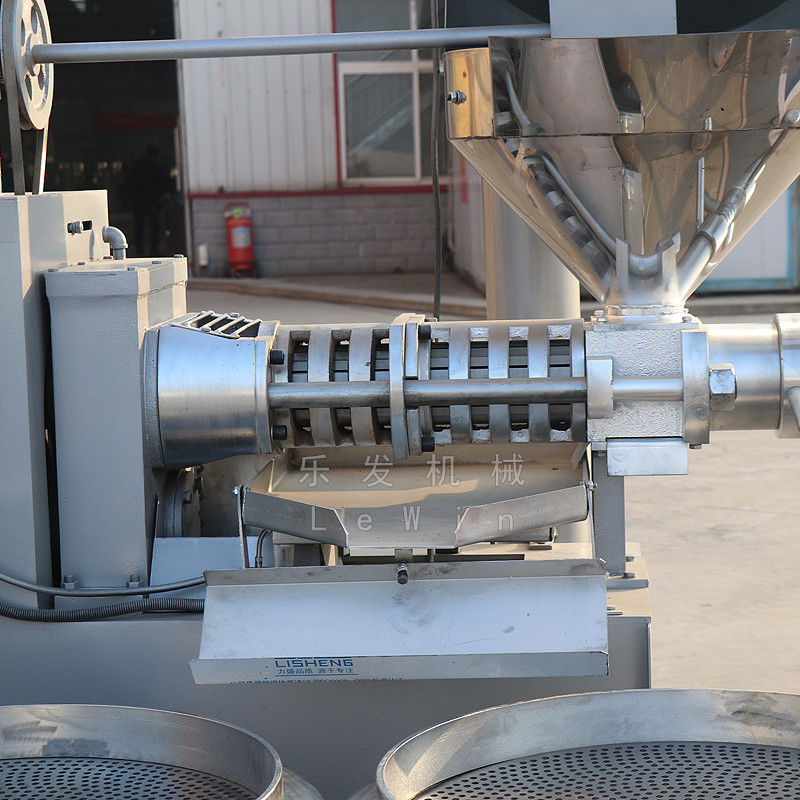

Parts of high quality oil presser:
Seeds application of screw oil making machine
If you want to process other special raw material, please cantact us to ensure.
Packing & shipping
We use strong wooden case to ensure the safety of your goods in transit.
Our service
Provide quality service
1.Professional engineer
Our professional engineer will test the machine in each step.
2.Specialist manufacture
Every machine carefully adjusted before shipment.
3.After-service
The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
