Home ProductsScrew Oil Press Machine3-6 tons/day Cold Screw Oil Press Machine Sesame Oil Extraction Machine

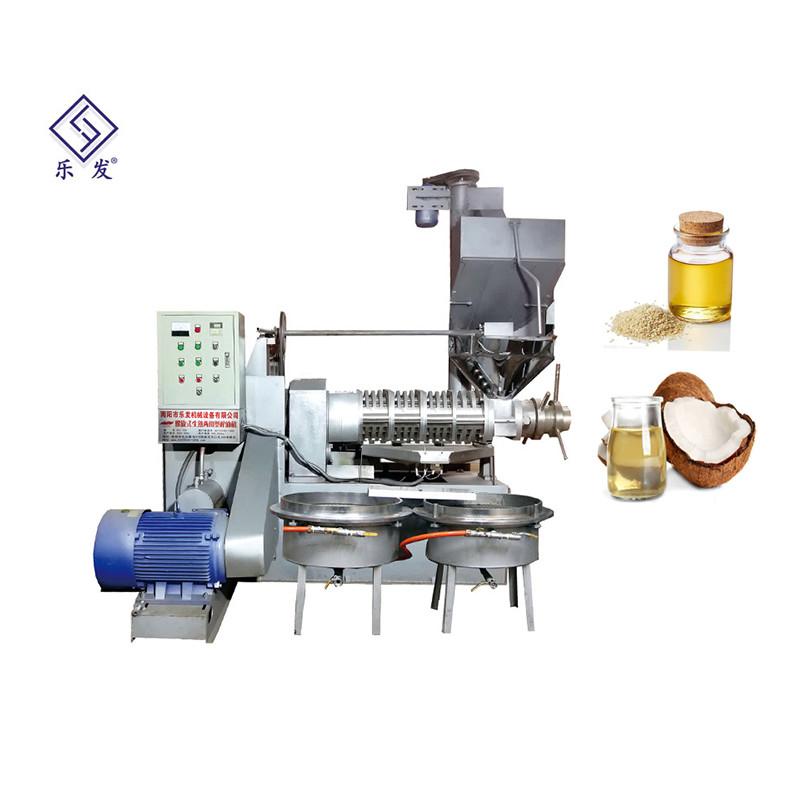

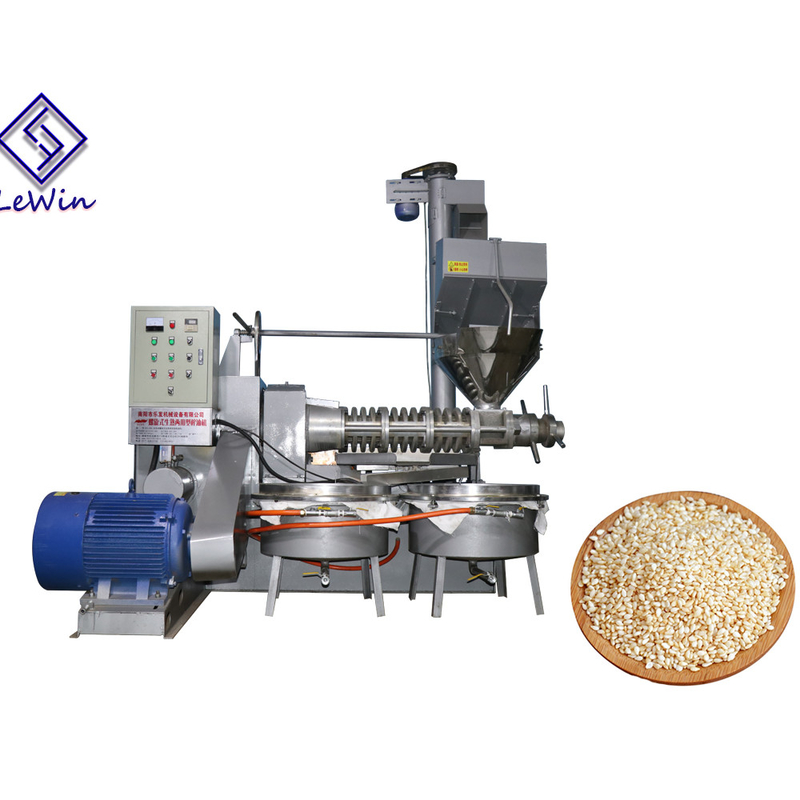

3-6 tons/day Cold Screw Oil Press Machine Sesame Oil Extraction Machine
3-6 tons/day Cold Screw Oil Press Machine Sesame Oil Extraction Machine 3-6 tons/day Cold Screw Oil Press Machine Sesame Oil Extraction Machine
Contact Now

3-6 tons/day Cold Screw Oil Press Machine Sesame Oil Extraction Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Wooden Carton Customization Delivery Time : 7-10 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 sets per month
Place of Origin: Henan Province, China Brand Name: Lewin
Certification: CE ISO Model Number: 6YL-150

Detail Information
Product Name: Screw Oil Maker Machine Weight: 1800kg
Material: Alloy Steel Voltage: 380 V
Capacity: 3-6 Tons/day Squzzer Speed: 60-100 RPM
High Light:

6 Tons/Day Cold Screw Oil Press Machine

,

Sesame Oil Cold Screw Oil Press Machine

,

6 Tons/Day Sesame Oil Extraction Machine

Product Description

COLD SCREW OIL PROCESSING EQUIPMEMT SESAME OIL EXTRACTION DEVICE

Brief Introduction:

1. The fully automatic screw oil press is a newly developed and improved product.

2. The machine can squeeze more, saving time, effort and space. The operation is simple and can be operated by one person.

3. The heating temperature can be set, the pressing is directly filtered, the oil output rate is high, and the oil output is pure.

4. This machine can work continuously for 24 hours. The service life of this machine is more than ten years.

5. L-type oil cake feeding system can directly squeeze oil cake twice.



Characters:

1. Stable performance

The main components of our machines are produced by ourselves in order to guarantee the oil rate and the quality of the machine.

2. Oil pure and fragrant

The oil filter is dense that the oil can be filtered clean.

3. High oil yield

The diameter of the spiral squeezer is longer than other similar products and the squeezer speed is low so that the raw material can be pressed clean.

4. Saving time and effort

The L shape of oil cake feeding system can directly press the oil cake twice.

5. Temperature Control System

The temperature of the oil is automatically temperature controlled to improve the processing speed of the oil, and the low temperature environment can be produced normally.



Working priciple:

The working principle is that the oil is extruded from the material embryo and discharged from the slots and oil troughs of the strip and circle rows by the continuous pushing of the material embryo in the squeezing chamber and the change of the space volume of the squeezing chamber from large to small, and the oil can be directly eaten in a barrel after deep filtration of the oil tank.



Technical parameters of oil presser:

Model 6YL-120 6YL-130  6YL-150 6YL-160 6YL-180
Weight 1200 kg 1600 kg 1800 kg 1900 kg 1980 kg
Vacuum power 1.1 kw 1.1 kw 2.2 kw 2.2 kw 2.2 kw
3phase 15 kw 22 kw 30kw 30 kw 37 kw
Squeezer speed 100-130 100-130 100-130 100-130 100-130
Capacity(kg/h) 120-160 180-300 220-450 300-600 400-750
Dimension(mm) 2000*1600*2700 2150*1600*2700 2550*1800*2700 2650*1900*2700 2700*2000*2700



Detailed images

Parts of high quality oil presser:

3-6 tons/day Cold Screw Oil Press Machine Sesame Oil Extraction Machine 0

Seeds application of screw oil making machine

3-6 tons/day Cold Screw Oil Press Machine Sesame Oil Extraction Machine 1

If you want to process other special raw material, please cantact us to ensure.

Workflow

3-6 tons/day Cold Screw Oil Press Machine Sesame Oil Extraction Machine 2

Packing & shipping

We use strong wooden case to ensure the safety of your goods in transit.

3-6 tons/day Cold Screw Oil Press Machine Sesame Oil Extraction Machine 3
