300-600 Kg/H Screw Press For Oil Extraction Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Wooden Carton Customization Delivery Time : 7-10 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 sets per month
Place of Origin: Henan Province, China Brand Name: Lewin
Certification: CE ISO Model Number: 6YL-160

Detail Information

Product Name: Screw Oil Extraction Machinery Material: Alloy Steel
Voltage: 380 V Capacity: 300-600 Kg/h
Dimension: 2650*1900*2700 Mm Squzzer Speed: 60-100 RPM
High Light:

600 Kg/H Oil Extraction Machine

,

300 Kg/H Oil Extraction Machine

,

600 Kg/H Peanut Oil Extraction Machine

Product Description

High quality grade screw press for oil extraction machine

What is screw oil press machine

1. The automatic screw oil press is a new research and improved product..

2. The machine can squeeze more, saving time, effort and space. Simple operation, one person can operate.

3. The heating temperature can be set, and the pressing can be directly filtered, with high oil yield and pure oil..

4. This machine can work continuously for 24 hours. The service life of this machine is more than ten years​.

5. L-type oil cake feeding system can directly squeeze oil cake twice..



How to work

The working principle is that the oil is extruded from the material embryo and discharged from the slots and oil troughs of the strip and circle rows by the continuous pushing of the material embryo in the squeezing chamber and the change of the space volume of the squeezing chamber from large to small, and the oil can be directly eaten in a barrel after deep filtration of the oil tank.





Technical parameters of oil presser:

Model 6YL-120 6YL-130 A 6YL-150 6YL-160 6YL-180
Weight 1200 kg 1650 kg 1800 kg 1900 kg 1980 kg
Vacuum power 1.1 kw 1.1 kw 2.2 kw 2.2 kw 2.2 kw
3phase 15 kw 18.5 kw 30kw 30 kw 37 kw
Squeezer speed 100-130 100-130 100-130 100-130 100-130
Capacity(kg/h) 120-160 160-280 220-450 300-600 400-750
Dimension(mm) 2000*1600*2700 2600*1600*2700 2550*1800*2700 2650*1900*2700 2700*2000*2700



Detailed images

Parts of high quality oil presser:

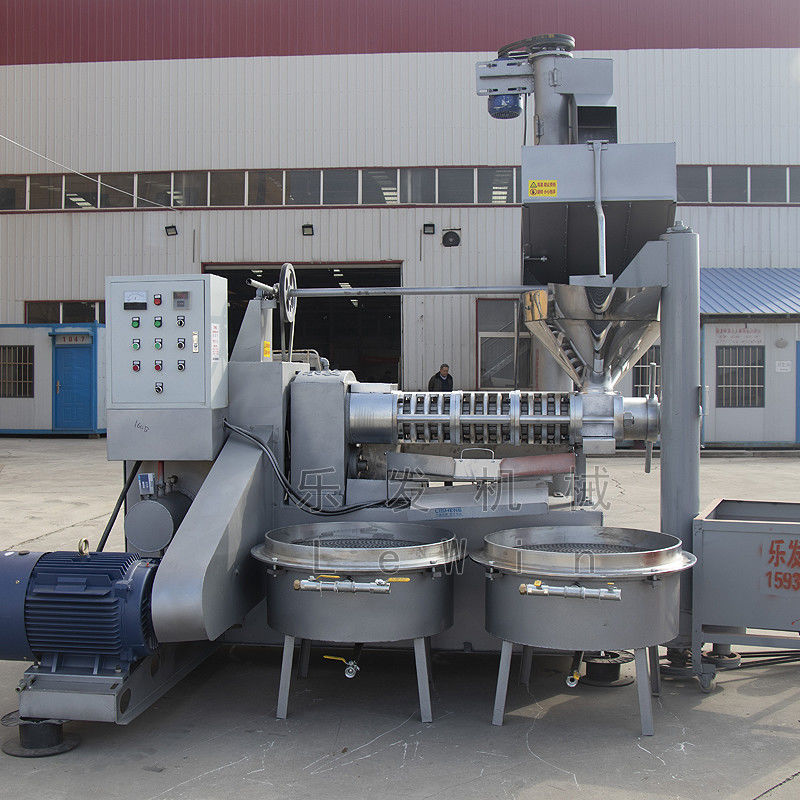

300-600 Kg/H Screw Press For Oil Extraction Machine 0

Characters:

1. Stable performance

The main components of our machines are produced by ourselves in order to guarantee the oil rate and the quality of the machine.

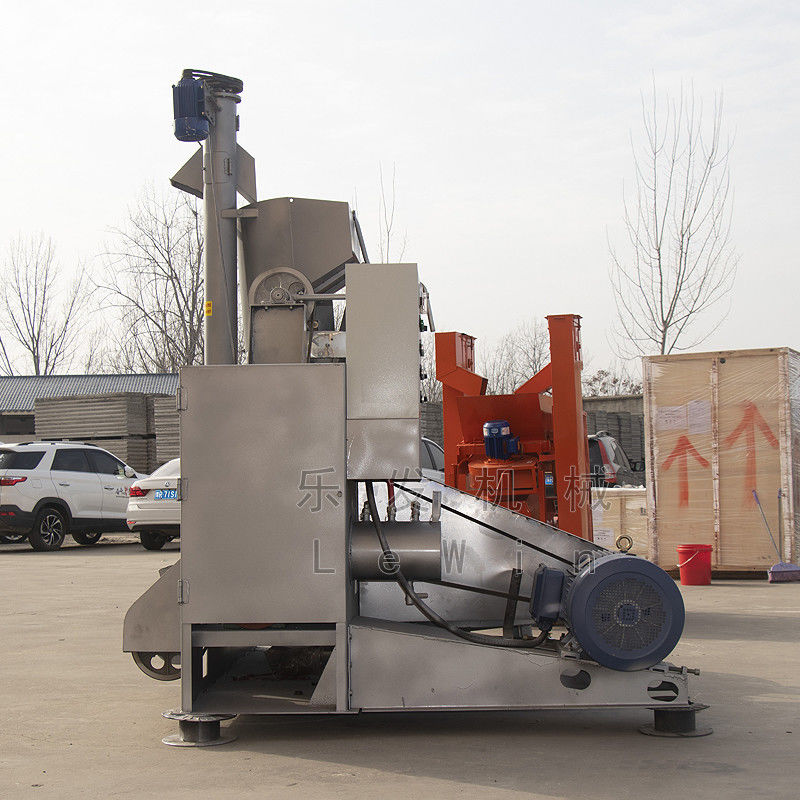

300-600 Kg/H Screw Press For Oil Extraction Machine 1

2. Oil pure and fragrant

The oil filter is dense that the oil can be filtered clean.

300-600 Kg/H Screw Press For Oil Extraction Machine 2

3. High oil yield and long service life

The diameter of the spiral squeezer is longer than other similar products and the squeezer speed is low so that the raw material can be pressed clean. It is made of high quality steel, which has long service life.

300-600 Kg/H Screw Press For Oil Extraction Machine 3

4. Saving time and effort

The L shape of oil cake feeding system can directly press the oil cake twice.

300-600 Kg/H Screw Press For Oil Extraction Machine 4

5. Temperature Control System

The temperature of the oil is automatically temperature controlled to improve the processing speed of the oil, and the low temperature environment can be produced normally.

300-600 Kg/H Screw Press For Oil Extraction Machine 5

Seeds application of screw oil making machine

300-600 Kg/H Screw Press For Oil Extraction Machine 6

If you want to process other special raw material, please cantact us to ensure.

Customer feedback

300-600 Kg/H Screw Press For Oil Extraction Machine 7

Packing & shipping

We use strong wooden case to ensure the safety of your goods in transit.

300-600 Kg/H Screw Press For Oil Extraction Machine 8

Our service

Provide quality service

300-600 Kg/H Screw Press For Oil Extraction Machine 9

1.Professional engineer

Our professional engineer will test the machine in each step.

2.Specialist manufacture

Every machine carefully adjusted before shipment.

3.After-service

The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)

Company information

We have our factory, so we can provide product with the best price.

300-600 Kg/H Screw Press For Oil Extraction Machine 10



Since1998, Henan Lewin Industry Development Co., Ltd was found officially registered under Henan Companies Registry.It is a firm which has the ability for Manufacture,Research&Development, Sale and

Export. Our mainproducts are hydraulic oil press machine, spiral oil press machine, the accessory equipment for the oil press machine and other machine.
