Place of Origin:
Henan Province, China
Brand Name:
Lewin
Certification:
CE
Model Number:
6YL-120
Contact Us
China Lewin Screw oil processing equipment cold and hot
1. The Fully Automatic Spiral Oil Press Machine is a new research improvement product.
2. The machine can be squeezed more, saving time, effort and space. It is easy to operate so that one person can operate it.
3. It can set the heating temperature, directly filter while pressing and has high oil yield and pure oil.
4. This machine can work continuously for 24 hours. The service life of this machine is ten years or longer.

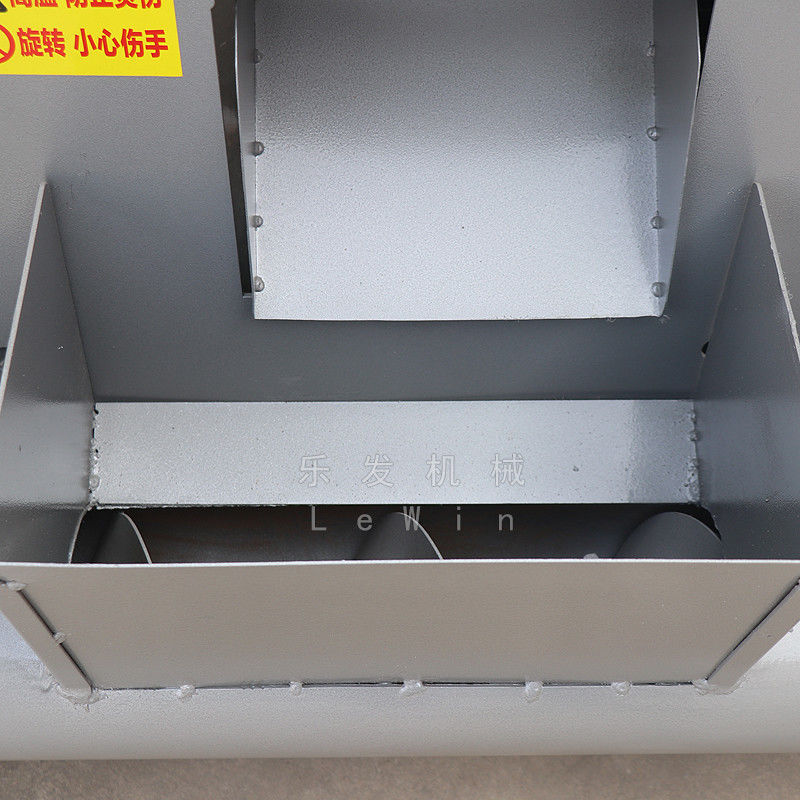

5. The L shape of oil cake feeding system can directly press the oil cake twice.
6. The diameter of the spiral squeezer is longer than other similar product.
mango butter oil extraction mini cold press sesame avocado oil processing machine
| model | 6YL-120 | 6YL-130 | 6YL-130(A) | 6YL-150 | 6YL-160 | 6YLl-180 |
| Weight(kg) | 1500 | 1600 | 1650 | 1800 | 1900 | 1980 |
| Vacuum Power | 1.1KW | 1.1KW | 1.1KW | 2.2KW | 2.2KW | 2.2KW |
| Main Power | 15KW | 22KW | 18.5KW | 30KW | 30KW | 37KW |
| Squeezer speed | 60-100 | 60-100 | 60-100 | 60-100 | 60-100 | 60-100 |
| Capacity (Kg/h) | 120-160 | 180-300 | 160-280 | 220-450 | 300-600 | 400-750 |
| size(mm) | 2000*1600*2700 | 2150*1600*2700 | 2600*1600*2700 | 2550*1800*2700 | 2650*1800*2700 | 2700*2000*2700 |
This spiral oil press machine is used to both cold press and hot press many materials. It can be used to press various kinds of oil corps, like rapeseed, cottonseed, soybean, peanut, sesame, olive, sunflower seeds, walnuts, almond, coconut, tea seed, etc.
The following picture show the referenced oil yield( Any other special materials, we can test and take video for your reference):
peanut oil press process:
This machine mainly includes four parts:
1. Main engine 2. Screw system 3. Electrical system 4. Vacuum pump
Main engine includes base,upright,top plate,oil drip pan,nut and etc which is one of the main parts. When the oil material is put into the assembly of the press boring,then it being driven up by the oil cylinder piston ,oil will be outflow from the gap
of press boring,and then pass the oil drip pan to the drum for oil storage.
manufacture oil mill machinery screw oil process machine
1. The temperature of the oil is automatically temperature controlled to improve the processing speed of the oil, and the low temperature environment can be produced normally.
2. The infrared heating preheating temperature can be controlled to set the heating system, and the press can be pressed at the start.
3. The oil filter is dense so that the oil can be filtered clean.
4. The L shape of oil cake feeding system can directly press oil cake twice, to ensure the high oil yield.
Cold press peanut oil pressing soybean oil mill machinery
