Place of Origin:
China
Brand Name:
Lewin
Certification:
CE ISO
Model Number:
6YL-150
Contact Us

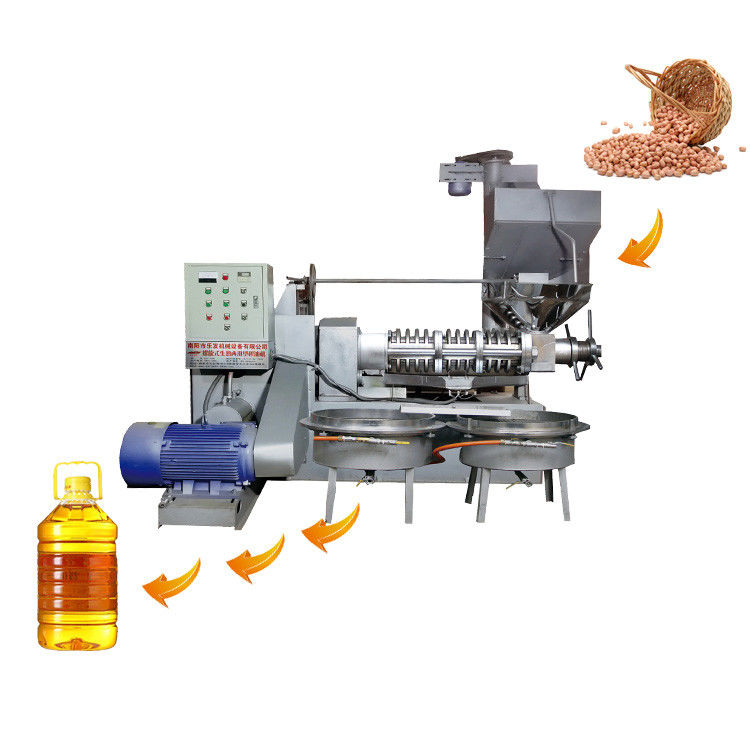

Our screw oil press machine is specially for cold and hot press.
The material was pushed by the press screw and squeezing during the pushing by the different capacity of the press kettle, the oil will discharge from the space of the cage bar or the oil pocket.
After the vacuum oil filter, the quality of the oil can be reached to the cooking grade.
Parameter :
Screw series oil press machine:
| Model | Weight (kg) | The vacuum power (kw) |
3 Phase 380V (kw) |
Squeezer speed (r/min) | Capacity (kg/h) | Dimension (mm3) |
| 6YL-120 | 1500 | 1.1 | 15 | 60-100 | 120-160 | 2000*1600*2700 |
| 6YL-130 | 1600 | 1.1 | 22 | 60-100 | 180-300 | 2150*1600*2700 |
| 6YL-130A | 1650 | 1.1 | 18.5 | 60-100 | 160-280 | 2600*1600*2700 |
| 6YL-150 | 1800 | 2.2 | 30 | 60-100 | 220-450 | 2550*1800*2700 |
| 6YL-160 | 1900 | 2.2 | 30 | 60-100 | 300-600 | 2650*1900*2700 |
| 6YL-180 | 1980 | 2.2 | 37 | 60-100 | 400-750 |
2700*2000*2700 |
Materials:
1. This screw oil presser suits for different oil raw materials, such as peanut, sunflower, olive, avocado, palm etc.
2. If your materials are a little special, we also offer the testing service for your refernce, and send testing videos to you.
3. Raw materials details please have a look the following picture, including but not limited these materials.
Advantage:
About us:
Since 1998
1. More than 20 years of manufacturing experience, and has 10 years export experience of the machinery equipments .
2.Our main products are hydraulic oil press machine, screw oil press machine, roasting machine and other grain and oil machinery.
3.The professional design R&D team, backed by the university and guided by the market to updated the products.
Packing & Delivery:
Any special requirement of shipping, please contact with us, we will help you to solve the problems. We use double packaging of film and wooden case.
shipping : 1.We are mechanical products with a high weight, so we recommend sea transportation.
2.We will meet your needs if you have other requirements for the transportation method.
Packing : 1.Making packing inside is plastic films and out side is fumigation wooden case
2. Our wooden case is very strong, it can bear long time shipping on the sea
3. Machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
For more information contact us as soon as possible.
