Vacuum Filtration 750Kg/H 100RPM Screw Type Oil Expeller

Vacuum Filtration 750Kg/H 100RPM Screw Type Oil Expeller

750Kg/H Screw Type Oil Expeller

100RPM Screw Type Oil Expeller

Place of Origin:

Henan , China

Brand Name:

Lewin

Certification:

CE, ISO

Model Number:

6YL-160

Contact Us

Request A Quote
Product Details
Product Name:
Cold And Hot Press Oil Machine Screw Oil Press Machine High Oil Yield
Applicable Materials:
Peanut, Soybean, Rapeseed, Mustard, Hemp Seed, Coconut, Sesame, Walnut, Olive, Etc.
Dimension(l*w*h):
2650*1900*2700mm
Weight:
1900Kg
Voltage:
380 V/220V
Power:
30Kw
Squeezer Speed:
60-100RPM
Capacity:
50-750Kg/h
Type:
Cold & Hot Pressing Machine,tiger Nut Oil Press/ Oil Press Machine/cooking Oil Press Machine
Function:
Press Oil Seeds,Making Edible Oil,Oil Pressing
Feature:
Multifunction High Efficient,High Oil Yield Efficiency,Cold Press
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case package / Customized
Delivery Time
5-10 working days
Payment Terms
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

Cold And Hot Press Oil Machine Screw Oil Press Machine High Oil Yield​

Cold And Hot Press Oil Machine Screw Oil Press Machine is suitable for cold pressing or hot pressing many oil seeds and oil plant, Especially for pressing peanut, soybean, coconut, sesame, pine nut, walnut, and so on valuable oil seeds.





Main Features:

1. Cold And Hot Press Oil Machine Screw Oil Press Machine with vacuum filtration, fast purification and automatic temperature control technology.
2. High oil yield, about 3% higher than the average oil press, and easy to install.
3. The oil is purity and can be eaten directly after vacuum filtration.

Working Principe:

Screw oil press machine is specially for cold and hot press.

The material was push by the press screw and squeezing during the pushing by the different capacity of the press kettle, the oil will discharge from the space of the cage bar or the oil pocket.

After the vacuum oil filter, the quality of the oil can be reached to the cooking grade.

Parameter:

1.We have many models for you choose.

2.We also accept custom models.

Model Weight Power Squeezer speed Capacity Dimension(mm)
6YL-70 780kg 4kw 60-100rpm 50-100kg/h 1700*1200*1500
6YL-120 1500kg 15kw 60-100rpm 120-160kg/h 2000*1600*2700
6YL-130 1600kg 22kw 60-100rpm 180-300kg/h 2150*1600*2700
6YL-130(A) 1650kg 18.5kw 60-100rpm 160-280kg/h 2600*1600*2700
6YL-150 1800kg 30kw 60-100rpm 220-450kg/h 2550*1800*2700
6YL-160 1900kg 30kw 60-100rpm 300-600kg/h 2650*1900*2700
6YL-180 1980kg 37kw 60-100rpm 400-750kg/h 2700*2000*2700

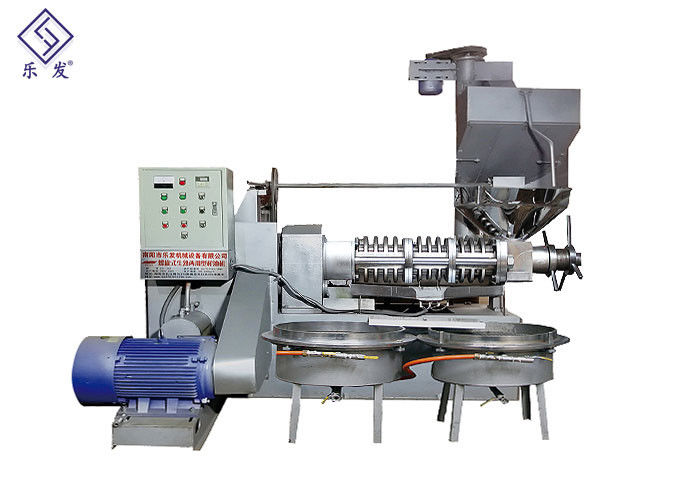

Structure:

Vacuum Filtration 750Kg/H 100RPM Screw Type Oil Expeller 0

Workshop:

 I. Adequate inventory

Vacuum Filtration 750Kg/H 100RPM Screw Type Oil Expeller 1

II. Engineers working

Vacuum Filtration 750Kg/H 100RPM Screw Type Oil Expeller 2



About us:

Vacuum Filtration 750Kg/H 100RPM Screw Type Oil Expeller 3

Our service:

Vacuum Filtration 750Kg/H 100RPM Screw Type Oil Expeller 4
