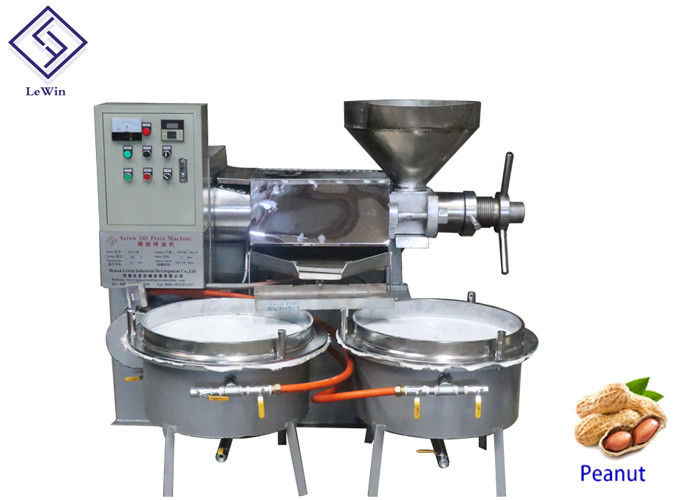

6YL-120 Model Screw Type Press Machine Cold Press Oil Extractor With Oil Filter

6YL-120 Model Screw Type Press Machine Cold Press Oil Extractor With Oil Filter

cold press oil extractor

small scale oil extraction machine

Place of Origin:

Henan Province, China

Brand Name:

Lewin

Certification:

CE ISO

Model Number:

6YL-120

Contact Us

Request A Quote
Product Details
Product Name:
Screw Oil Press Machine
Material:
Alloy Steel
Advantage:
Simple Operation
Weight:
1500 Kg
Oil Material:
Peanut, Sunflower, Sesame,
Voltage:
380 V
Capacity:
120-160 Kg/h
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden Carton Customization
Delivery Time
7-10 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

6YL-120 model screw oil expeller price

cold pressed oil pressers with oil filter

Product Description

1. Screw type cold oil press machine has the advantages of automatic temperature control, a squeeze net, high oil extraction rate, vacuum filtration, high-efficient production and so on.

2. Through the vacuum filtration, the oil liquid is fragrant and seductive, crystal pure, safe and sanitary, and can be directly consumed or bottled for sale.



Operating priciple:

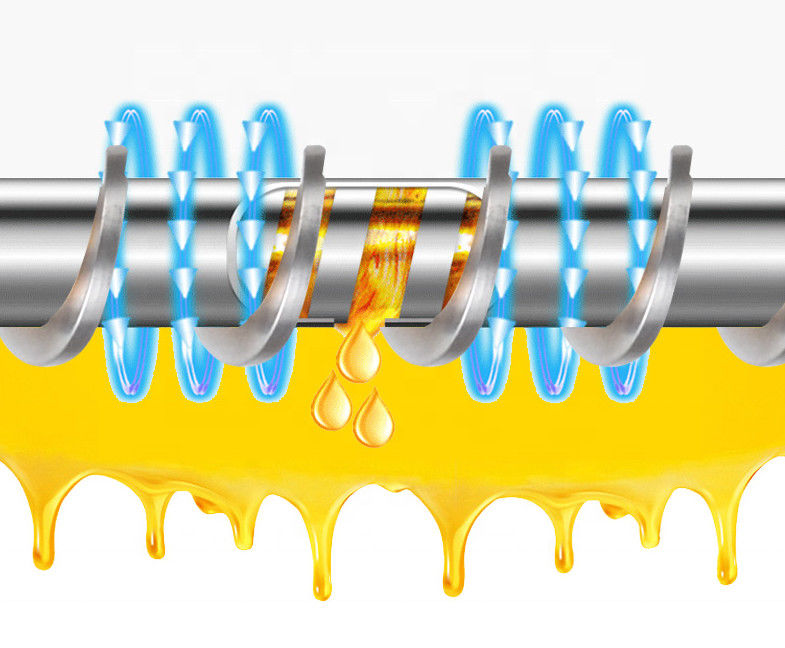

The working principle is that the oil is extruded from the material embryo and discharged from the slots and oil troughs of the strip and circle rows by the continuous pushing of the material embryo in the squeezing chamber and the change of the space volume of the squeezing chamber from large to small, and the oil can be directly eaten in a barrel after deep filtration of the oil tank.

Technical parameters of oil presser:

Model 6YL-120 6YL-130 6YL-150 6YL-160 6YL-180
Weight 1200 kg 1600 kg 1800 kg 1900 kg 1980 kg
Vacuum power 1.1 kw 1.1 kw 2.2 kw 2.2 kw 2.2 kw
3phase 15 kw 22 kw 30kw 30 kw 37 kw
Squeezer speed 100-130 100-130 100-130 100-130 100-130
Capacity(kg/h) 120-160 180-300 220-450 300-600 400-750
Dimension(mm) 2000*1600*2700 2150*1600*2700 2550*1800*2700 2650*1900*2700 2700*2000*2700



Seeds application of screw oil making machine

The multi-functional screw type oil press machine can make sesame, peanut, rapeseed, tea seed, soybean, sunflower seed, flax, cotton seed, corn, walnut and other 20 kinds of oil materials for oil processing.

6YL-120 Model Screw Type Press Machine Cold Press Oil Extractor With Oil Filter 0

If you want to process other special raw material, please cantact us to ensure.

Detailed images

Parts of high quality oil presser:

6YL-120 Model Screw Type Press Machine Cold Press Oil Extractor With Oil Filter 1

Advantages:

1. Realize the second class pressing to avoid oil waste.

2. Two feeding systems work together to make the working more efficiency.

3. Vacuum oil filter system, get pure oil.

4. Keeping work 24h to reduce labor and improve work efficency.



Packing & shipping

We use strong wooden case to ensure the safety of your goods in transit.

6YL-120 Model Screw Type Press Machine Cold Press Oil Extractor With Oil Filter 2

Our service

Provide quality service



6YL-120 Model Screw Type Press Machine Cold Press Oil Extractor With Oil Filter 3

1.Professional engineer

Our professional engineer will test the machine in each step.

2.Specialist manufacture

Every machine carefully adjusted before shipment.

3.After-service

The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)

Company information

We have our factory, so we can provide product with the best price.

6YL-120 Model Screw Type Press Machine Cold Press Oil Extractor With Oil Filter 4

Since1998, Henan Lewin Industry Development Co., Ltd was found officially registered under Henan Companies Registry.It is a firm which has the ability for Manufacture,Research&Development, Sale and

Export. Our mainproducts are hydraulic oil press machine, spiral oil press machine, the accessory equipment for the oil press machine and other machine.
