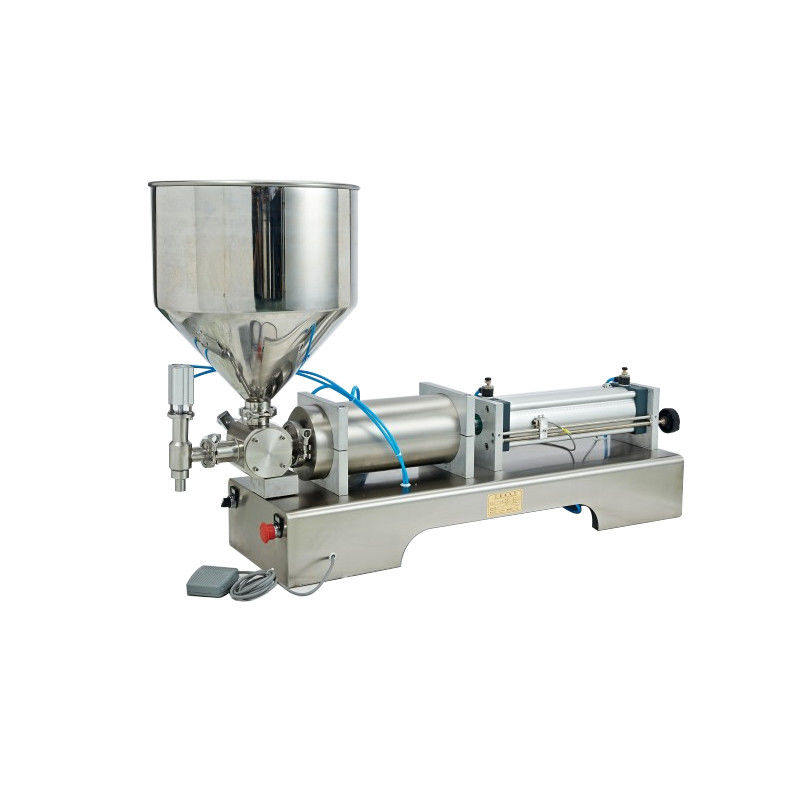

Fast Filling Speed Liquid Paste Filling Machine / Automatic Paste Filling Machine

Minimum Order Quantity : 1 set Price : $ 4000 per set
Packaging Details : Paper case package/ Customized Delivery Time : 7-10 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 sets per month
Place of Origin: Henan, China(Mainland) Brand Name: Lewin
Certification: ISO CE Model Number: LW-2

Detail Information

Product Name: High Filling Speed Pasty Liquid Filling Machine For Home And Industrial Function: Pasty Filling Machine
Filling Speed: 10-30 Bottles/ Min Filling Accuracy: ±0.5%-±1%
Filling Type: Pneumatic Press Air Pressure: 0.4-0.6MPa
Power: 500W Optional Capacity: 5-100ml, 10-200ml, 100-1000ml
High Light:

automatic bottle filling machine

,

automatic oil filling machine

Product Description

High filling speed pasty liquid filling machine for home and industrial


Product Description


1. Our WY series pasty fluid filling machine made of full 304 stainless steel, also can be use the 316stainless steel with customized model. This machine with simple structure, higher filling accuracy and easy to operate.
2. This filling machine widely used for pasty liquid filling, such as the foodstuffs, daily-used chemicals, medicine and other chemical industries.
3. This machine can be produced with single head filling and double head filling, can filling liquid and pasty material. The key parts import from Germany and Taiwan. Best quality and after sale service bring the best reputation to us, welcome to contact us for more information.

Detailed Images


Feature:

1. New horizontal design, light and convenient, automatic feeding, can be added to the hopper with thicker paste.
2. Manual and automatic switching function.
3. Anti-drip filling system.
4. Automatic continuous filling.
5. Loading and unloading is very convenient.



Parameter of our Semi-automatic filling machine for paste cosmetic cream with certificate

Model
6WY-1
6WY-2
Voltage
AC 220V/110V, 50/60HZ
AC 220V/110V, 50/60HZ
Power
20W
50W
Filling speed
10-30 bottles/ min
20-60 bottles/ min
Filling accuracy
±0.5%- ±1%
±0.5%-±1%
Air pressure
0.4-0.6Mpa
0.4-0.6Mpa
Optional capacity
5-100ml, 10-200ml, 100-1000ml
50-500ml, 500-2600ml, 1000-5000ml

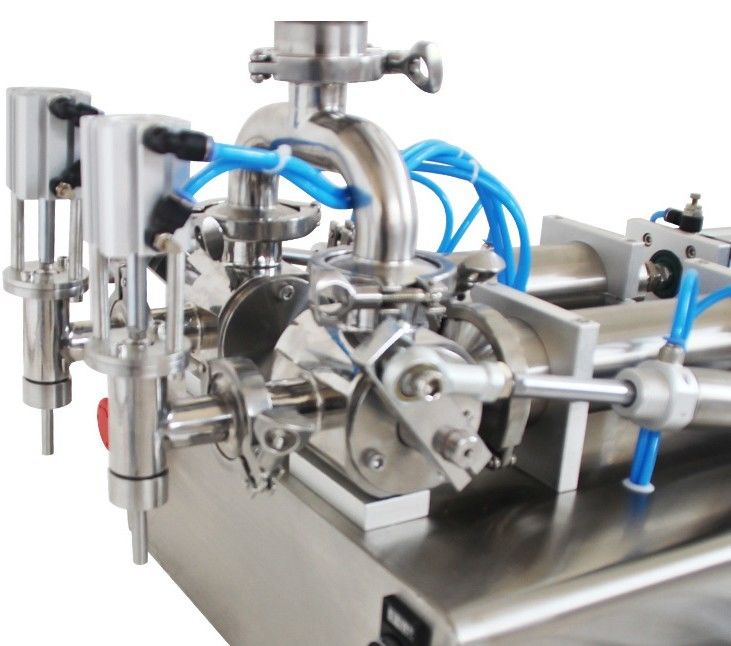

 Fast Filling Speed Liquid Paste Filling Machine / Automatic Paste Filling Machine 0




Fast Filling Speed Liquid Paste Filling Machine / Automatic Paste Filling Machine 1


Fast Filling Speed Liquid Paste Filling Machine / Automatic Paste Filling Machine 2
Fast Filling Speed Liquid Paste Filling Machine / Automatic Paste Filling Machine 3
Fast Filling Speed Liquid Paste Filling Machine / Automatic Paste Filling Machine 4
Fast Filling Speed Liquid Paste Filling Machine / Automatic Paste Filling Machine 5
Fast Filling Speed Liquid Paste Filling Machine / Automatic Paste Filling Machine 6
Packing & Delivery


1. Our machine will be packaged by paper case.
2. Customized.

Fast Filling Speed Liquid Paste Filling Machine / Automatic Paste Filling Machine 7
Our Service


Pre-service:
1. We will test and adjust before we send the machine, make sure it can be used with confidence after receiving it.
2. We accept the customized model.

After-service:
1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller won't  provide service with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.

Fast Filling Speed Liquid Paste Filling Machine / Automatic Paste Filling Machine 8
