3.5t/24h Capacity Automatic Oil Extractor Sunflower Seed Oil Presser Alloy Steel Material

3.5t/24h Capacity Automatic Oil Extractor Sunflower Seed Oil Presser Alloy Steel Material

cold press oil extractor

small scale oil extraction machine

Place of Origin:

Henan Province, China

Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Screw Oil Making Machine
Alloy Steel
380 V
Squzzer Speed:
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Wooden Carton Customization
Delivery Time
7-10 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

Single press Screw oil pressing machinery

sunflower seeds oil pressers


sunflower seeds oil pressers has special advantages as below:

1. Make oil from seeds and nuts. Oil is for cooking and residue cake is for animal feed or fertilizer.The spiral squeezing structure can achieve high oil output, thus the oil content of the residue cake is low.
2. High working efficiency! Oil press of spiral type just need process the oil plants by one time to get the maximum oil. The cprocessing capacity is 3-5 ton per 24 hours.
3. Make high quality healthy oil! Physical squeezing craft maximally keeps the nutrients such as the protein, fatty acids and minerals, etc.No chemical substances left.
4. Long durability! All the parts are made of the most suitable material and treated with refined crafts, such as cemented quenching and tempering to increase the hardness, consequently the durability.Just need replace the wearing parts. The main machine can run for more than 10 years.
(a) 20# carbon steel is used for the press loops and press spirals. Carburization and air-hardening skills have been adopted to treat the core parts which increase the hardness and lengthen the service life.
(b) The press cage, adjusting bolt, etc are made of ductile iron, thus the hardness and durability are pleasantly high.
(c) The big gear in the generation box is m ade of high quality casting steel. Don't worry about the long term running.
5. Adopting screw squeezing structure, the squeezing power is strong and the residue oil of cake is ≤6, lower than other types of oil press. Besides, the squeeze spirals and squeeze loops can be disassembled and dismountable. When they are out of service period, users only need to replace the press loops and spirals, no need to displace the whole machine.
6. Easy for installation and assembly.


Product Description

1. YZYX90WK has function of auto controlling the temperature of the press chamber, replaced the traditional way by squeezing residue cake, which could shorten the preparation work, reduce the energy consumption and machine’s abrasion.

2.When the squeezing is suspended, the temperature can be maintained by this system.




Working principle:

Under the combined effects of several forces, such as the pressure generated as the space in the squeeze chest becoming smaller,the propulsion of the revolving spiral axes, the resistance of the multilateral arc curves on the squeeze loops, the extrusion &friction between the oil plants, oil squeezed from the oil plants comes out from the squeeze bars and the grooves of the squeezeloops. The residue is conveyed to the end of the press chest and discharges in thin strips of oil cake from the space between thecake adjuster and the loop for cake out. Then the whole separation process of oil from oil plants is completed.

Size Information

YZYX90WK oil press machine
Processing capacity(t/24h)
Residual oil of the cake(%)
Spiral axes rotate speed(r/min)
Temperature control power(kw)
Main motor power(KW)

Detailed Images

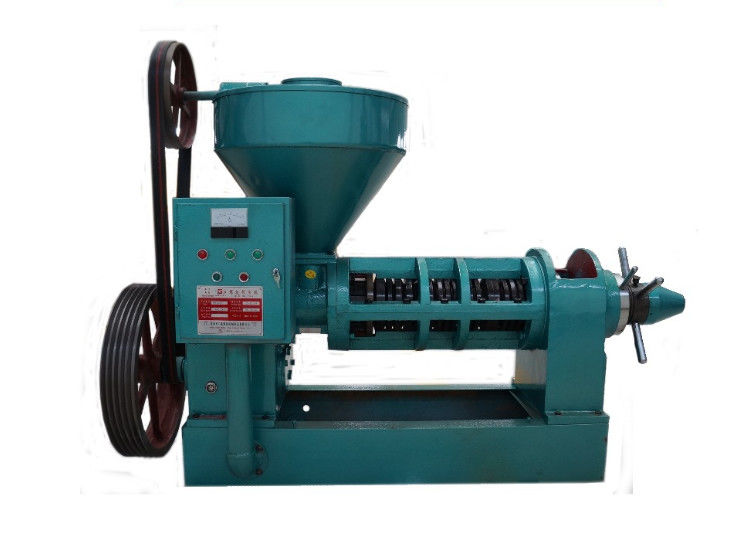

3.5t/24h Capacity Automatic Oil Extractor Sunflower Seed Oil Presser Alloy Steel Material 0


Applicable oil plants and Business:
YZYX90WK suits for :
1. More than 30 types of oil plants, such as rapeseed, cotton seed, soybean, shelled peanut, flax seed, sunflower seed and palm kernel, etc.
2. Used in oil factory, oil mill and private oil production workshop.
3. Good both for pressing raw oil material and roasted oil material.
4. Performs well both in cold pressing and hot pressing.
5. The lower residue oil of the dry cake.
3.5t/24h Capacity Automatic Oil Extractor Sunflower Seed Oil Presser Alloy Steel Material 1

Working state

3.5t/24h Capacity Automatic Oil Extractor Sunflower Seed Oil Presser Alloy Steel Material 2



After Sales Service

1.Professional engineer
Our professional engineer will test the machine in each step.
2.Before delivery
Every machine carefully adjusted before shipment.
The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)




Since1998, Henan Lewin Industry Development Co., Ltd was found officially registered under Henan Companies Registry.It is a firm which has the ability for Manufacture,Research&Development, Sale and Export. Our mainproducts are hydraulic oil press machine, spiral oil press machine, the accessory equipment for the oil press machine and other machine.
