Place of Origin:
Henan, China
Certification:
ISO,CE
Model Number:
YZYX90WK
Contact Us

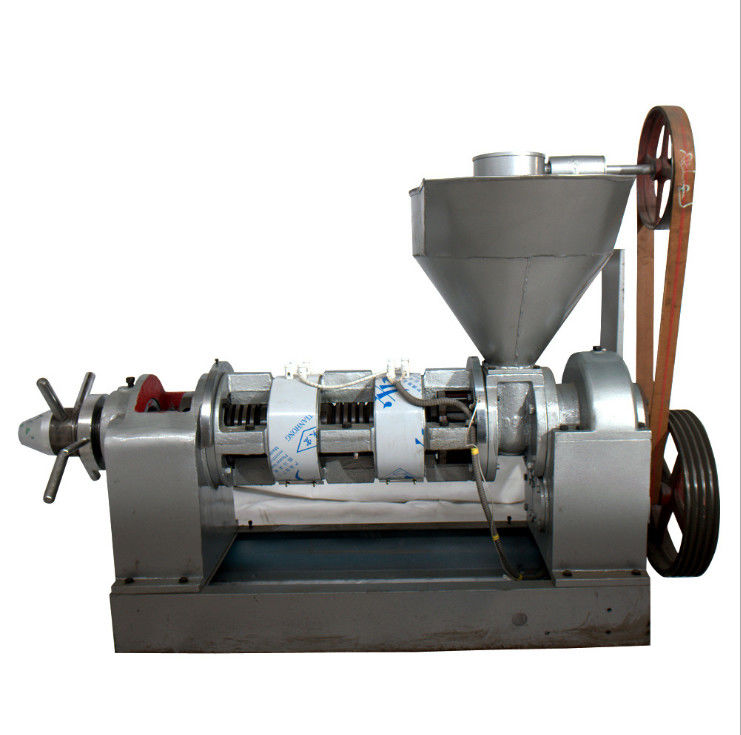

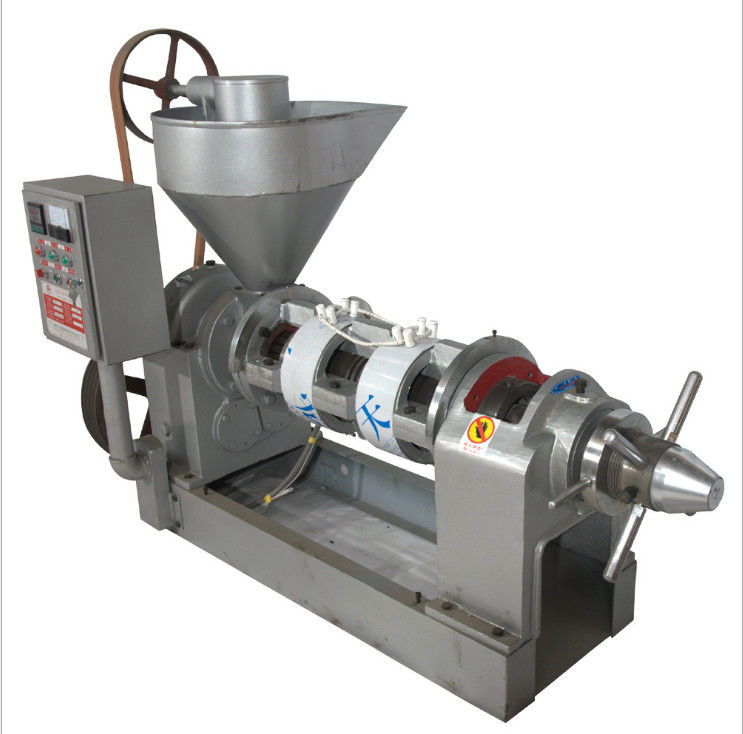

Low price oil making machine oil extractor cotton seeds oil press machine
Production description
Main Features
YZYX90WK has function of auto controlling the temperature of the press chamber, replaced the traditional way by squeezing residue
cake, which could shorten the preparation work, reduce the energy consumption and machine’s abrasion. When the squeezing is
suspended, the temperature can be maintained by this system
|
Model |
YZYX90WK |
|
Processing capacity |
3t/d |
|
Oil content of dry cakes |
≤7.8 |
|
Spiral axes rotate speed(r/min) |
32-42 |
|
Motor power (KW) |
5.5 |
|
Size (mm) |
1200*550*1000 |
|
Weight (Kg) |
285 |
Applicable oil plants and Business:
Manufacture single oil press machine screw oil extractor oil processing machine
1. More than 30 types of oil plants, such as rapeseed, cotton seed, soybean, shelled peanut, flax seed, sunflower seed and palm
kernel, etc.
2. Used in oil factory, oil mill and private oil production workshop.
3. Good both for pressing raw oil material and roasted oil material.
4. Performs well both in cold pressing and hot pressing.
5. The lower residue oil of the dry cake.
Manufacture single oil press machine screw oil extractor oil processing machine
Detailed Images
Working principle:
Under the combined effects of several forces, such as the pressure generated as the space in the squeeze chest becoming smaller,
the propulsion of the revolving spiral axes, the resistance of the multilateral arc curves on the squeeze loops, the extrusion &
friction between the oil plants, oil squeezed from the oil plants comes out from the squeeze bars and the grooves of the squeeze
loops. The residue is conveyed to the end of the press chest and discharges in thin strips of oil cake from the space between the
cake adjuster and the loop for cake out. Then the whole separation process of oil from oil plants is completed.
Manufacture single oil press machine screw oil extractor oil processing machine
Packing&Shipping
1.THE FIRST PROTECTION
Multiple protection, before the oil press machine be put into the wooden cases, it will be use plastic film cover.
2.THE SECOND PROTECTION
Then the oil press machinery will be put into the wooden cases carefully to ensure every oil presser machine is safety and perfect!
3.THE LAST DELIVERY STEP
After the machine be put into cases, our professional delivery team will send the machine to the port safetly!
After Sales Service
1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will not provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.
Manufacture single oil press machine screw oil extractor oil processing machine
Company Introduction
We have our own factory and warehouse, so we can guarantee the quality of the oil press machine, if there are any other questions
about our oil pressing machine, we can give you a best solution, in addition, We are factory direct sale, cut out the middleman,
thus makes the price lowest for our customers. so if you need, please contact us freely
