Soybean Centrifugal Oil Filtering Equipment 40 - 50kg / Batch 380v Voltage

Soybean Centrifugal Oil Filtering Equipment 40 - 50kg / Batch 380v Voltage

cooking oil filter machine

oil filtration equipment

Place of Origin:

China

Brand Name:

Lewin

Certification:

ISO

Model Number:

LF100

Contact Us

Request A Quote
Product Details
Production Name:
Factory Direct Oil Cooking Equipment Soybean Centrifugal Oil Filter Machine
Model:
LF100
Dimension:
800*700*1000mm
Weight:
200kg
Capacity:
40-50kg/batch
Power:
3 Kw
Voltage:
380v
Application:
Edible Oil
Color:
Blue Sliver/ Customized
Warranty:
1 Year
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case with film/Customized
Delivery Time
5-7 working day
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

Product Description

Factory direct oil cooking equipment soybean centrifugal oil filter machine

Centrifugal oil filter It is a method of separating suspended impurities by centrifugal force. By using the high-speed rotation of the centrifugal head, the oil, water and impurities in the lubricating oil with different degrees of contamination are quickly separated by different centrifugal forces. When the drum stops rotating, the net oil flows out from the drum for filtration purposes. The filtered oil can be tested at the time, no foaming, no overflowing



Soybean Centrifugal Oil Filtering Equipment 40 - 50kg / Batch 380v Voltage 0



working principle

Automatic centrifugal oil filterThe machine uses the principle of centrifugation to stratify different materials at high speeds of the motor. At the time of filtration, the specific gravity of the impurities in the oil is smashed at the outermost layer, and the oil is at the innermost layer.When the motor stops running, the oil will flow out and the filter residue will be attached to the wall of the inner cylinder. The machine has fast filtering speed, saving time and effort and saving electricity. No need to save consumables to replace filter cloth costs

Soybean Centrifugal Oil Filtering Equipment 40 - 50kg / Batch 380v Voltage 1



Main parameter:

1. we have two model of this oil filter machine.

2. If you have other needs, we can also customize for you.

Model LF60B LF100
Power 3kw 3kw
Voltage 380v 380v
Capacity 25-30kg/batch 40-50kg/batch
Weight 110kg 200kg
Dimension 800x800x900mm 800x700x1000mm





Vacuum oil filter is mainly used for edible oils such as peanut oil, rapeseed oil, soybean oil, corn oil and sesame oil.

Soybean Centrifugal Oil Filtering Equipment 40 - 50kg / Batch 380v Voltage 2

Advantage:

1, the filtration speed is fast, can be filtered 4-5 times per hour, can process 25-30 kg or 40-50 kg each time, easy to operate.2. Compared with other equipment, long-term use does not require any consumables, including filter cloth cleaning and filter cloth cleaning.3. Power saving, start the power supply, add the oil, rotate at high speed, use the centrifugal force generated by the drum to filter the oil, disconnect the power supply, and the net oil flows out after the drum is stationary.4, the use effect is better than all other filtering equipment, such as the trouble of replacing the filter cloth and filter cloth with the frame filter oil filter, the danger of pressure filtration overpressure detonation and the defect that the sludge is too much to open repeatedly, use this centrifugal filter The machine has no consumables to purchase, saves electricity and saves time, has good effect, high oil purity, clear color, can be directly sold in cans or directly consumed.



Soybean Centrifugal Oil Filtering Equipment 40 - 50kg / Batch 380v Voltage 3

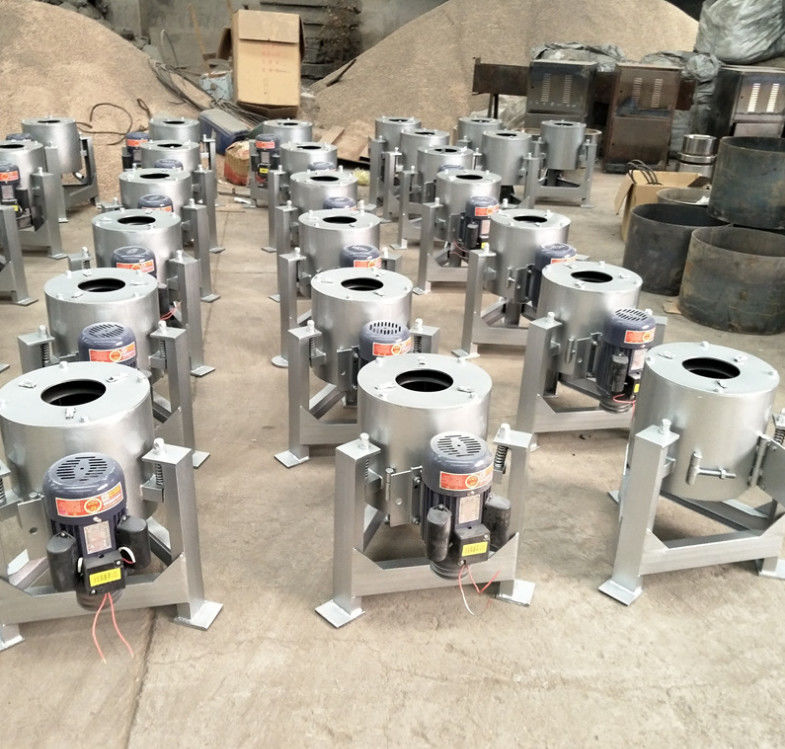

Our warehouse

We have our own factories and warehouses, we can guarantee the quality of the products, the warehouse has a large inventory, if you have any needs, you can contact us at any time, we will provide you with the best quality and service.

Soybean Centrifugal Oil Filtering Equipment 40 - 50kg / Batch 380v Voltage 4



Packaging & Shipping

 We use a wooden box to wrap the machine, which is wrapped in a layer of film and then placed in a wooden box to prevent the machine from wearing out. If there are other packaging requirements, we can customize it for you.

Soybean Centrifugal Oil Filtering Equipment 40 - 50kg / Batch 380v Voltage 5

FAQ

1. What should I do, if I do not know how to use the model?
We have machine operation video and paper manual for you study before putting into usage.

2. Do I need assemble the machine when it reach to my place?
No need, the machine is installed before shipment.

3. How to choose the suitable model for my business?
Tell us your requirement for machine and our sales team will work with engineer to outline the best model for you.

4.How long is the delivery time?
For normal orders, we can send within 5 days after we get the deposit. If it is a very large order, the delivery time may be a little longer.

5. Does your factory accept customization?
As a professional manufacturer, we can do almost any kind of customization
