Place of Origin:
Henan Province, China
Brand Name:
Lewin
Certification:
CE ISO
Model Number:
6YL-130
Contact Us

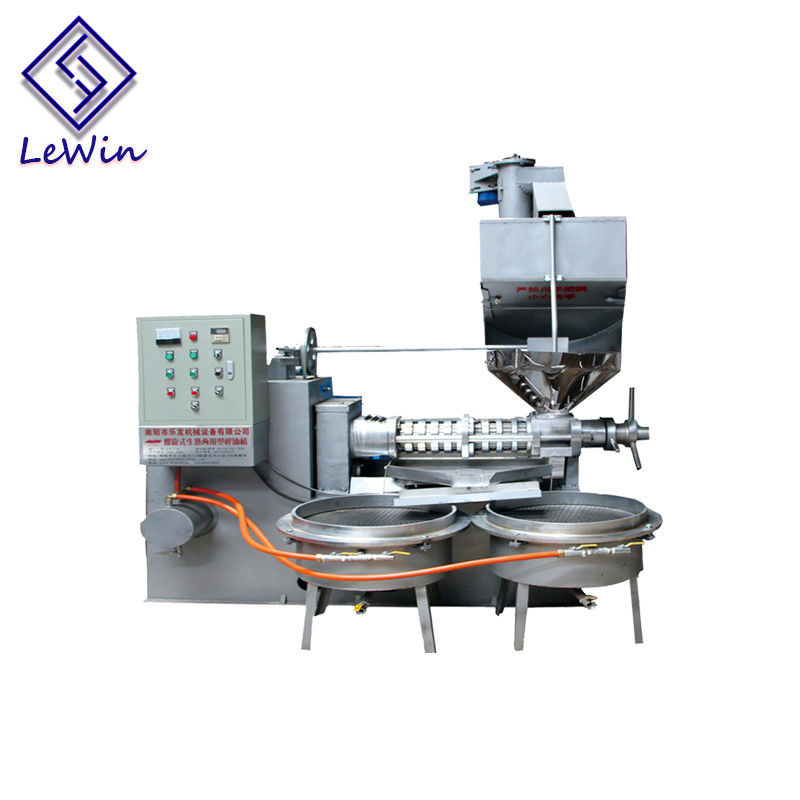

1. The Fully Automatic Spiral Oil Press Machine is a new research improvement product.
2. The machine can be squeezed more, saving time, effort and space. It is easy to operate so that one person can operate it.
3. It can set the heating temperature, directly filter while pressing and has high oil yield and pure oil.
4. This machine can work continuously for 24 hours. The service life of this machine is ten years or longer.
5. The L shape of oil cake feeding system can directly press the oil cake twice.
Characters:
1. Stable performance
The main components of our machines are produced by ourselves in order to guarantee the oil rate and the quality of the machine.
2. Oil pure and fragrant
The oil filter is dense that the oil can be filtered clean.
3. High oil yield
The diameter of the spiral squeezer is longer than other similar products and the squeezer speed is low so that the raw material can be pressed clean.
4. Saving time and effort
The L shape of oil cake feeding system can directly press the oil cake twice.
5. Temperature Control System
The temperature of the oil is automatically temperature controlled to improve the processing speed of the oil, and the low temperature environment can be produced normally.
Working priciple:
The working principle is that the oil is extruded from the material embryo and discharged from the slots and oil troughs of the strip and circle rows by the continuous pushing of the material embryo in the squeezing chamber and the change of the space volume of the squeezing chamber from large to small, and the oil can be directly eaten in a barrel after deep filtration of the oil tank.
Technical parameters of oil presser:
Model | 6YL-120 | 6YL-130 | 6YL-150 | 6YL-160 | 6YL-180 |
Weight | 1200 kg | 1600 kg | 1800 kg | 1900 kg | 1980 kg |
Vacuum power | 1.1 kw | 1.1 kw | 2.2 kw | 2.2 kw | 2.2 kw |
3phase | 15 kw | 22 kw | 30kw | 30 kw | 37 kw |
Squeezer speed | 100-130 | 100-130 | 100-130 | 100-130 | 100-130 |
Capacity(kg/h) | 120-160 | 180-300 | 220-450 | 300-600 | 400-750 |
Dimension(mm) | 2000*1600*2700 | 2150*1600*2700 | 2550*1800*2700 | 2650*1900*2700 | 2700*2000*2700 |
Detailed images
Parts of high quality oil presser:
Seeds application of screw oil making machine
If you want to process other special raw material, please cantact us to ensure.
Workflow
Packing & shipping
We use strong wooden case to ensure the safety of your goods in transit.
Our service
Provide quality service
1.Professional engineer
Our professional engineer will test the machine in each step.
2.Specialist manufacture
Every machine carefully adjusted before shipment.
3.After-service
The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
Company information
We have our factory, so we can provide product with the best price and after-sale service.
Since1998, Henan Lewin Industry Development Co., Ltd was found officially registered under Henan Companies Registry.It is a firm which has the ability for Manufacture,Research&Development, Sale and
Export. Our mainproducts are hydraulic oil press machine, spiral oil press machine, the accessory equipment for the oil press machine and other machine.
