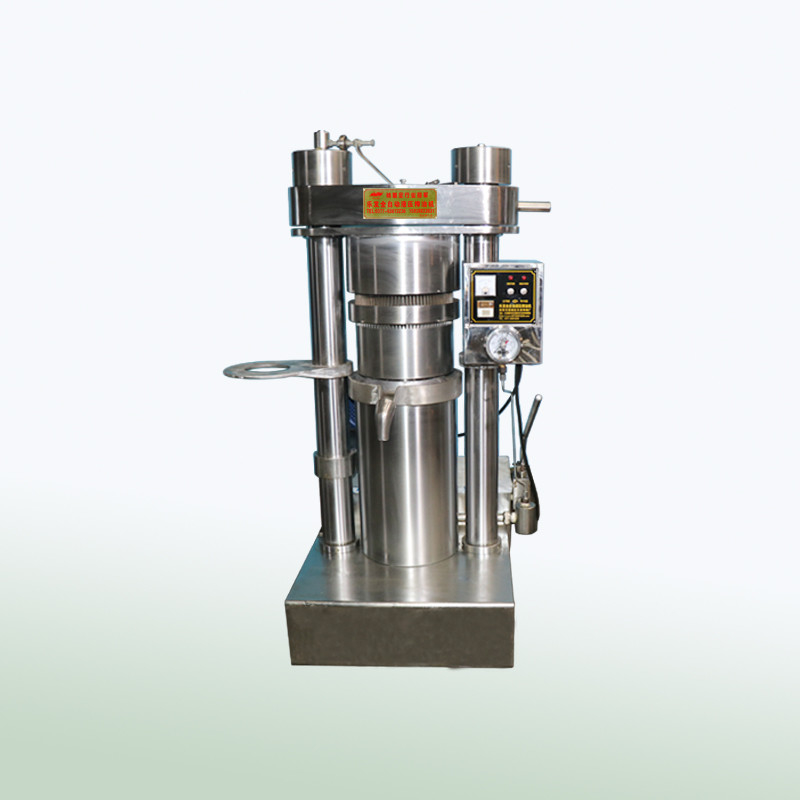

Lewin hydraulic oil presser machinery coconut cold oil making machine equipment
Production details:
1. Lewin oil presser machinery with advanced manufacture technology, which is economic and environmental protection, and durable performance; It brings High oil output, pure oil, the final oil can reach to edible oil grade.
2. The machine max working pressure can reach to 60Mpa,higher than market machines(the normal is 45Mpa to 55Mpa) , this way can press material evenly so that provide higher oil yield.
3. Internal temperature control parts to solve the problem of low oil yield in winter (usually the machine's oil yield will be lower in winter). And if you want to cold press, you can keep the heating switch off.
4. The precision instrument panel monitors the temperature and pressure at any time,and operates simply.
Parameters of different models
This coconut cold oil making machine has a variety of models, according to the demand of production, you can choose the right machine, and contact us for a better quotation
| Model | Pressure | Power/KW | Capacity | Dimension/M | Weight/Kg |
| 6YY-185 | 60Mpa | 1.1 | 4kg /batch | 0.6*0.88*1.15 | 590kg |
| 6YY-230A | 60Mpa | 1.1 | 8.5kg /batch | 0.67*0.95*1.46 | 924kg |
| 6YY-230B | 60Mpa | 1.1 | 9.5kg /batch | 0.67*0.95*1.56 | 950kg |
| 6YY-250 | 60Mpa | 1.1 | 11kg /batch | 0.71*0.95*1.56 | 1070kg |
| 6YY-270 | 60Mpa | 2.2 | 13.5kg /batch | 0.75*1.01*1.64 | 1230kg |
| 6YY-300 | 60Mpa | 2.2 | 16kg /batch | 1*1.1*1.66 | 1600kg |
| 6YY-335 | 60Mpa | 2.2 | 20kg /batch | 1.1*1.24*1.73 | 1750kg |
| 6YY-355 | 60Mpa | 3.0 | 23kg /batch | 1.16*1.2*1.81 | 2350kg |
Operating principle
The operate principle is that you put the oil raw material into the pressing chamber of the hydraulic pressers and close the top plate. It is easy to operate. Turning on the machine, then it being driven up by the oil cylinder piston, the oil will be squeezed out from the oil line as the machine boosts pressure.
Detailed--Coconut cold oil making machine
Materials
this machine could use for many raw materials like the below picture.
Samples of oil
clean oil samples from the hydraulic machine. hot press and cold press are different color.

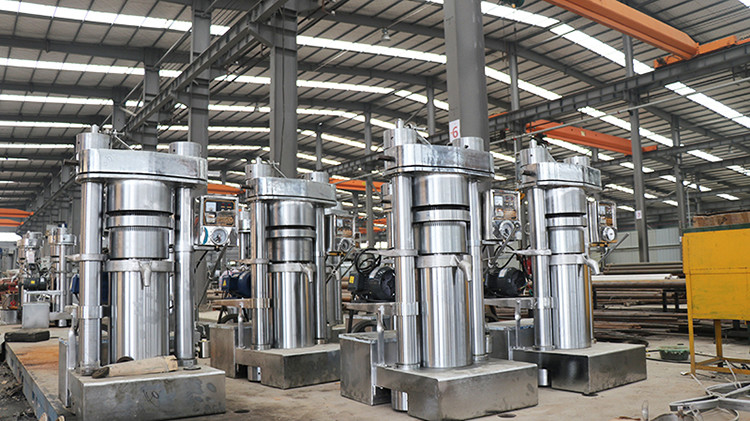

Our factory
Lewin oil press machine company is a leading manufacturer of oil machine in China, we located in Nanyang city, Henan Province.
Welcome every friend to visit our factory.
