High Oil Yield Camellia Oil Pressing Machine Castor Extractor Cold Press

High Oil Yield Camellia Oil Pressing Machine Castor Extractor Cold Press

High Yield Camellia Oil Pressing Machine

6YY- 250 Camellia Oil Pressing Machine

6YY- 250 Castor Extractor Cold Press

Place of Origin:

Henan , China

Brand Name:

LEWIN Machinery

Certification:

CE certification

Model Number:

6YY- 250

Contact Us

Request A Quote
Product Details
Product Name:
High Oil Yield Camellia Oil Pressing Machine Castor Extractor Cold Press
Castor Oil Extractor Material:
Alloy Material
Model Of Castor Oil Extractor Cold Press:
6YY - 250
Voltage Of Camellia Oil Pressing Machine:
380V / 220V
Weight Of Castor Exractor Cold Press:
1070 Kg
Max Pressure:
60 Mpa
Oil Cake Diameter:
2.5 M
Main Power:
1.1 KW
Oil Yield:
96%
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$ 4500 per set
Packaging Details
Wooden case package / Customized
Delivery Time
7-10 working days
Payment Terms
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

High oil yield camellia oil pressing machine castor extractor cold press


I. High oil yield camellia oil pressing machine:

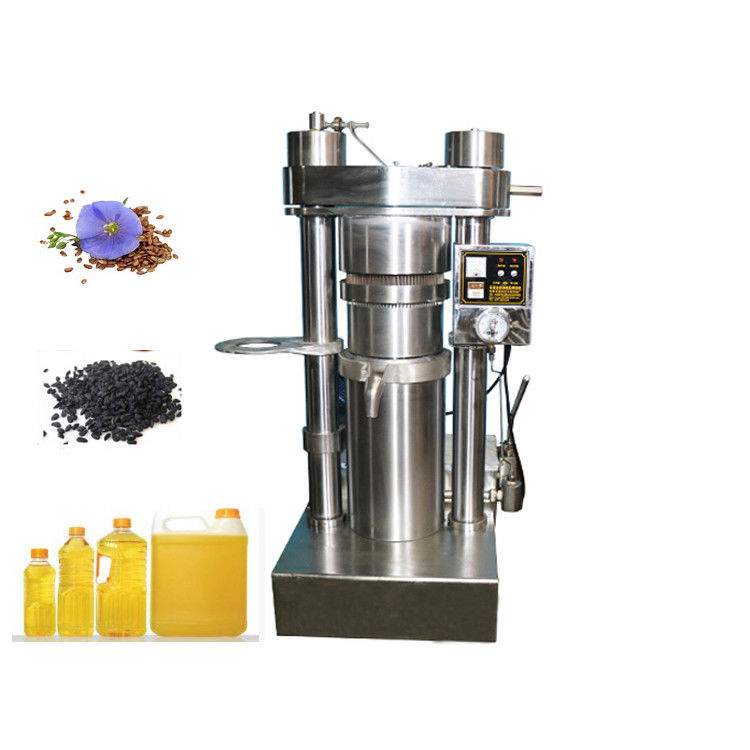

High Oil Yield Camellia Oil Pressing Machine Castor Extractor Cold Press 0

1. Our high oil yield camellia oil pressing machine can press kinds of materials, like almond, hazelnut, pinenut, avocado and etc.



2. Castor oil extractor cold press 60mpa is small, take small area.



3. The castor oil extractor cold press is Automatic operation, operation is simple, 1 person can operate 3-4 sets machine.



4. High oil yield camellia oil pressing machine adopts alloy steel material, the quality will be higher.



High oil yield camellia oil pressing machine function:

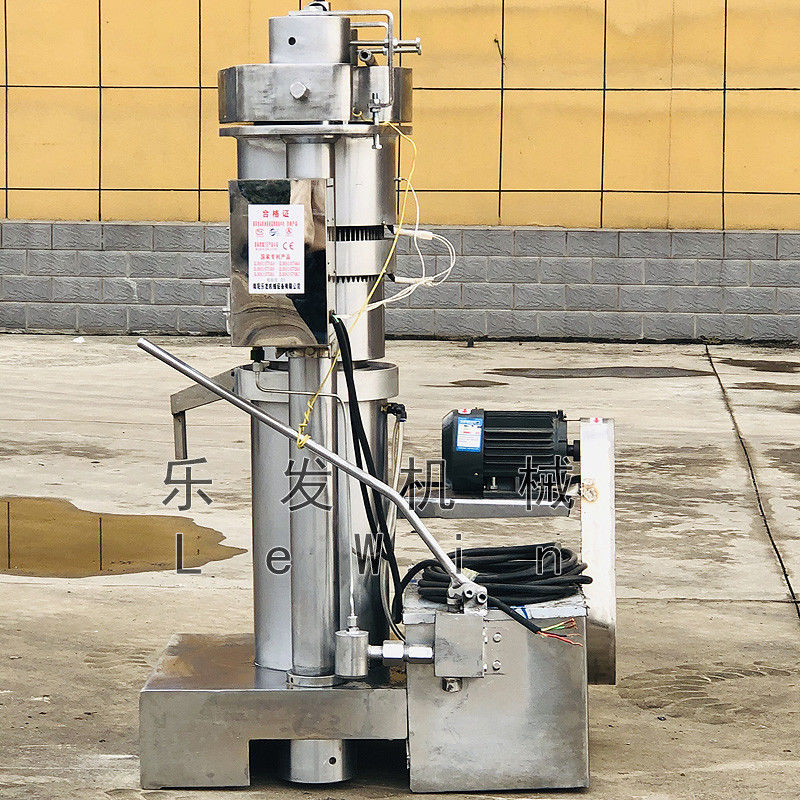

High Oil Yield Camellia Oil Pressing Machine Castor Extractor Cold Press 1

Our high oil yield camellia oil pressing machine have big screw, working table, pressing kettle, control panel, pressure gauge, pressure release valve, hydraulic oil tank.



The hydraulic oil tank is the most important part, it's heart of oil extracting machine 60Mpa.





Information of castor oil extractor cold press:

Model of oil machine
Capacity
(kg/batch)
Weight
(kg)
Motor Power
Working pressure
Dimension(m)
Residual oil
6YY-185
4
590
1.1 kw
60 MPa
0.6*0.88*1.15
≤5%
6YY-230 A
8.5
924
1.1 kw
60 MPa
0.67*0.95*1.46
≤5%
6YY-230 B
9.5
950
1.1 kw
60 MPa
0.67*0.95*1.56
≤5%
6YY-250
11
1070
1.1 kw
60 MPa
0.71*0.95*1.56
≤5%
6YY-270
13.5
1230
2.2 kw
60 MPa
0.75*1.01*.164
≤5%
6YY-300
16
1600
2.2 kw
60 MPa
1*1.1*1.66
≤5%
6YY-335
20
1750
2.2 kw
60 MPa
1.1*.124*1.73
≤5%
6YY-355
23
2350
3.0 kw
60 MPa
1.16*1.2*1.81
≤5%

II. High oil yield camallia oil pressing machine details:

High Oil Yield Camellia Oil Pressing Machine Castor Extractor Cold Press 2

Quality assured of high oil yield camellia oil pressing machine:

1. Large screw of castor oil extractor cold press: This part use Wuyang steel, quality and hardness is high, it's ensure the long use life and safety.



2. Pressure gauge with electric contact: The part can control machine working pressure, it's also safety part.



3. Motor shield: The motor shield can avoid damage to motor from outside.



High Oil Yield Camellia Oil Pressing Machine Castor Extractor Cold Press 3High Oil Yield Camellia Oil Pressing Machine Castor Extractor Cold Press 4

    Large screw                                                  Pressure gauge with electric contact





Why our castor oil extractor cold press is high oil yield:

1Oil line: The oil line of our castor oil extractor cold press is smooth, there will be no residual.



2. Pressure gague: Working pressure is high, so it can offer the higher power to press the material to ensure the high oil yield.



3. Solid piston: It can press material clean to get more oil.



4. Hydraulic tank: It can provide the high power to press the raw material to ensure the high oil yield.



High Oil Yield Camellia Oil Pressing Machine Castor Extractor Cold Press 5High Oil Yield Camellia Oil Pressing Machine Castor Extractor Cold Press 6

                             Smooth oil line                                            High working pressure



High Oil Yield Camellia Oil Pressing Machine Castor Extractor Cold Press 7High Oil Yield Camellia Oil Pressing Machine Castor Extractor Cold Press 8

                             Solid piston                                                   Hydraulic tank



III. Company
High Oil Yield Camellia Oil Pressing Machine Castor Extractor Cold Press 9
High Oil Yield Camellia Oil Pressing Machine Castor Extractor Cold Press 10



IV. Service we can offered you
1.Offer the most suitable solution for you.


2. Visiting our factory.


3. Testing machine for you.


4. Always online to help you.


5. Quickly delivery.


6. We can change voltage if you need.


7. Offer Manual, operation video and install video.




V. Packing & Delivery



1. Packing:

We have professional packing team, they will use wooden case and film to pack.

High Oil Yield Camellia Oil Pressing Machine Castor Extractor Cold Press 11




VI. Generally question:



Q: What is different of cold and hot press

A: Cold press is no roasting before pressing, the oil quality is higher. Hot press is roasting before pressing, the oil yield is higher.



Q: What do you support the MOQ?

A: MOQ is 1 set.



Q: How about your machine warranty

A: We offer 1 year warranty. We can offer you video- call service.


Q: Can this machine work with different materials?
A: Yes, it can work with different materials.



Q: If I don't know how to operate machine, what should I do?

A: We can offer you manual and oepration video. We also can offer you online service.
