Place of Origin:
Henan Province
Brand Name:
Lewin
Certification:
CE ISO
Model Number:
6YY-185
Contact Us

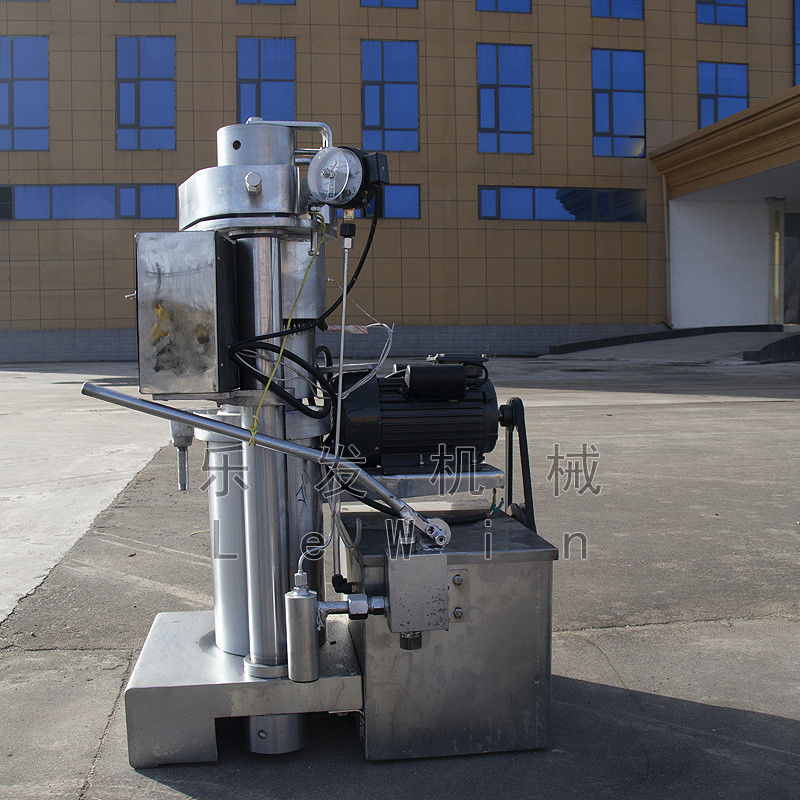

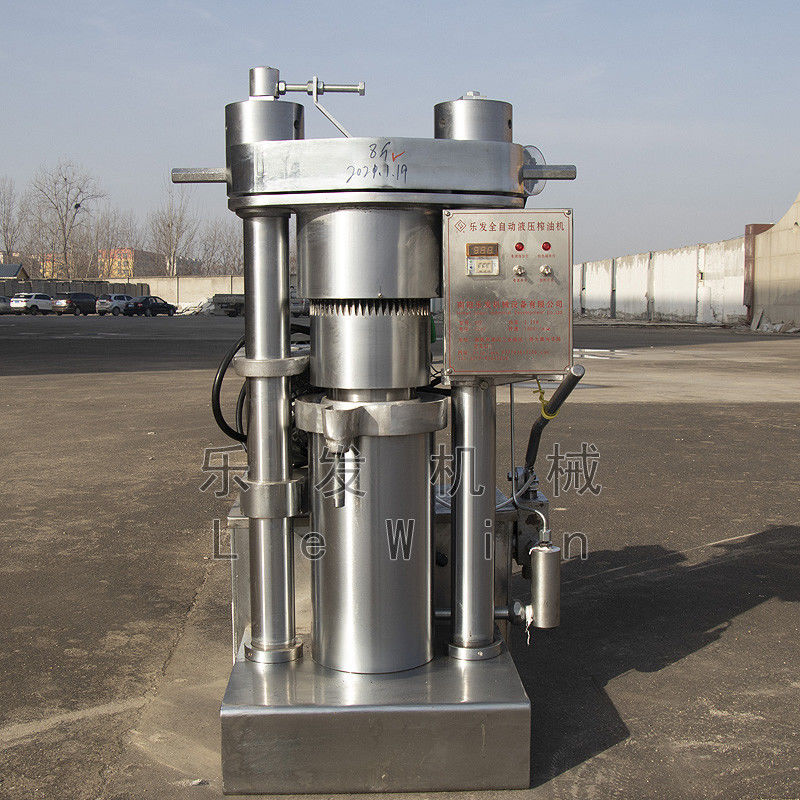

coconut oil processing machine
1.Our YY series automatic hydraulic oil press machine has many advantages: easy to operate, high oil press rate, rare to replace wearing parts.
2.This oil press is the most advanced equipment which can replace of the manual operation of the sesame oil.
3.This machine can press at least 2 to 23 kilograms per batch, the time is about 4 to 15 minutes.
Advantages:
1.professional research and development, complete model, advanced manufacturing technology, beautiful appearance.
2.High oil yield, pure oil, no filtration.
3.The oil is squeezed once, the speed is fast, and the labor intensity is small.
4.Fast purification, stable and durable performance.
5.It has high pressure, the pressure of our machine is 60Mpa, higher than other machine(the normal is 45Mpa to 55Mpa), provide higher oil yield.
Operating priciple:
The working principle is that the when the oil material is put into the assembly of the press boring, then it being driven up by the oil cylinder piston, oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.
Technical parameters of oil presser:
Model | 6YY-185 | 6YY-250 | 6YY-270 | 6YY-300 | 6YY-335 |
Weight | 550kg | 1060kg | 1230kg | 1600kg | 1750kg |
vacuum Power | 1.1kw | 1.1kw | 2.2kw | 2.2kw | 2.2kw |
3phase | 2.2kw | 2.2kw | 4.0kw | 4.8kw | 4.8kw |
Working pressure | 60MPa | 60MPa | 60MPa | 60MPa | 60MPa |
Capacity (Kg/h) | 4kg/batch | 11kg/batch | 13.5kg/batch | 16kg/batch | 20kg/batch |
Dimension(mm) |
600*880* 1150 |
710*950*
1560
|
750*1010*
1640
|
1000*1100*
1660
|
1100*1240*
1730
|
Seeds application of oil making machine
1.It is suitable for direct processing of rape, peanut, sunflower seed, sesame,
palm,almond,perilla,olive and other oil crops.
2.If you want to process other special raw material, please cantact us to ensure.
