Place of Origin:
Henan , China
Brand Name:
Lewin
Certification:
CE certification
Model Number:
6YY- 250
Contact Us

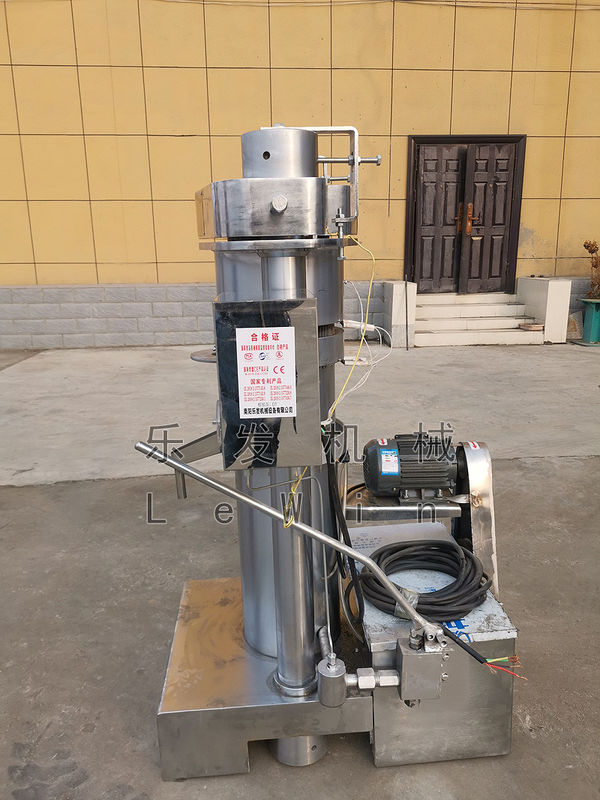

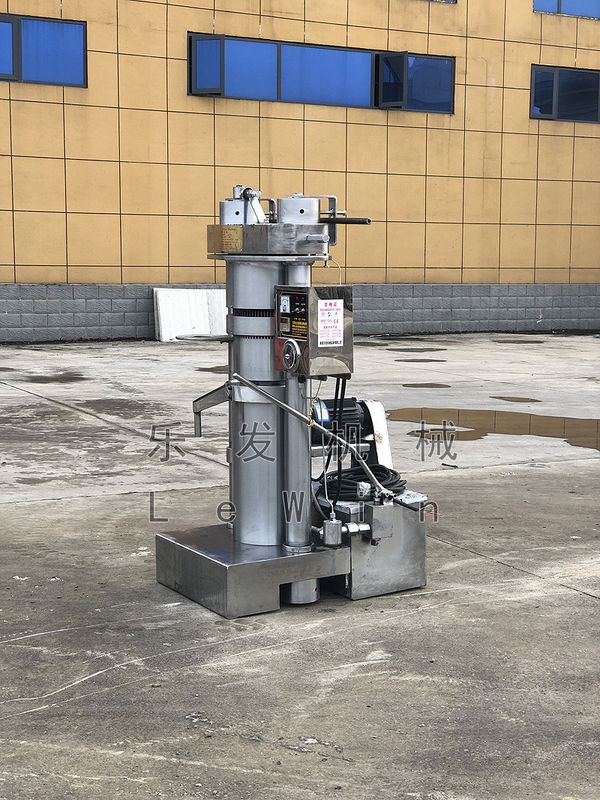

I. Virgin coconut oil extraction machine:
Hydraulic oil press machine is an oil extraction machine that combines the traditional oil pressing method and modern oil extraction technology. The whole operation process is very convenient and easy. The pretreated oilseeds are loaded into the cylinder for oil pressing. Then, the oil is extracted out from the seeds about 5~7 minutes. Importantly, the oil pressing process is visible for users, so there can't be any additives during the seeds oil extraction process.
With mechanical-electrical integration and automation design, hydraulic oil press is mainly composed of Screw Nut, Handle, Top, Barrel, Cylinder, Pressure Gauge, Sump, etc. The design of the hydraulic oil press machine is simple and scientific, which is conducive to easy operation, high oil yield. In actual operation, the hydraulic oil press machine requires less maintenance since it has less quick-wear parts.
Technology Parameter
|
Modle
|
Capacity
(kg/batch)
|
Weight
(kg)
|
Power
|
Working pressure
|
Dimension(m)
|
Residual oil
|
|
6YY-185
|
4
|
590
|
1.1 kw
|
60 MPa
|
0.6*0.88*1.15
|
≤5%
|
|
6YY-230 A
|
8.5
|
924
|
1.1 kw
|
60 MPa
|
0.67*0.95*1.46
|
≤5%
|
|
6YY-230 B
|
9.5
|
950
|
1.1 kw
|
60 MPa
|
0.67*0.95*1.56
|
≤5%
|
|
6YY-250
|
11
|
1070
|
1.1 kw
|
60 MPa
|
0.71*0.95*1.56
|
≤5%
|
|
6YY-270
|
13.5
|
1230
|
2.2 kw
|
60 MPa
|
0.75*1.01*.164
|
≤5%
|
|
6YY-300
|
16
|
1600
|
2.2 kw
|
60 MPa
|
1*1.1*1.66
|
≤5%
|
|
6YY-335
|
20
|
1750
|
2.2 kw
|
60 MPa
|
1.1*.124*1.73
|
≤5%
|
|
6YY-355
|
23
|
2350
|
3.0 kw
|
60 MPa
|
1.16*1.2*1.81
|
≤5%
|
Pressed oil by our machine
IV. Service
1.Offer the most suitable solution for you.
2. Visiting our factory.
3. Testing machine for you.
4. Always online to help you.
5. Delivery products immediately after receipt tje payment.
6. Change voltage according to your needs.
7. Operation manual, operation video and install video.
