Place of Origin:
Henan , China
Brand Name:
Lewin oil press machine
Certification:
CE certification and ISO certification
Model Number:
6YY- 250
Contact Us

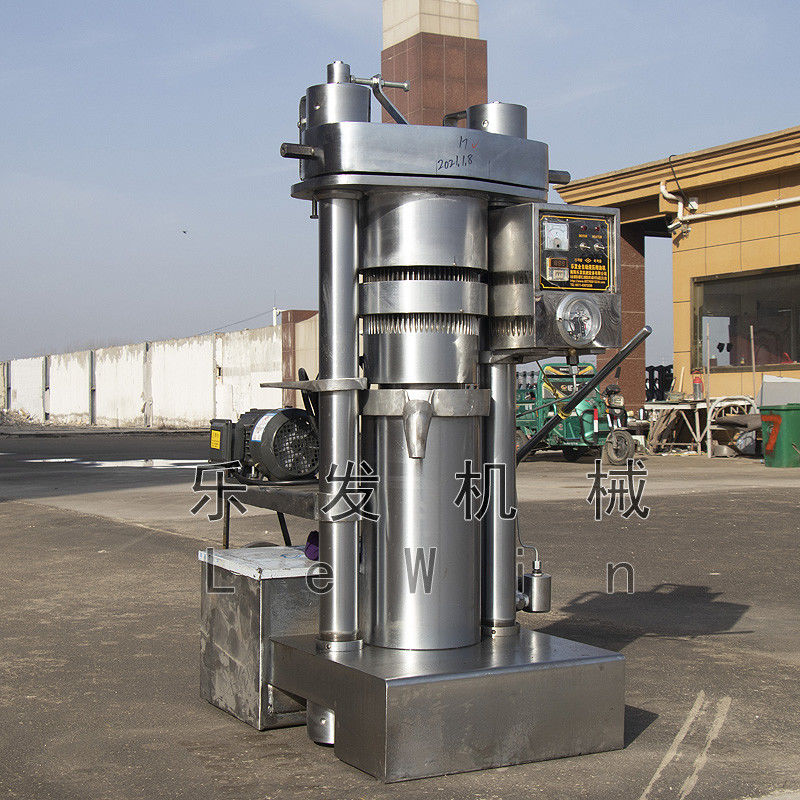

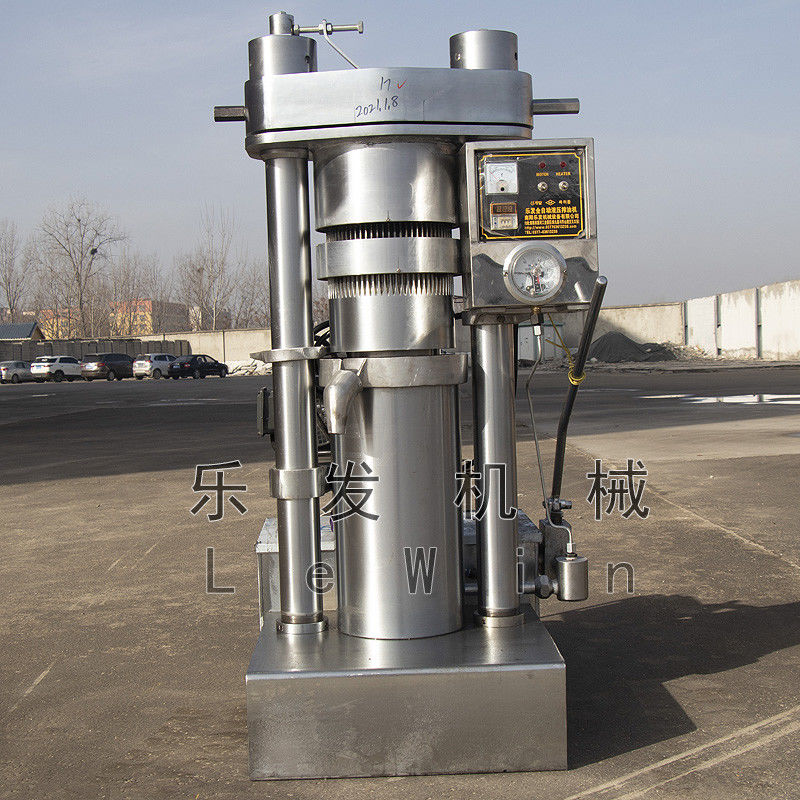

Information Sesame oil expeller machine:
1. Sesame oil expeller machine is automatically machine, only operate 2 button, it can work automatically.
2. Mustard oil pressing machine is high quality, it use alloy steel, it can extend the use life of machine.
3. Machine part made by ourselves, we can make sure the quality of machine.
4. Oil expeller machine can cold and hot press kinds of materials, like sesame, mustard, avocado, coconut and etc.
5. This machine only take small area, it's suitable for small oil factory and big oil factory.
Structure of sesame oil expeller machine
- With mechanical-electrical integration and automation design, hydraulic oil press is mainly includes: Big screw, Top roof, Working table,Pressing kettle, Cylinder, Pressure Gauge, Handle, Hydraulic tank, etc.
- The most important part is hydraulic tank, this part need offer power to machine, it's heart of this oil press machine.
- -The design of the sesame oil expeller machine is simple and scientific, which is conducive to convenient operation and high oil output rate. In actual operation, hydraulic oil presses require less maintenance due to fewer wearing parts.
Technology Parameter
|
Model
|
Capacity
(kg/batch)
|
Weight
(kg)
|
Power
|
Working pressure
|
Dimension(m)
|
Residual oil
|
|
6YY-185
|
4
|
590
|
1.1 kw
|
60 MPa
|
0.6*0.88*1.15
|
≤5%
|
|
6YY-230 A
|
8.5
|
924
|
1.1 kw
|
60 MPa
|
0.67*0.95*1.46
|
≤5%
|
|
6YY-230 B
|
9.5
|
950
|
1.1 kw
|
60 MPa
|
0.67*0.95*1.56
|
≤5%
|
|
6YY-250
|
11
|
1070
|
1.1 kw
|
60 MPa
|
0.71*0.95*1.56
|
≤5%
|
|
6YY-270
|
13.5
|
1230
|
2.2 kw
|
60 MPa
|
0.75*1.01*.164
|
≤5%
|
|
6YY-300
|
16
|
1600
|
2.2 kw
|
60 MPa
|
1*1.1*1.66
|
≤5%
|
|
6YY-335
|
20
|
1750
|
2.2 kw
|
60 MPa
|
1.1*.124*1.73
|
≤5%
|
|
6YY-355
|
23
|
2350
|
3.0 kw
|
60 MPa
|
1.16*1.2*1.81
|
≤5%
|
Pressed sesame oil by our machine
IV. Service
1.Offer the best solution for customer.
2. Customer can visit our factory.
3. Testing machine.
4. Always online to help you.( 7*24 hours)
5. Delivery products immediately after receipt tje payment.
6. Change voltage according to your needs.
7. Operation manual, operation video and install video.
