Place of Origin:
Henan, China(Mainland)
Brand Name:
Lewin
Certification:
ISO CE
Model Number:
Oil seal
Contact Us
Hydraulic oil press machine spare parts oil seal parts inside machine
Product Description:
About our machine's consumables:
1. Oil seal
2. Oil- rings
3. Heating tube
4. Cotton pad
5. Pressure gauge with electric contact.
How about the function of the oil seal:
1. Oil seal is inside the machine, it can ensure the hydraulic oil does not leak to the machine.
Becuse our machine' s working pressure is high- 60Mpa, if the hydraulic oil into the hydraulic kettle, the material will be contaminated, it will has an effect on oil. So the oil seal is important for this machine.
2. The pressure is higher than other similar machines, so this part can protect the hydraulic kettel to extended the service life of the hydraulic kettle.

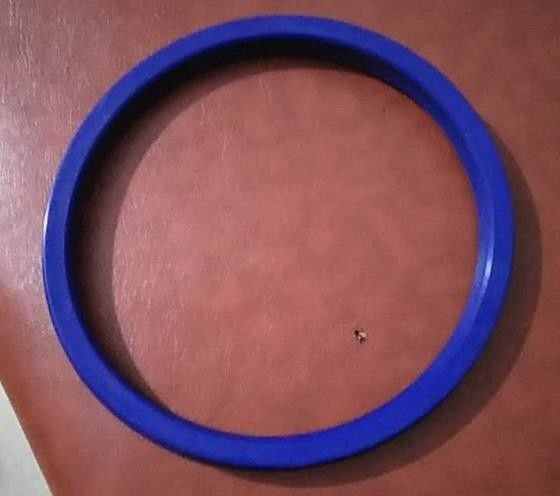

Oil seal is hydraulic oil machine parts, it's inside of that machine, like this picture, it's in the hydraulic kettle.
How about the use life:
The use life is 1-3 years, if you don't offen use this machine, you can check it per year.
Small model need the smaller oil seal, bigger model need big oil seal.
About our model:
| Model | Capacity |
Working Pressure |
Power | Voltage | Weight | Oil cake diameter | Dimension |
| 6YY-185 | 4kg/batch | 60Mpa | 1.1KW | 220V | 590kg | 185mm | 0.6*0.88*1.15m |
| 6YY-230A | 8kg/batch | 60Mpa | 1.1KW | 220V | 924kg | 230mm | 0.67*0.95*1.46m |
| 6YY-230B | 9kg/batch | 60Mpa | 1.1KW | 220V | 950kg | 230mm | 0.67*0.95*1.56m |
| 6YY-250 | 11kg/batch | 60Mpa | 1.1KW | 220V | 1070kg | 250mm | 0.71*0.95*1.56m |
| 6YY-270 | 13kg/batch | 60Mpa | 2.2KW | 220V | 1230kg | 270mm | 0.75*1.01*1.64m |
| 6YY-300 | 16kg/batch | 60Mpa | 2.2KW | 220V | 1600kg | 300mm | 1*1.1*1.66m |
| 6YY-335 | 20kg/batch | 60Mpa | 2.2KW | 220V | 1750kg | 335mm | 1.1*1.24*1.73m |
| 6YY-355 | 23kg/batch | 60Mpa | 3.0KW | 220V | 2350kg | 355mm | 1.16*1.2*1.81m |
Delivery:
If you purchase it with our machine, it will ship to your port with our machine together.
If you just purchase this part, we can delivery it by air. The buyer pay the delivery cost.
The delivery time is about 7-30 days, because thers is different delivery method and different country.
If you have any questions, please contact us freely. We will reply you within 24 hours, we can offer you the solution within 48 hours.
