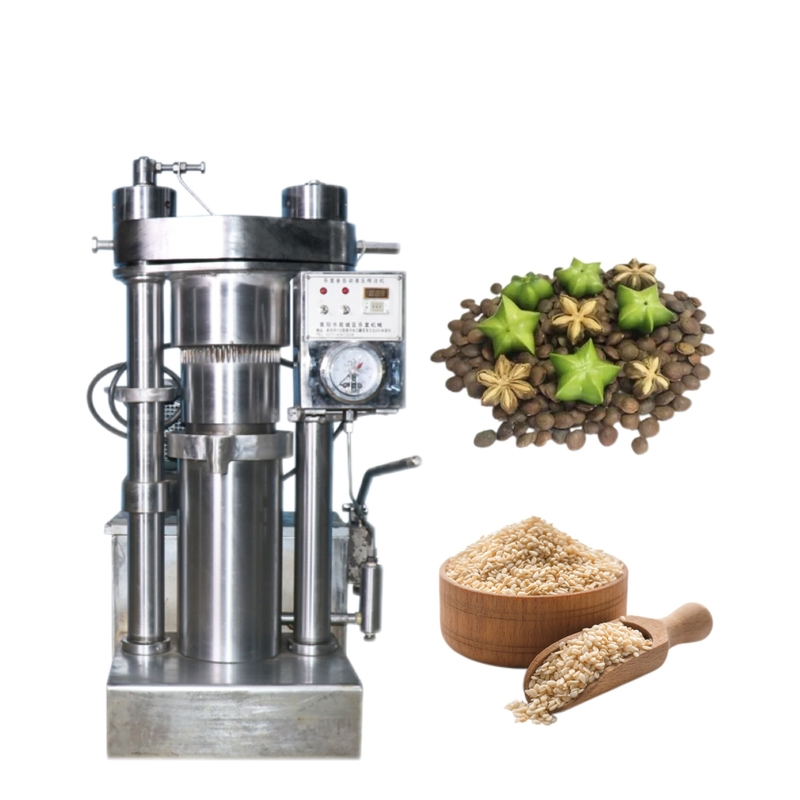

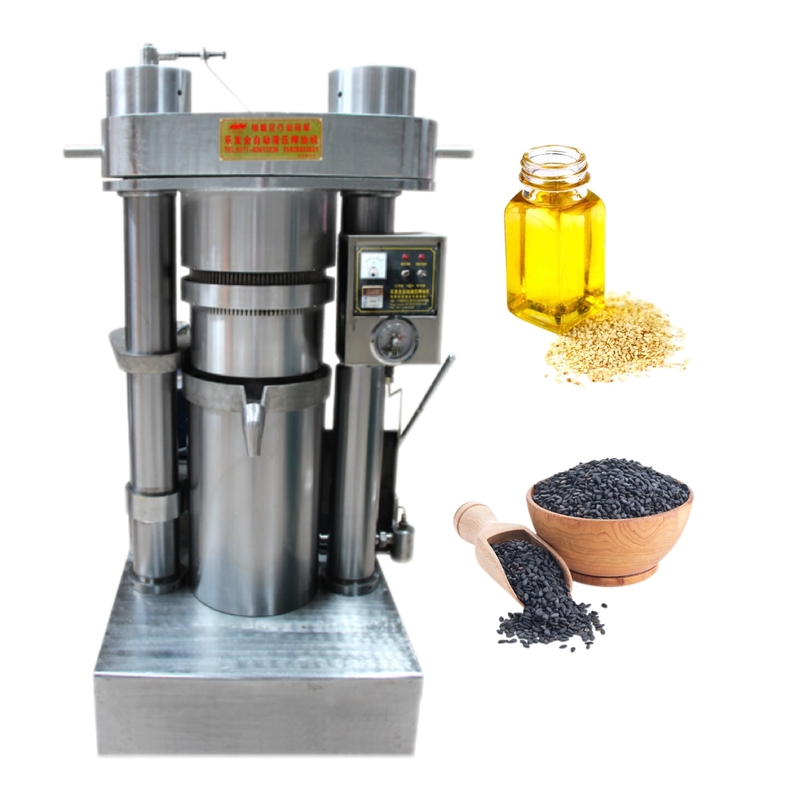

1.1 Kw Automatic Oil Press Machine , Alloy Material Sesame Oil Press Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Wooden case package / Customized Delivery Time : 7-10 working days
Payment Terms : T/T, D/A, D/P, L/C, Western Union, MoneyGram Supply Ability : 100 sets per month
Place of Origin: Henan , China Brand Name: Lewin
Certification: ISO CE Model Number: 6YY- 230A

Detail Information

Name: Hydraulic Oil Pressing Machine Model: 6YY - 230 A
Usage: Cold & Hot Pressing Suit For: Kinds Of Oil Seeds
Working Pressure: 60 Mpa Material: Kinds Of Seeds
Weight: 924 Kg Voltage: 380V
Power: 2.2 Kw / 1.1 Kw Key Word: Almond Oil Making Machine
HS Code: 8479200000
High Light:

cold press expeller machine

,

hydraulic oil extractor

Product Description

I. Production description


1.1 kw sesame oil pressing machine use alloy material with high pressure

1.1 Kw Automatic Oil Press Machine , Alloy Material Sesame Oil Press Machine 0
Our 6YY-230A oil press machine:

1. This hydraulic oil press machine adopts automatic control system, hydaulic pressure control system and temperature control system.
2. This machine can work with many kinds of oil seeds well.
3. This machine can work continuously for 24 hours. It can squeeze 8 kilogram per batch, the perssing time is 8-15 minutes.
4. The pressure of our machine is 60Mpa, higher than other machine(the normal is 45Mpa to 55Mpa), provide higher oil yield.
5. The material of this machine is alloy that can make sure the safety.

Appliction range
This machine can cold or hot press various of oil seeds, includes sesame, peanut, castor, walnut, camellia, olive, palm, avocado, sunflower, rapeseed, ect.
1.1 Kw Automatic Oil Press Machine , Alloy Material Sesame Oil Press Machine 1


Parameter:

ModelCapacity(kg/batch)Weight(kg)Working pressurepower(kw)Dimension(mm)oil cake diameter
YY-185459060MPa2.2/1.1600*880*1150180mm
YY230(A)8.592460MPa2.2/1.1670*950*1460230mm
YY-230(B)9.595060MPa2.2/1.1670*950*1560230mm
YY-25011107060MPa2.2/1.1710*950*1560250mm
YY-27013.5123060MPa4.0/2.2750*1010*1640270mm
YY-30016160060MPa4.0/2.21000*1100*1660300mm
YY-33520175060MPa4.0/2.21100*1240*1730355mm
YY-35523235060MPa5.0/3.01160*1200*1810355mm

II. Work principle:

This machine is powered by the hydraulic tank that pushs the piston up to squeeze the raw material in the press kettle.
1.1 Kw Automatic Oil Press Machine , Alloy Material Sesame Oil Press Machine 2

Workflow:

1.1 Kw Automatic Oil Press Machine , Alloy Material Sesame Oil Press Machine 3
Operation step:
1.1 Kw Automatic Oil Press Machine , Alloy Material Sesame Oil Press Machine 4



III. Our advantages

1.1 Kw Automatic Oil Press Machine , Alloy Material Sesame Oil Press Machine 5
1.1 Kw Automatic Oil Press Machine , Alloy Material Sesame Oil Press Machine 6




IV. Packing & Delivery

Packing:
1. Standard export wooden case package.
2. Customized.
Delivery:
We can arrange to ship by sea in generally 7-10 working days after receipt the deposit. Also we can offer other shipping method, such as by air, by express, by train and so on. We have many shipping agent to meet different request for the shipping.
1.1 Kw Automatic Oil Press Machine , Alloy Material Sesame Oil Press Machine 7


V. Our service

1. Pre-sale service:
We offer different solution for different request and material.
Factory view accepted.
Test machine accepted.
7x24 hours online service.
2. After sale service:
1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.

1.1 Kw Automatic Oil Press Machine , Alloy Material Sesame Oil Press Machine 8


VI. Our company

1.1 Kw Automatic Oil Press Machine , Alloy Material Sesame Oil Press Machine 9
Warehouse:
1.1 Kw Automatic Oil Press Machine , Alloy Material Sesame Oil Press Machine 10


VII. Contact us

1.1 Kw Automatic Oil Press Machine , Alloy Material Sesame Oil Press Machine 11
