Place of Origin:
Henan province, china
Brand Name:
Lewin
Certification:
CE ISO
Model Number:
6YY-300
Contact Us
Basis Information
Theory

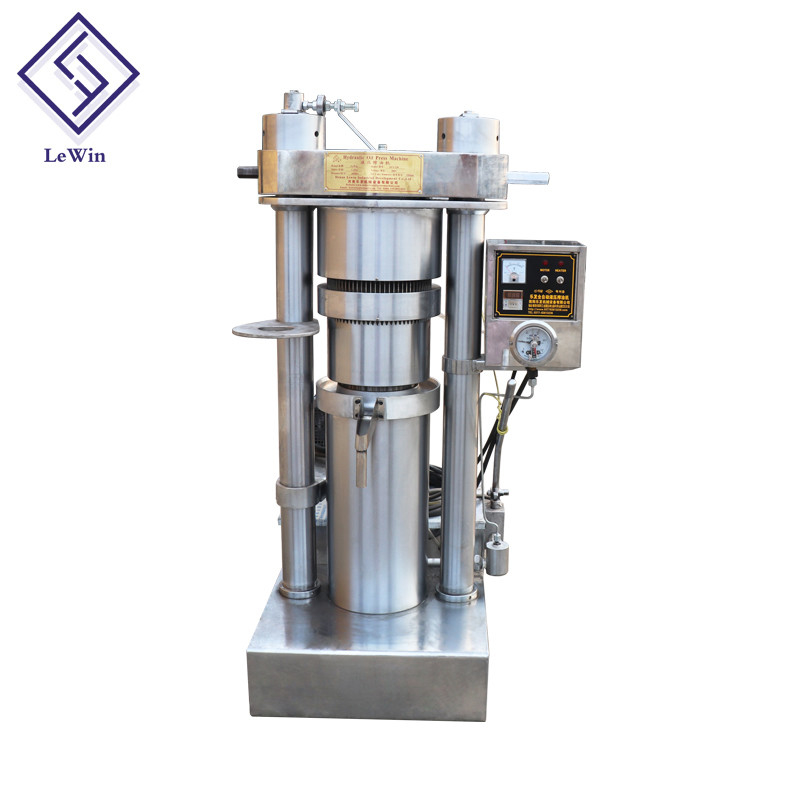

The working principle is that the when the oil material is put into the assembly of the press boring, then it being driven up by the oil cylinder piston, oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.
parameters
| Model | 6YY-185 | 6YY-230A | 6YY-250 | 6YY-300 | 6YY-335 |
| Weight | 550kg | 924kg | 1070kg | 1600kg | 1750kg |
| vacuum Power | 1.1kw | 1.1kw | 1.1kw | 2.2kw | 2.2kw |
| 3phase | 2.2kw | 2.2kw | 2.2kw | 4.0kw | 4.8kw |
| Working pressure | 60MPa | 60MPa | 60MPa | 60MPa | 60MPa |
| Capacity | 4kg/batch | 8.5kg/batch | 11kg/batch | 16kg/batch | 20kg/batch |
| Dimension(mm) |
600*880*1150 |
670*950*1460
|
710*950*1560
|
1000*1100*1660
|
1100*1240*1730
|
(1) High oil yield, pure oil, no filtration
(2) The oil is squeezed once, the speed is fast, and the labor intensity is small
Seeds application of hydraulic oil making machine
If you want to process other special raw material, please cantact us to ensure.
Simple operation
Our service
Provide quality service
1.Professional engineer
Our professional engineer will test the machine in each step.
2.Specialist manufacture
Every machine carefully adjusted before shipment.
3.After-service
The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
Packing and shipping
1. All of our machine was packed in the standard wooden box with double water proof film.
2. We accept the customized package.
3. According to the packing size, weight and other data, we can recommend the suitable shipping method for you.
4. We have enough stock and can arrange shipping for you as soon as possible.
