Place of Origin:
Henan Province, China
Brand Name:
Lewin
Certification:
CE ISO
Model Number:
6YL-160
Contact Us

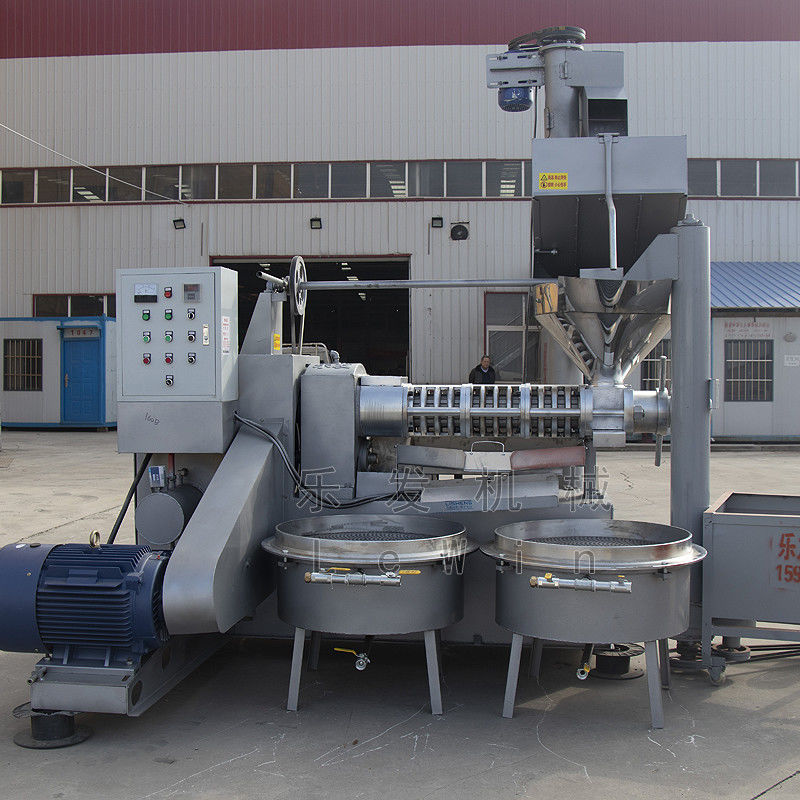

1. The fully automatic screw oil press is a newly developed and improved product.
2. The machine can squeeze more, saving time, effort and space. The operation is simple and can be operated by one person.
3. The heating temperature can be set, the pressing is directly filtered, the oil yield is high, and the oil is pure.
4. This machine can work continuously for 24 hours. The service life of this machine is more than ten years.
5. L-type oil cake feeding system can directly squeeze oil cake twice.
Working priciple:
The working principle is that the oil is extruded from the material embryo and discharged from the slots and oil troughs of the strip and circle rows by the continuous pushing of the material embryo in the squeezing chamber and the change of the space volume of the squeezing chamber from large to small, and the oil can be directly eaten in a barrel after deep filtration of the oil tank.
Characters:
1. Stable performance
The main components of our machines are produced by ourselves in order to guarantee the oil rate and the quality of the machine.
2. Oil pure and fragrant
The oil filter is dense that the oil can be filtered clean.
3. High oil yield
The diameter of the screw press is larger than that of similar products, the pressing speed is low, and the raw material can be pressed cleanly.
4. Saving time and effort
L-type oil cake feeding system can directly squeeze oil cake twice.
5. Temperature Control System
The oil temperature is automatically controlled to increase the processing speed of the oil, and it can be produced normally in a low temperature environment.
Technical parameters of oil presser:
Model | 6YL-120 | 6YL-130 A | 6YL-150 | 6YL-160 | 6YL-180 |
Weight | 1200 kg | 1650 kg | 1800 kg | 1900 kg | 1980 kg |
Vacuum power | 1.1 kw | 1.1 kw | 2.2 kw | 2.2 kw | 2.2 kw |
3phase | 15 kw | 18.5 kw | 30kw | 30 kw | 37 kw |
Squeezer speed | 100-130 | 100-130 | 100-130 | 100-130 | 100-130 |
Capacity(kg/h) | 120-160 | 160-280 | 220-450 | 300-600 | 400-750 |
Dimension(mm) | 2000*1600*2700 | 2600*1600*2700 | 2550*1800*2700 | 2650*1900*2700 | 2700*2000*2700 |

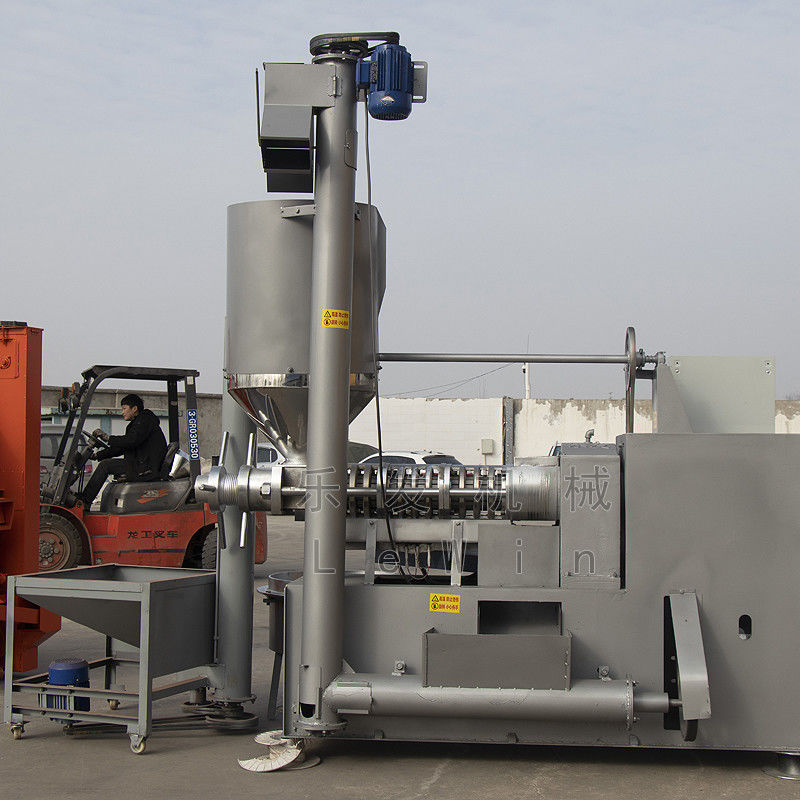

Detailed images
Parts of high quality oil presser:
Seeds application of screw oil making machine
If you want to process other special raw material, please cantact us to ensure.
Workflow
Packing & shipping
We use strong wooden case to ensure the safety of your goods in transit.
Our service
Provide quality service
1.Professional engineer
Our professional engineer will test the machine in each step.
2.Specialist manufacture
Every machine carefully adjusted before shipment.
3.After-service
The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
