60-100 RPM Screw Press Separator Cold Spiral Oil Processing Equipment

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Wooden Carton Customization Delivery Time : 7-10 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 sets per month
Place of Origin: Henan Province, China Brand Name: Lewin
Certification: CE ISO Model Number: 6YL-180

Detail Information

Product Name: Screw Oil Extracting Machine Weight: 1980 Kg
Oil Material: Sesame, Walnut. Sunflowerseeds, Peanut Voltage: 380 V/Customized
Capacity: 5-7 Tons/ Day Squzzer Speed: 60-100 RPM
High Light:

100 RPM Screw Press Separator

,

100 RPM Spiral Oil Processing Equipment

,

60rpm Screw Press Separator

Product Description

Screw press separator cold spiral oil processing equipment for sale

Oil presser basis Information:

The screw-type cold press oil press has the advantages of automatic temperature control, oil outlet, high oil output, vacuum filtration, and high production efficiency. The multifunctional screw oil press can process more than 20 kinds of oilseeds such as sesame, peanut, rapeseed, tea seed, soybean, sunflower seed, flax, cottonseed, corn, walnut and so on. The oil is vacuum-filtered, has an attractive fragrance, crystal clear, safe and hygienic, and can be directly eanten or bottled for sale.

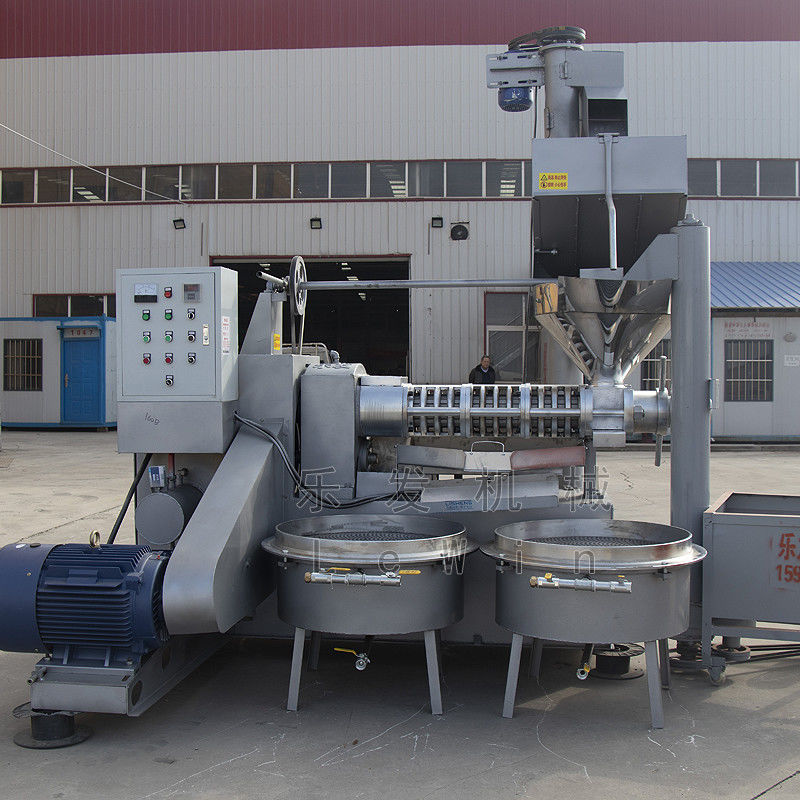

60-100 RPM Screw Press Separator Cold Spiral Oil Processing Equipment 0



Working priciple:

The working principle is that the oil is extruded from the material embryo and discharged from the slots and oil troughs of the strip and circle rows by the continuous pushing of the material embryo in the squeezing chamber and the change of the space volume of the squeezing chamber from large to small, and the oil can be directly eaten in a barrel after deep filtration of the oil tank.

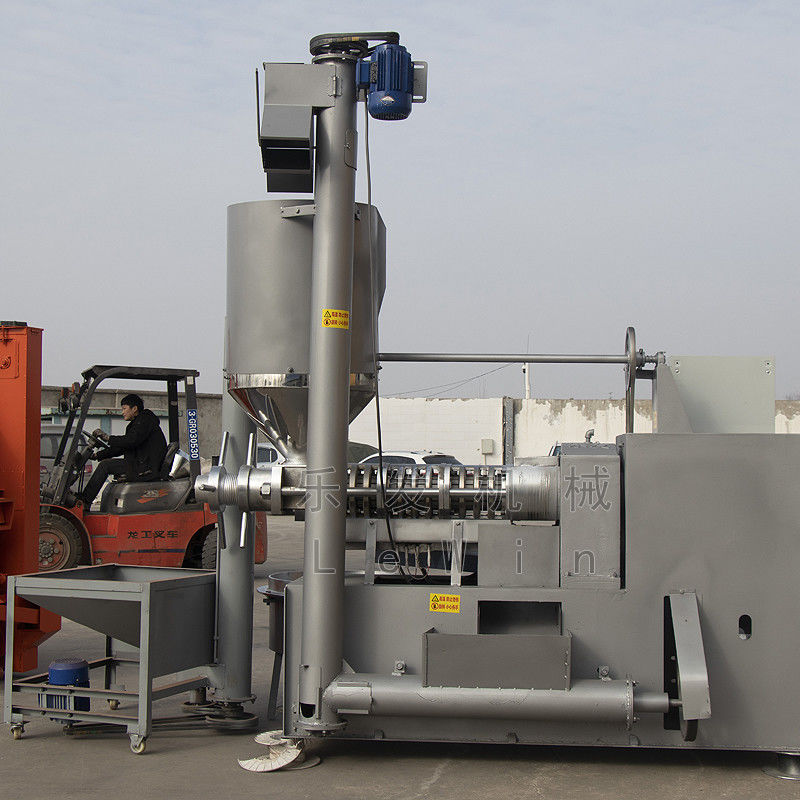

60-100 RPM Screw Press Separator Cold Spiral Oil Processing Equipment 1



Characters:

1. Stable performance
The main parts of our machine are produced by ourselves to ensure the oil rate and quality of the machine.
2. Oily fragrance
The oil filter is dense and can filter the oil cleanly.
3. High oil yield
The diameter of the screw press is larger than that of similar products, the pressing speed is low, and the raw material can be pressed cleanly.
4. Save time and effort
L-type oil cake feeding system can directly squeeze oil cake twice.
5. Temperature control system
The oil temperature is automatically controlled to increase the processing speed of the oil, and it can be produced normally in a low temperature environment.



Technical parameters of oil presser:

60-100 RPM Screw Press Separator Cold Spiral Oil Processing Equipment 2

Model 6YL-120 6YL-130 A 6YL-150 6YL-160
Weight 1200 kg 1650 kg 1800 kg 1900 kg
Vacuum power 1.1 kw 1.1 kw 2.2 kw 2.2 kw
3phase 15 kw 18.5 kw 30kw 30 kw
Squeezer speed 100-130 100-130 100-130 100-130
Capacity(kg/h) 120-160 160-280 220-450 300-600
Dimension(mm) 2000*1600*2700 2600*1600*2700 2550*1800*2700 2650*1900*2700



Detailed images

Parts of high quality oil presser:

60-100 RPM Screw Press Separator Cold Spiral Oil Processing Equipment 3

Seeds application of screw oil making machine

60-100 RPM Screw Press Separator Cold Spiral Oil Processing Equipment 4

If you want to process other special raw material, please cantact us to ensure.

Packing & shipping

We use strong wooden case to ensure the safety of your goods in transit.

60-100 RPM Screw Press Separator Cold Spiral Oil Processing Equipment 5

Our service

Provide quality service

60-100 RPM Screw Press Separator Cold Spiral Oil Processing Equipment 6

1.Professional engineer

Our professional engineer will test the machine in each step.

2.Specialist manufacture

Every machine carefully adjusted before shipment.

3.After-service

The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)

Company information

We have our factory, so we can provide product with the best price.

60-100 RPM Screw Press Separator Cold Spiral Oil Processing Equipment 7



Since1998, Henan Lewin Industry Development Co., Ltd was found officially registered under Henan Companies Registry.It is a firm which has the ability for Manufacture,Research&Development, Sale and

Export. Our mainproducts are hydraulic oil press machine, spiral oil press machine, the accessory equipment for the oil press machine and other machine.
