50 Kg/H Hydraulic Oil Press Machine Sesame Coconut Mustard Oil Processing Machinery

50 Kg/H Hydraulic Oil Press Machine Sesame Coconut Mustard Oil Processing Machinery

50 Kg/H Hydraulic Oil Press Machine

Sesame Coconut Hydraulic Oil Press Machine

50 Kg/H Mustard Oil Processing Machinery

Place of Origin:

China

Brand Name:

Lewin

Certification:

CE ISO

Model Number:

6YY-250

Contact Us

Request A Quote
Product Details
Product Name:
Hydraulic Oil Pressers
Oil Material:
Coconut, Cocoa Butter, Mustard And Etc
Feature::
High Oil Yield,
Residual Oil Rate:
≤5%
Advantages:
Easy Operation
Warranty:
1 Year
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case with film
Delivery Time
7-10 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
50 set per month
Product Description
50 kg/h hydraulic oil press machine
sesame coconut mustard oil processing device
Product Description

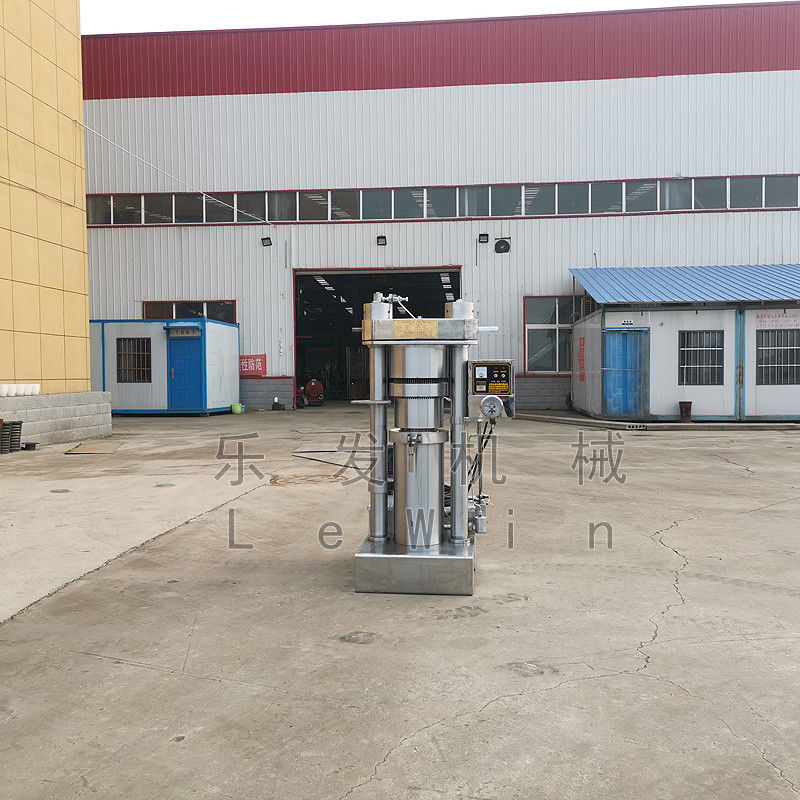

50 Kg/H Hydraulic Oil Press Machine Sesame Coconut Mustard Oil Processing Machinery 0





1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution.

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

There are different can meet your demands, the customization also can be accepted.

Modle
Capacity
(kg/batch)
Weight
(kg)
Power
Working pressure
Dimension(m)
Residual oil
6YY-185
4
590
1.1 kw
60 MPa
0.6*0.88*1.15
≤5%
6YY-230 A
8.5
924
1.1 kw
60 MPa
0.67*0.95*1.46
≤5%
6YY-230 B
9.5
950
1.1 kw
60 MPa
0.67*0.95*1.56
≤5%
6YY-250
11
1070
1.1 kw
60 MPa
0.71*0.95*1.56
≤5%
6YY-270
13.5
1230
2.2 kw
60 MPa
0.75*1.01*.164
≤5%
6YY-300
16
1600
2.2 kw
60 MPa
1*1.1*1.66
≤5%
6YY-335
20
1750
2.2 kw
60 MPa
1.1*.124*1.73
≤5%
Detailed Images



Advantages:

1.Professional research and development, complete model, advanced manufacturing technology, beautiful appearance.
2.High oil yield, pure oil, no filtration.
3.The oil is squeezed once, the speed is fast, and the labor intensity is small.
4.Fast purification, stable and durable performance.
5.It has high pressure, the pressure of our machine is 60Mpa, higher than other machine(the normal is 45Mpa to 55Mpa), provide higher oil yield.

Operating priciple:
The working principle is that the when the oil material is put into the assembly of the press boring, then it being driven up by the oil cylinder piston, oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.

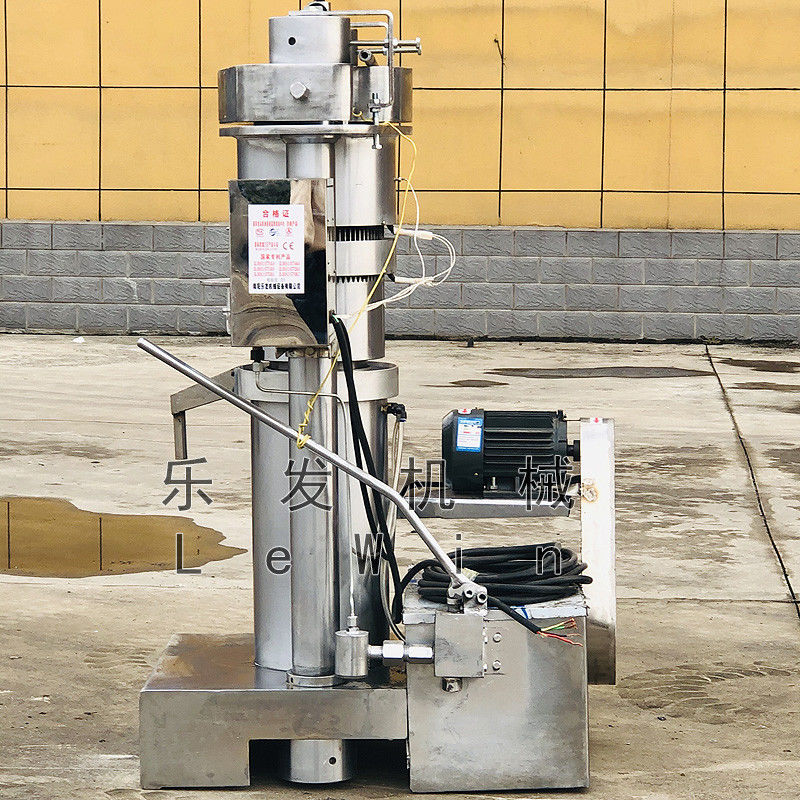

50 Kg/H Hydraulic Oil Press Machine Sesame Coconut Mustard Oil Processing Machinery 1
50 Kg/H Hydraulic Oil Press Machine Sesame Coconut Mustard Oil Processing Machinery 2
