Automatic Cold Hydraulic Oil Press Machine Mustard And Filter Machinery

Automatic Cold Hydraulic Oil Press Machine Mustard And Filter Machinery

Mustard Hydraulic Oil Press Machine

Filter Machinery Hydraulic Oil Press Machine

6YY-355 mustard oil production machine

Place of Origin:

Henan Province, China

Brand Name:

Lewin

Certification:

CE ISO

Model Number:

6YY-355 model

Contact Us

Request A Quote
Product Details
Name:
Hydraulic Oil Press Machine
Key Selling Point:
Fully Automatic
Usage:
Sesame
Keyword:
High Oil Yield
Voltage:
380V/220V Optional
Function:
Making Edible Oil
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden Carton Customization
Delivery Time
7-10 working days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description
Automatic Cold Hydraulic Oil Pressers Mustard and Filter
Product Description
Automatic Cold Hydraulic Oil Press Machine Mustard And Filter Machinery 0





1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution.

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

There are different can meet your demands, the customization also can be accepted.

Modle
Capacity
(kg/batch)
Weight
(kg)
Power
Working pressure
Dimension(m)
Residual oil
6YY-185
4
590
1.1 kw
60 MPa
0.6*0.88*1.15
≤5%
6YY-230 A
8.5
924
1.1 kw
60 MPa
0.67*0.95*1.46
≤5%
6YY-230 B
9.5
950
1.1 kw
60 MPa
0.67*0.95*1.56
≤5%
6YY-250
11
1070
1.1 kw
60 MPa
0.71*0.95*1.56
≤5%
6YY-270
13.5
1230
2.2 kw
60 MPa
0.75*1.01*.164
≤5%
6YY-300
16
1600
2.2 kw
60 MPa
1*1.1*1.66
≤5%
6YY-335
20
1750
2.2 kw
60 MPa
1.1*.124*1.73
≤5%
6YY-355
23
2350
3.0 kw
60 MPa
1.16*1.2*1.81
≤5%
Detailed Images



Advantages:

1.Professional research and development, complete model, advanced manufacturing technology, beautiful appearance.
2.High oil yield, pure oil, no filtration.
3.The oil is squeezed once, the speed is fast, and the labor intensity is small.
4.Fast purification, stable and durable performance.
5.It has high pressure, the pressure of our machine is 60Mpa, higher than other machine(the normal is 45Mpa to 55Mpa), provide higher oil yield.

Operating priciple:
The working principle is that the when the oil material is put into the assembly of the press boring, then it being driven up by the oil cylinder piston, oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.

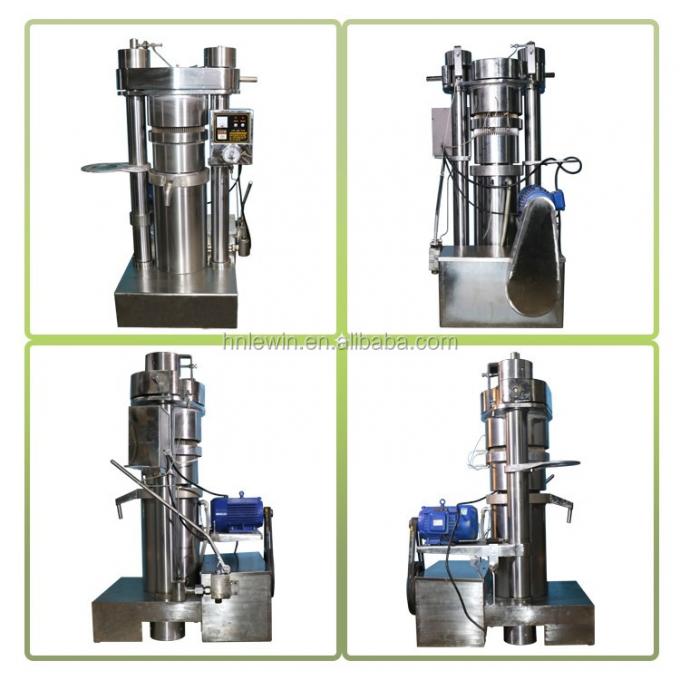

Automatic Cold Hydraulic Oil Press Machine Mustard And Filter Machinery 1
Automatic Cold Hydraulic Oil Press Machine Mustard And Filter Machinery 2
Packing & Delivery

We use strong wooden case to ensure the safety of your goods in transit.

Automatic Cold Hydraulic Oil Press Machine Mustard And Filter Machinery 3
Our Service

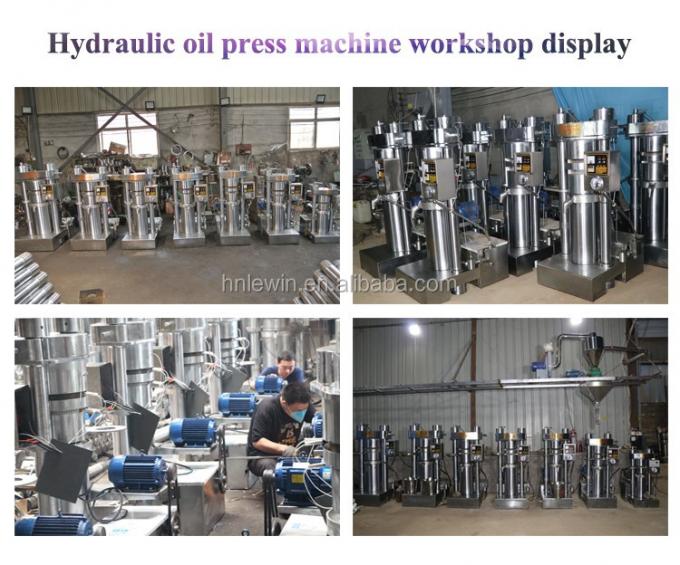

Automatic Cold Hydraulic Oil Press Machine Mustard And Filter Machinery 4



Provide quality service

1.Professional engineer
Our professional engineer will test the machine in each step.
2.Specialist manufacture
Every machine carefully adjusted before shipment.
3.After-service
The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
