1-2 T/H Palm Oil Processing Plant Oil Making Machine

Minimum Order Quantity : 1set Price : $3100-$7580 per set
Packaging Details : Film packaging+wooden case Delivery Time : 3-10 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram, Trade Assurance Supply Ability : 300 sets/month
Place of Origin: China Brand Name: Lewin
Certification: ISO CE Model Number: 6YY-335

Detail Information

Model: 6YY-335 Name: Hydraulic Oil Press Machine
Dimension: 1.1*1.24*1.73m Pressure: 60Mpa
Cake Diameter: 335mm Weight: 1750kg
Color: Silver Power: 2.2 Kw
High Light:

2 T/H Palm Oil Processing Plant

,

1T/H Palm Oil Processing Plant

,

2 T/H palm oil making machine

Product Description

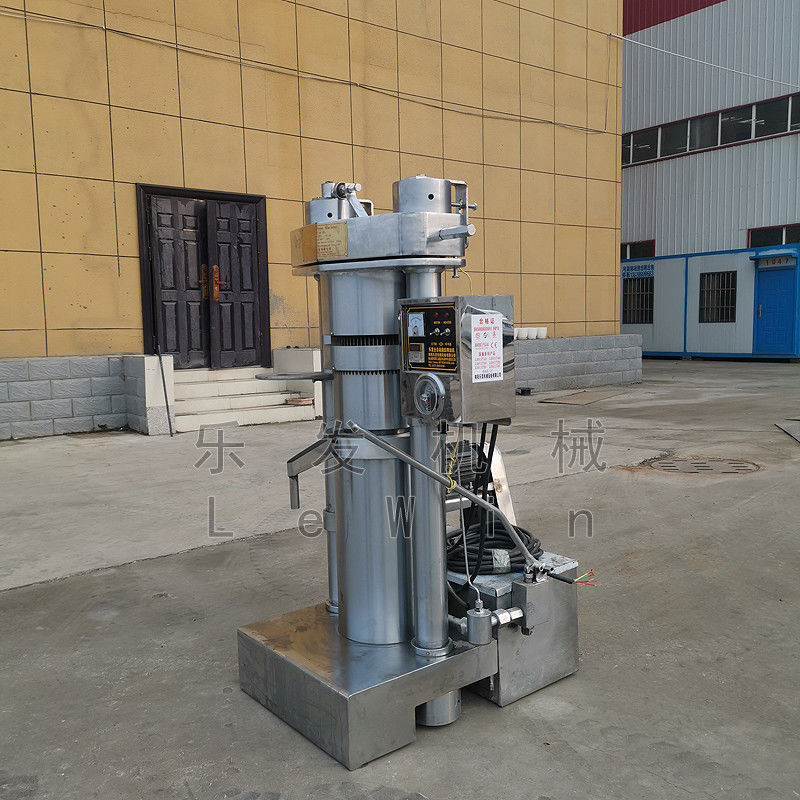

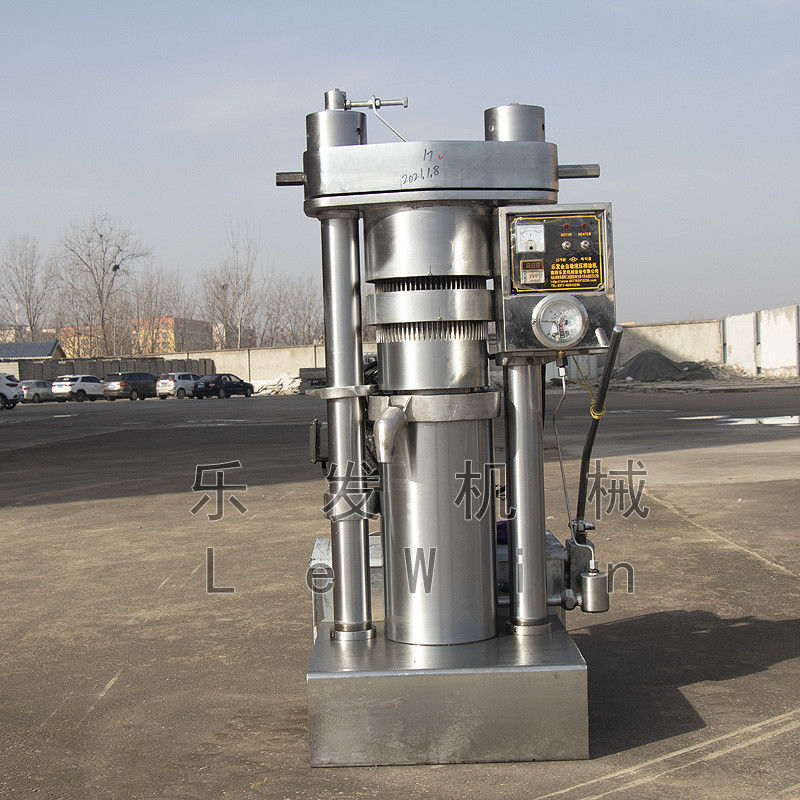

1-2 T/H Palm Oil Processing Plant Oil Making Machine



1-2 T/H Palm Oil Processing Plant Oil Making Machine 0





Describtion:

1. Specical hydraulic system make machine press your raw material repeatedly, till all the oil be pressed by the machine, so that you can get high oil yield.

2. High precision oil lines only 0.36mm, can filter residuals efficiently, the oil is pure and clear.

3. Separately and more perfect oil line technology applied, keep the press kettle strong enough and increase the oil yield.

4. High working pressure can reach 60 mpa, high pressure makes high oil yield, just like water in the sponge, the harder you squeeze, the more water you will get.





Advantages:



1. The hydraulic system of hydraulic oil machine:

(1) It is the core part of our oil mill machine which provides enough power for the oil machine to improve the oil productivity and the pressure can reach 60 Mpa.

(2) The hydraulic oil can be recycled, save costs and environmental protection.

(3) Here we use 2 pumps, one is high-pressure pump, another one is low-pressure pump, realize quick conversion between them, improve work efficiency and save electricity.

(4) The machine equipped with pressure gauge, you can monitor the working pressure in real time, if the machine has any problem, you can know it by the pressure gauge.



2. The pressure gauge:

     Can help you monitor the working pressure in real time:

     when machine reach the max. value 60 mpa, machine will stop working temporarily, after the pressure reduce to the min value by our engineers set, it will work again, like this pressing raw material repeatedly, till all the oil pressed by the hydraulic oil extraction machine.



3. Solid piston Higher pressure, pressing more thorough and cleaner./ Our piston is solid, provide more pressure to the machine, increase the oil rate.





Parameters:

Model Pressure (Mpa) Power (kw) Oil cake diameter (mm) Capacity (kg/batch) Dimension (mm3) Weight (kg)
6YY-185 60 1.1 185 4 600*880*1150 590
6YY-2340A 60 1.1 230 8.5 670*950*1460 924
6YY-230B 60 1.1 230 9.5 670*950*1560 950
6YY-250 60 1.1 250 11 710*950*1560 1070
6YY-270 60 2.2 270 13.5 750*1010*1640 1230
6YY-300 60 2.2 300 16 1000*1100*1660 1600
6YY-335 60 2.2 335 20 1100*1240*1730 1750
6YY-355 60 3 355 23 1160*1200*1810 2350

If there is no model suitable, we can customize it for you.





Detailed information:

1-2 T/H Palm Oil Processing Plant Oil Making Machine 1



Our hydraulic oil making machine can help you press different raw matrial, such as coconut, sesame, peanut, avocado, passion seeds and so on.

That means you can get any oil you want, the following picture is show you different cooking oils be pressed by our hydraulic oil making machine.



1-2 T/H Palm Oil Processing Plant Oil Making Machine 2





Packing and Shipping:



1.We focus on every details, including packing and shiping, so that can provide the best quality machine to customers all over the world.

2.Using the layer film packing and export standard wooden case to make sure you will receive the perfect machine

3.Any special packing require contact us, we can customized for you.





Workshop Display:



1-2 T/H Palm Oil Processing Plant Oil Making Machine 3



FAQ:

1. Q:Does your factory accept customization?
A:As a professional manufacturer, we can do almost any kind of customization.



2.Q:Can you guarantee the quality of your machine?
   A:We are a professional manufacturer with strict quality requirements



3. Q:How long can I use it?
A:15-20 yeas, longer service life.




4. Q:How do I choose a model that suits me ?
    A:You need tell us your oil raw materials and capacity demand etc.



Notes: Be careful not to raise the plunger too high when the cake is out, to prevent the hydraulic oil from coming out and the seal ring from being damaged.





Please let us know what raw material do you want to press and how much output do you

want, so that we can recommed a machine to meet your needs, and provide the best

experience for you!!!
