18.5 KW Industrial Oil Press Machine Screw Cotton Seed Oil Extraction Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Wooden case package/ Customized Delivery Time : 7-10 working days
Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram Supply Ability : 100 sets per month
Place of Origin: Henan, China(Mainland) Brand Name: Lewin
Certification: ISO CE Model Number: 6YL-130A

Detail Information

Production Name: 18.5 KW Industrial Oil Machine Screw Cotton Seed Oil Extraction Machine Model: 6YL-130A
Capacity: 180-300 Kg/h Squeezer Speed: 100-130 RPM
Oil Rate: 96% Key Word: Screw Cotton Seed Oil Extraction Machine
HS Code: 8479200000 Vacuum Power: 1.1 KW
Power: 22kw Material: Alloy
High Light:

18.5 KW Industrial Oil Press Machine

,

18.5 KW Screw Cotton Seed Oil Extraction Machine

,

Cotton Seed Industrial Oil Press Machine

Product Description

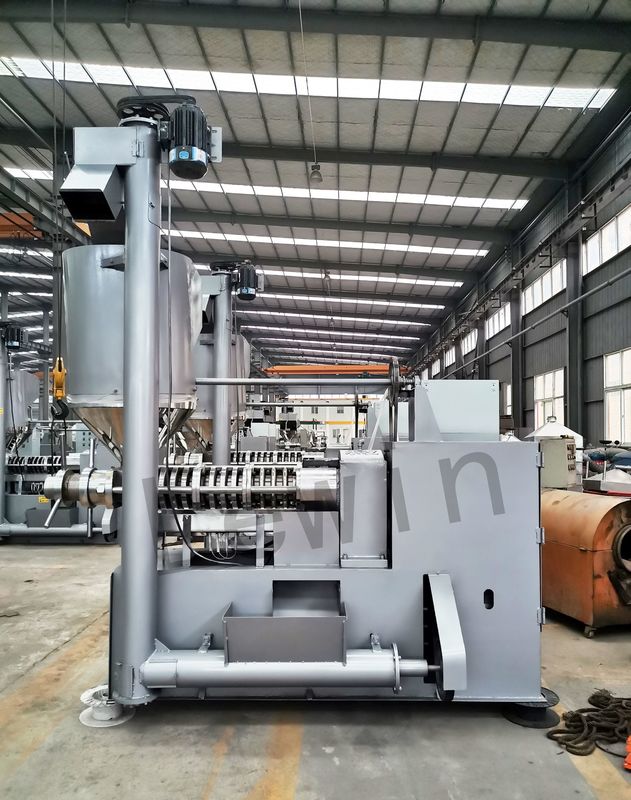

18.5 KW industrial oil machine screw cotton seed oil extraction machine


Intruduction of industrial oil machine


1. Principle and Structure of screw cotton seed oil extraction machine:
Screw cotton seed oil extraction machine is to separate the oil from oil bearing materials by the pressing power which comes from the change of chamber volume, drive from screw worm, resistance of curve teeth at press rings and extrusion friction between oil materials. Under the big pressure created in press chamber, the oil can be discharged from gap of press bars and oil trough of press rings. Either big scale and small scale of oil press machine, they have similar theories in screw expeller pressing. Because the screw type oil extraction machine is mainly used by extrusion theory, so it is also called as oil extruder or oil extrusion process.

18.5 KW Industrial Oil Press Machine Screw Cotton Seed Oil Extraction Machine 0



2. Range of usage of screw cotton seed oil extraction machine:
This screw oil extraction machine is used to both cold press and hot press many materials. It can be used to press various kinds of oil corps, like rapeseed, cottonseed, soybean, peanut, sesame, olive, sunflower seeds, walnuts, almond, coconut, tea seed, etc.

The following picture show the referenced oil yield( Any other special materials, we can test and take video for your reference):

18.5 KW Industrial Oil Press Machine Screw Cotton Seed Oil Extraction Machine 1

Our machines have high oil rate and high quality, it also with 1 year warranty, we use special material to protect user and machine safety. Whenever you are the user or trader, it can offer you the highest profit.



Features of screw cotton seed oil extraction machine:

1.Our screw cotton seed oil extraction machine has multiple functions, including vacuum filtration system, L type oil cake system.

2. The industrial oil machine is matched with one controlling cabinet box for controlling all working of the machine

3. Labor saving and electricity saving, high oil yield and nice performance.

4. 6YL-130A industrial oil machine is can be used for various raw materials, and depending on the oil content of particular crop you are pressing, the machine will extract about 95%-98% oil of it.

18.5 KW Industrial Oil Press Machine Screw Cotton Seed Oil Extraction Machine 2


Various model of industrial oil machine

Model

Dimension (mm)

Weight

Power

Vacuum power

Rotary speed

Capacity(kg/h)

6YL-120 2000*1600*2700 1500kg 15kw 1.1kw 100-130 120-160
6YL-130 2150*1600*2700 1600kg 22kw 1.1kw 100-130 180-300
6YL-130(A) 2600*1600*2700 1650kg 18.5kw 1.1kw 100-130 160-280
6YL-150 2550*1800*2700 1800kg 30kw 2.2kw 100-130 220-450
6YL-160 2650*1900*2700 1900kg 30kw 2.2kw 100-130 300-600
6YL-180 2700*2000*2700 1980kg 37kw 2.2kw 100-130 400-750

1. We have different models for you to choose.

2. According to your requirements, we can also customize for you.




More details of our screw cotton seed oil extraction machine



18.5 KW Industrial Oil Press Machine Screw Cotton Seed Oil Extraction Machine 3   18.5 KW Industrial Oil Press Machine Screw Cotton Seed Oil Extraction Machine 4

18.5 KW Industrial Oil Press Machine Screw Cotton Seed Oil Extraction Machine 5   18.5 KW Industrial Oil Press Machine Screw Cotton Seed Oil Extraction Machine 6

18.5 KW Industrial Oil Press Machine Screw Cotton Seed Oil Extraction Machine 718.5 KW Industrial Oil Press Machine Screw Cotton Seed Oil Extraction Machine 8


Packing & Delivery

Packing:

1. Standard export wooden case package.

2. Customized.

Delivery:

We can arrange to ship by sea in generally 7-10 working days after receipt the deposit. Also we can offer other shipping method, such as by air, by express, by train and so on. We have many shipping agent to meet different request for the shipping.

18.5 KW Industrial Oil Press Machine Screw Cotton Seed Oil Extraction Machine 9

Our company

We are the manufacture of oil equipment and we have 20 years experience for oil machine. We have our own factory and professional engineer, so we can gurantee the quality of the oil press machine, if there are any other questions about our oil pressing machine, we can give you a best solution. We also have our own professional sales and service team, we can make the different solutions according to your requests. In addition, We are factory direct sale, cut out the middleman, thus makes the price lowest for our customers. so if you need, please contact us freely!

18.5 KW Industrial Oil Press Machine Screw Cotton Seed Oil Extraction Machine 10

18.5 KW Industrial Oil Press Machine Screw Cotton Seed Oil Extraction Machine 11
