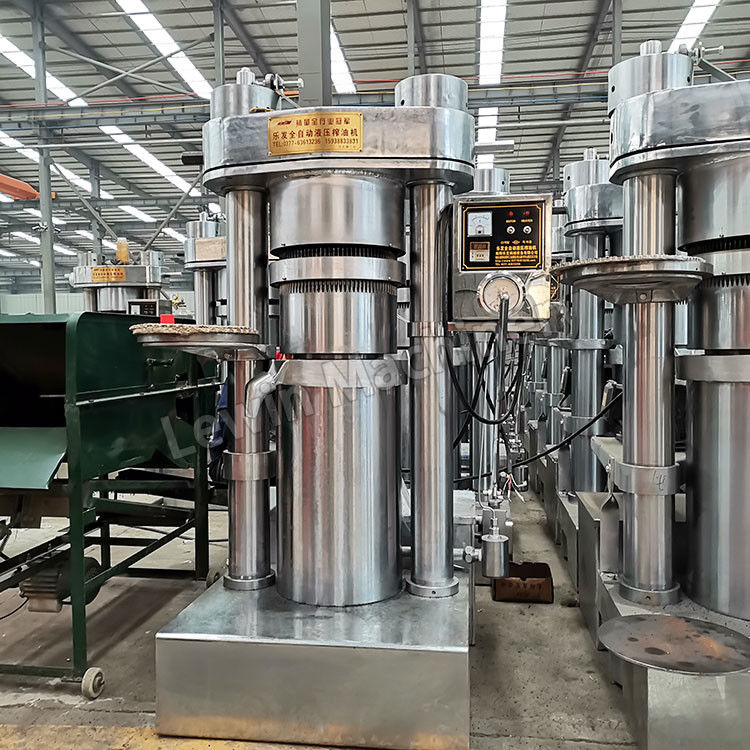

8.5kg/batch Mustard Hydraulic Oil Extractor Cold Pressed Mustard Oil Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Wooden case package / Customized Delivery Time : 7-10 working days
Payment Terms : T/T, D/A, D/P, L/C, Western Union, MoneyGram Supply Ability : 100 sets per month
Place of Origin: Henan , China Brand Name: Lewin machine
Certification: ISO CE Model Number: 6YY- 230A

Detail Information

Product Name: Factory Sale Mustard Hydraulic Oil Extractor Oil Press Machine Cold Model Of Mustard Oil Extractor: 6YY - 230 A
Usage: Cold & Hot Pressing Suit For: Kinds Of Oil Seeds
Working Pressure: 60 Mpa Material: Kinds Of Seeds
Weight: 924 Kg Voltage: 380V
Power: 2.2 Kw / 1.1 Kw Key Word: Oil Press Machine Cold
HS Code: 8479200000
High Light:

Mustard Hydraulic Oil Extractor

,

8.5kg/Batch Hydraulic Oil Extractor

,

8.5kg/Batch Cold Pressed Mustard Oil Machine

Product Description

230A model commercial olive oil processing machine



I. Production description



Our 6YY-230A model factory sale mustard hydraulic oil extractor:



1. This mustard hydraulic oil extractor adopts automatic control system, hydaulic pressure control system and temperature control system.

2. This oil press machine cold machine can work with many kinds of oil seeds well.

3. This factory sale mustard hydraulic oil extractor can work continuously for 24 hours. It can squeeze 8 kilogram per batch, the perssing time is 8-15 minutes.

4. The pressure of our machine is 60Mpa, higher than other machine(the normal is 45Mpa to 55Mpa), provide higher oil yield.

5. The material of oil extractor machine is alloy that can make sure the safety.

8.5kg/batch Mustard Hydraulic Oil Extractor Cold Pressed Mustard Oil Machine 0



Appliction of hydraulic oil extractor

This oil extractor machine can cold or hot press various of oil seeds, includes sesame, peanut, castor, walnut, camellia, olive, palm, avocado, sunflower, rapeseed, ect.



8.5kg/batch Mustard Hydraulic Oil Extractor Cold Pressed Mustard Oil Machine 1



Parameter of oil extractor:

Model 6YY-230A

Capacity

(kg/batch)

8.5
Working pressure 60Mpa
Weight (kg) 924

Power

(3 /single phase)

1.1/2.2 kw

Package

Size(m)

0.78*1*1.58

Capacity

(Kg/24h)

500-650

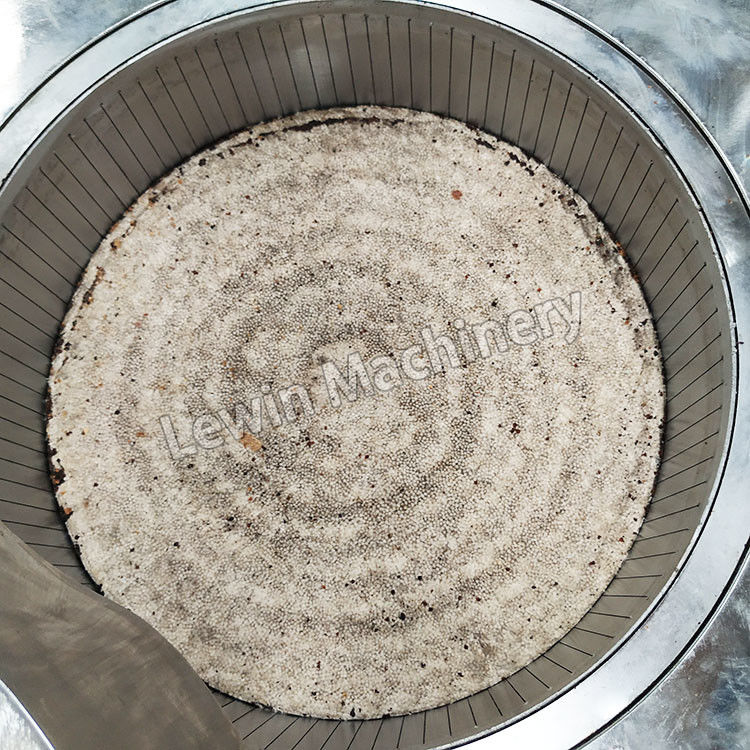

Oil cake diameter 230mm
Residual oil ≤2%


















































II. Working Process:



Working principle of oil extractor

This oil extractor machine applied the our new supercharged technology and five class safety protection system, offer the enough pressure and keep the machine working safety. High precision structure hydraulic box can over higher pressure. Separately and more perfect oil line technoloty applied, keep the press kettle strong enough and increase the oil rate.

8.5kg/batch Mustard Hydraulic Oil Extractor Cold Pressed Mustard Oil Machine 2



Workflow ( Cold press) :

8.5kg/batch Mustard Hydraulic Oil Extractor Cold Pressed Mustard Oil Machine 3



Operation step of oil extractor:

8.5kg/batch Mustard Hydraulic Oil Extractor Cold Pressed Mustard Oil Machine 4



III. Our advantages of hydraulic oil extractor

8.5kg/batch Mustard Hydraulic Oil Extractor Cold Pressed Mustard Oil Machine 5

8.5kg/batch Mustard Hydraulic Oil Extractor Cold Pressed Mustard Oil Machine 6






IV. Our company

8.5kg/batch Mustard Hydraulic Oil Extractor Cold Pressed Mustard Oil Machine 7
