Big Capacity Auto 6yy-300 Industrial Oil Press Machine Coconut Oil Extractor Machine

Big Capacity Auto 6yy-300 Industrial Oil Press Machine Coconut Oil Extractor Machine

6yy-300 Industrial Oil Press Machine

Big Capacity Industrial Oil Press Machine

6yy-300 Coconut Oil Extractor Machine

Place of Origin:

Henan , China

Brand Name:

Lewin

Certification:

ISO CE

Model Number:

6YY- 300

Contact Us

Request A Quote
Product Details
Name Of Our Machine:
Big Capacity Auto 6yy-300 Oil Machine Coconut Oil Extractor Machine
Model Of Oil Press Machine:
6YY - 300
Application Range:
Various Seeds
Voltage:
380V / 220V
Weight:
1600 Kg
Working Pressure:
60 Mpa
Residuel Oil Rate:
2%
Motor Power:
2.2 KW
Oil Rate:
97%
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$ 5800 per set
Packaging Details
Wooden case package / Customized
Delivery Time
7-10 working days
Payment Terms
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

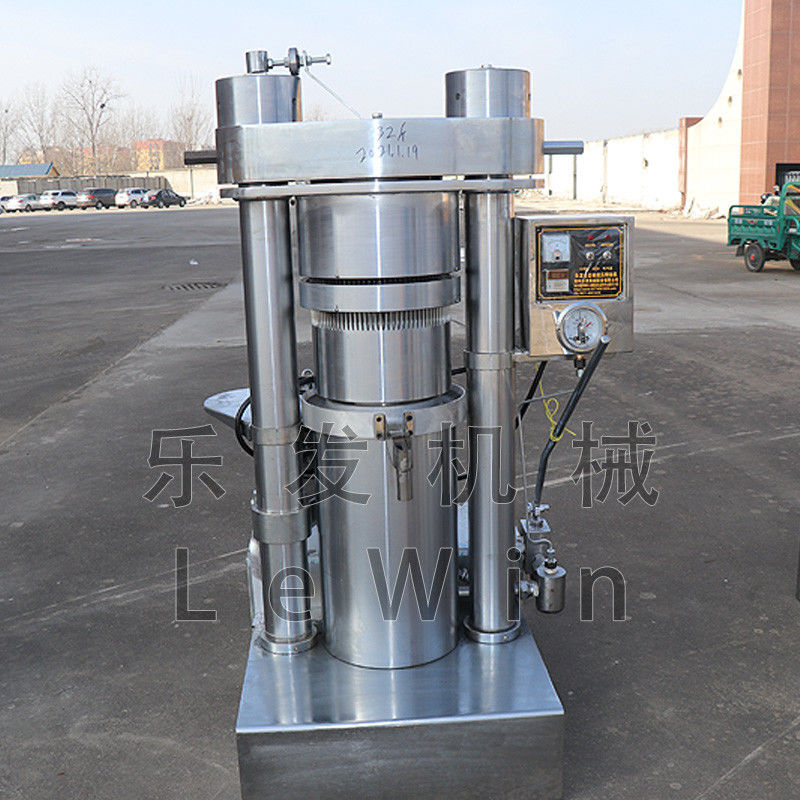

Big capacity auto 6yy-300 oil machine coconut oil extractor machine


I. Our production


1. Our big capacity coconut oil extractor machine can cold and hot press oil seeds, it can work without any heating , the temperature is same as indoor temperature. It also can work with after heated material, and the oil yield is higher.

2. The max pressure of big capacity oil machine is 60Mpa , it can get more oil than other similar machines.

3. Our coconut oil extractor machine can do fully automatic oepration, when you put the material into the machine, you can do other things.

4. This big capacity auto 6yy-300 oil machine can be used for factory and home.

5. The oil after pressing by auto 6yy-300 can reach food grade level directly.



Main structures

Big Capacity Auto 6yy-300 Industrial Oil Press Machine Coconut Oil Extractor Machine 0



Oil rate paremeter of auto 6yy-300 oil machine:
Big Capacity Auto 6yy-300 Industrial Oil Press Machine Coconut Oil Extractor Machine 1



Technology Parameter of auto 6yy-300 oil machine



Model 6YY- 300

Production capacity(kg/batch)

16
Working pressure 60 Mpa
Weight (kg) 1600
Voltage 380V

Power (3 /single phase)

2.2

Dimension(m)

1*1.1*1.66
Oil cake diameter 300 mm
Residue oil rate 2%



























II. Why choose our machine

Big Capacity Auto 6yy-300 Industrial Oil Press Machine Coconut Oil Extractor Machine 2

Quality assured of our auto 6yy-300 oil machine:

1. Large screw: This part adopts Wuyang material, high quliaty steel and big hardness to ensure the long service life and safety of user.



2. Pressure gauge with electric contact: It can control the pressure to ensure the safty of operation people.



3. Motor shield: The motor shield can avoid damage to the motor from outside.



Big Capacity Auto 6yy-300 Industrial Oil Press Machine Coconut Oil Extractor Machine 3Big Capacity Auto 6yy-300 Industrial Oil Press Machine Coconut Oil Extractor Machine 4

    Large screw                                                  Pressure gauge with electric contact



                                                                            Motor shield



High oil yield reason of big capacity coconut oil extractor machine:

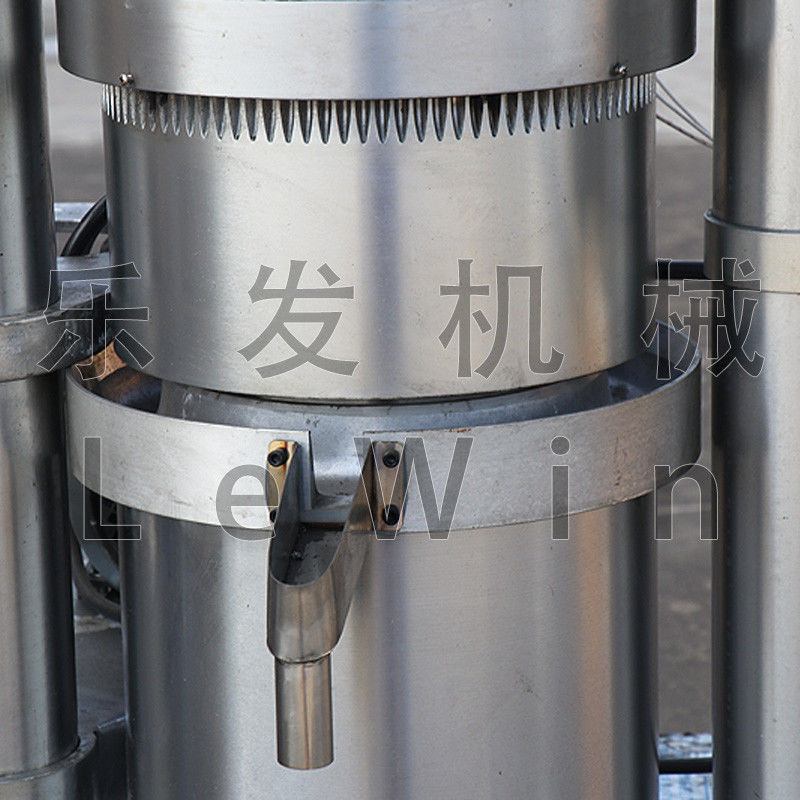

1Oil line: The oil line is smooth, there will be no residual.



2. Pressure gague: It has high working pressure, so it can offer the higher power to press the material to ensure the high oil yield.



3. Solid piston: It can press material clean to get more oil.



4. Hydraulic tank: It can provide the high power to press the raw material to ensure the high oil yield.



Big Capacity Auto 6yy-300 Industrial Oil Press Machine Coconut Oil Extractor Machine 5Big Capacity Auto 6yy-300 Industrial Oil Press Machine Coconut Oil Extractor Machine 6

                             Smooth oil line                                            High working pressure



Big Capacity Auto 6yy-300 Industrial Oil Press Machine Coconut Oil Extractor Machine 7Big Capacity Auto 6yy-300 Industrial Oil Press Machine Coconut Oil Extractor Machine 8

                             Solid piston                                                   Hydraulic tank




IV. Service
1.Offer the best solution for you.


2. Accpet visiting factory.


3. Testing machine for you.


4. Always online to help you.


5. Delivery products immediately after receipt tje payment.


6. Change voltage according to your needs.


7. Operation manual, operation video and install video.

Big Capacity Auto 6yy-300 Industrial Oil Press Machine Coconut Oil Extractor Machine 9




V. Packing & Delivery



1. Packing:

Wooden case package with film.



2. Delivery:

- By sea.

-7-10 working days.

Big Capacity Auto 6yy-300 Industrial Oil Press Machine Coconut Oil Extractor Machine 10
