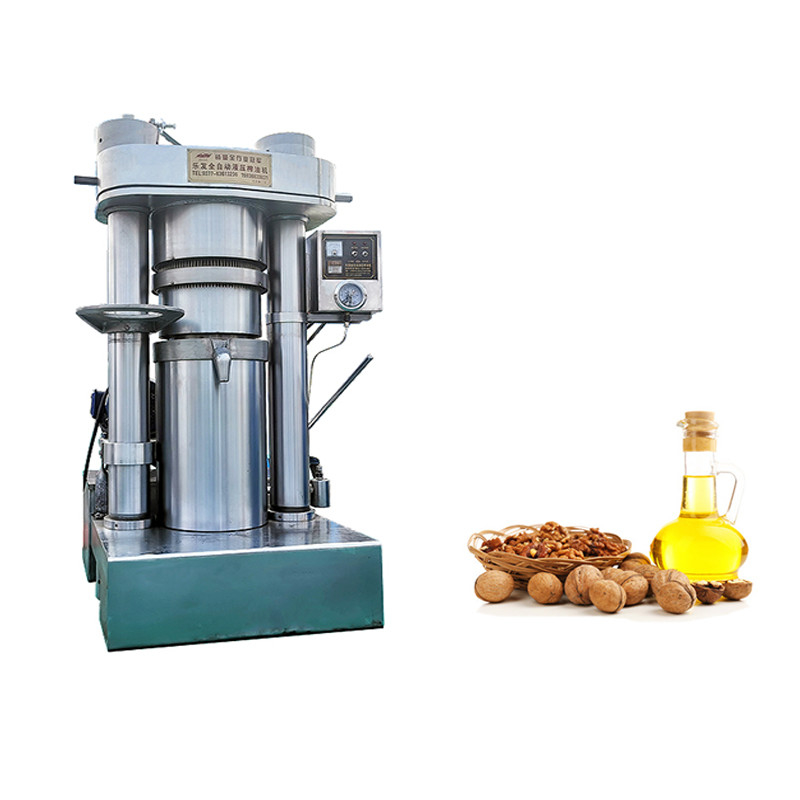

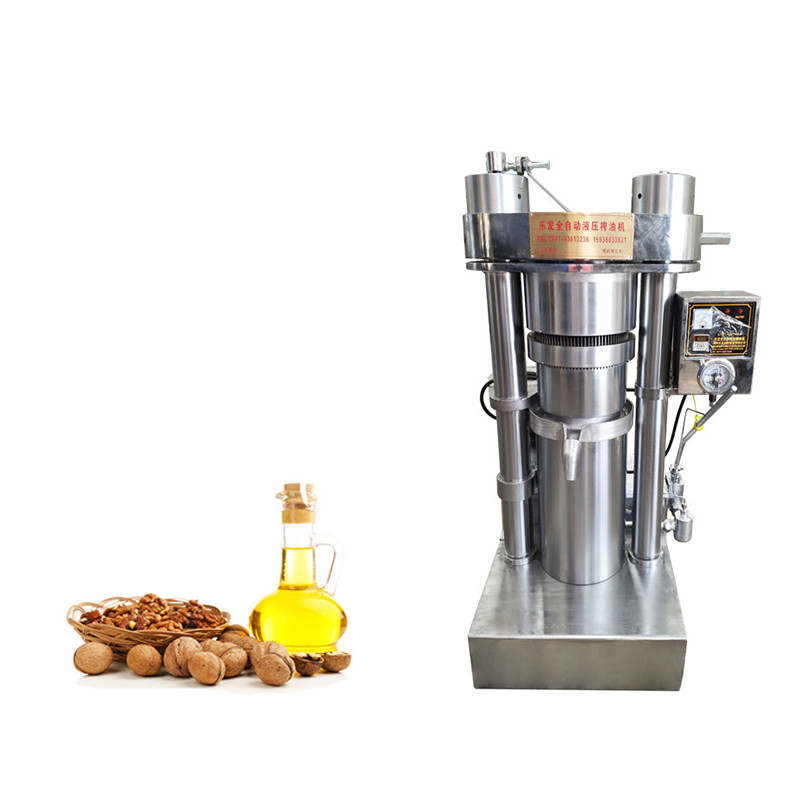

walnut oil making hydraulic deep drawing press machine for small oil plant
Details of walnut oil making hydraulic machine:
1.◆Machine structure: Alloy steel is adopted to ensure the pressure endurance of our machine and the service life of the machine.
2.Working principle :
The hydraulic system provides main power for the machine to pushes the piston in the hydraulic press chamber to extrude the material upward, which is blocked by the top cover, so the material is extruded out of oil.
3.◆Main parameters:
| Model | 6YY-230a | |
|
Capacity (kg/h) |
30-65 |
|
| Max working pressure | 60Mpa | |
| Weight (kgs) | 924 | |
|
Power (kw) |
1.1 | |
|
Dimension (mm) |
670*950*1460 |
|
| Oil cake diameter | 230mm | |
| Residual oil rate | ≤6 | |
4.◆Apply to the material: Widely used to press various kinds of oil materials, like coconut, olive, camellia, avocado, mustard seed. If you have special materials, we provide testing servie for free.
5.◆Pre-service :
①We will test and adjust before we send the machine, make sure it can be used with confidence after receiving it.
②We accept the customized model.
③Our machine will be packaged by standard export wooden case with film to ensure the machine intact.
6.◆After-service :
①The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person )
②After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
③During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
④During guarantee period, the seller will not provide service of with compensation as follows:
(1)The damage caused by person ;(2)The damage caused by improper operating.
7.◆Our story:
Lewin has been devoted to Manufacture, Research & Development, Sale and Export for over 20 years.Backed by scientific research institutes , adopt the advanced technology at home and abroad,build a whole production line for the oil press machine. And has independent intellectual property rights. Quality products & Best service,welcome the customers all over the world.
Welcome consult us for the oil extraction!
