Sunflower 23kg/Batch 3kw Hydraulic Oil Press Machine

Minimum Order Quantity : 1set Packaging Details : Film packaging+wooden case
Delivery Time : 3-10 working days Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 300 sets/month
Place of Origin: China Brand Name: Lewin
Certification: ISO CE Model Number: 6YY-355

Detail Information

Name: Hydraulic Oil Expeller Machine Model: 6YY-230A
Weight: 924 Kg Working Power: 1.1kw
Capacity: 23kg/batch Pressure: 60Mpa
Cake Diameter: 355mm Machine Materials: Earospace Steel
Advantage: High Oil Yield Feature: Long Service Life
Color: Silver Warranty: 1 Year
Keywords: Oil Press Machine
High Light:

3kw Hydraulic Oil Press Machine


23kg/Batch Hydraulic Oil Press Machine


60Mpa Sunflower Oil Press Machine

Product Description

Automatic Oil Press Machine Used Sesame Soybean Sunflower Hydraulic Oil Pressers For 3kw​

1.Our hydraulic oil press machine applied the supercharged technology and five class safety protection system, offer the enough pressure and keep the machine working safety.
2.Separately and more perfect oil line technology applied, keep the press kettle strong enough and increase the oil yield.
3.High precision structure hydraulic system suppose higher pressure.
4.Full automatic hydraulic oil press which is most convenient in operation, highest yield efficiency, as well as least replacement spare parts. Only one hydraulic oil press machine, you could get the better oil and easy to operate.

1. The control system: It include thermometer, ammeter, machine and heating switch, and pressure gauge.
    (1). It's easy to operate, one-key operation.
    (2). It's can monitor the system pressure in real time to ensure that the oil machine works smoothly.
2. The hydraulic system of hydraulic oil machine:
    (1) It is the core part of our oil mill machine which provides enough power for the oil machine to improve the oil productivity and the pressure can  reach 60 Mpa.
    (2) The hydraulic oil can be recycled, it can help you save costs.
3. Precise oil line (0.36mm) : Filter the residue, improve the oil productive, and the oil can reach the edible level directly.
4. Solid piston : Our piston is solid, provide more pressure to the machine, increase the oil rate.
5. Pressure release valve Automatic release system, control the suitable working pressure, press multiple times, improve the oil yield.

Model Pressure (Mpa) Power (kw) Oil cake diameter (mm) Capacity (kg/batch) Dimension (mm3) Weight (kg)
6YY-185 60 1.1 185 4 600*880*1150 590
6YY-230A 60 1.1 230 8.5 670*950*1460 924
6YY-230B 60 1.1 230 9.5 670*950*1560 950
6YY-250 60 1.1 250 11 710*950*1560 1070
6YY-270 60 2.2 270 13.5 750*1010*1640 1230
6YY-300 60 2.2 300 16 1000*1100*1660 1600
6YY-335 60 2.2 335 20 1100*1240*1730 1750
6YY-355 60 3 355 23 1160*1200*1810 2350

If there is no model suitable, we can customize it for you.

Applicable raw materials:
Sunflower 23kg/Batch 3kw Hydraulic Oil Press Machine 0

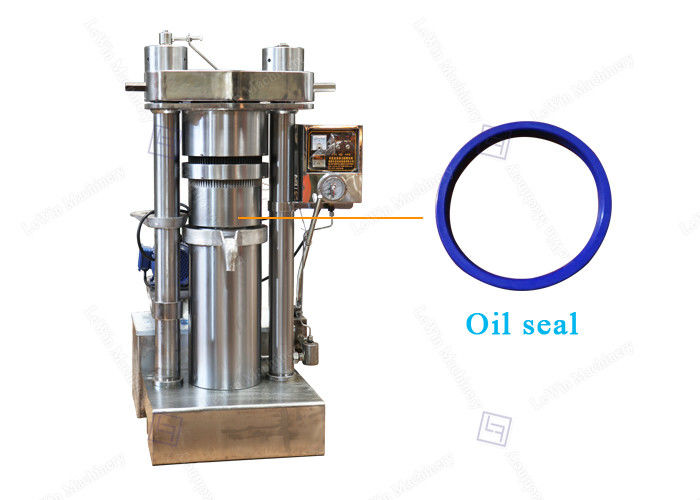

Detailed information:
Sunflower 23kg/Batch 3kw Hydraulic Oil Press Machine 1Sunflower 23kg/Batch 3kw Hydraulic Oil Press Machine 2Sunflower 23kg/Batch 3kw Hydraulic Oil Press Machine 3
Packing and Shipping:
Sunflower 23kg/Batch 3kw Hydraulic Oil Press Machine 4
Sunflower 23kg/Batch 3kw Hydraulic Oil Press Machine 5

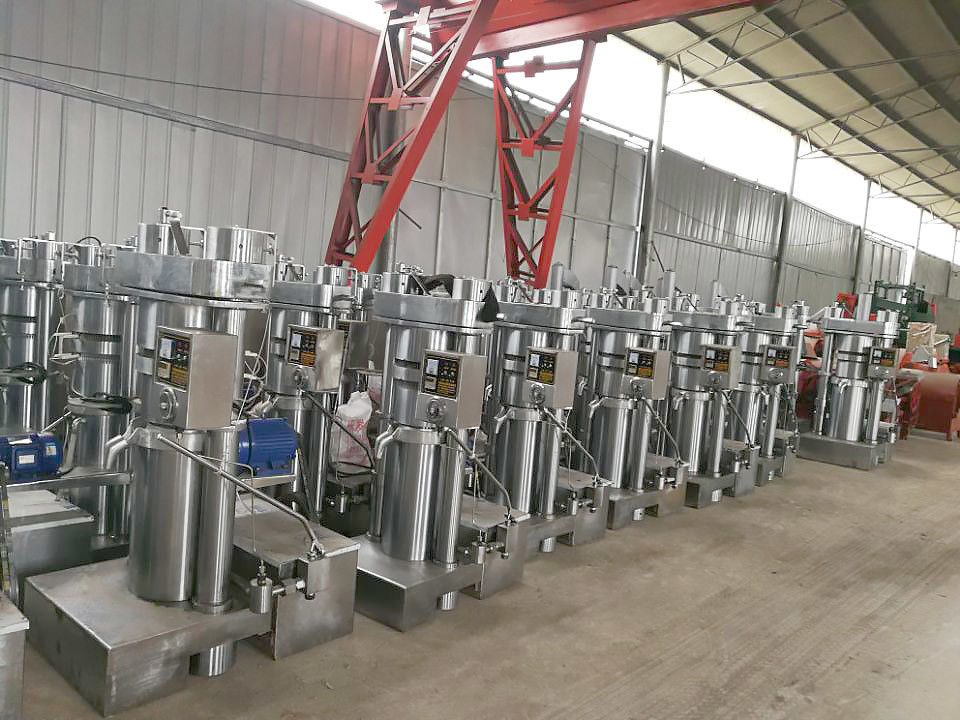

Workshop Display:
Sunflower 23kg/Batch 3kw Hydraulic Oil Press Machine 6
1.Q:Can you guarantee the quality of your machine?
   A:We are a professional manufacturer with strict quality requirements
2.Q:Does your factory accept customization?
   A:As a professional manufacturer, we can do almost any kind of customization.
3. Q:How do I choose a model that suits me ?
    A:You need tell us your oil raw materials and capacity demand etc.
4. Q:How long can I use it?
    A:8-10 yeas, longer service life.
5. Q:What's the delivery time?
    A:Generally after paying the final payment 3-5 days.
Notes: Be careful not to raise the plunger too high when the cake is out, to prevent the hydraulic oil from coming out and the seal ring from being damaged.
