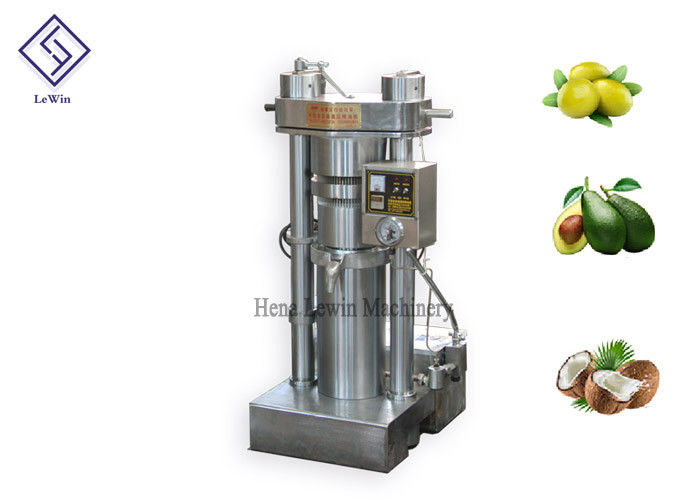

335mm Cake 2.2kw 20kg/Batch Hydraulic Oil Extractor

Minimum Order Quantity : 1set Packaging Details : Film packaging+wooden case
Delivery Time : 3-10 working days Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 300 sets/month
Place of Origin: China Brand Name: Lewin
Certification: ISO CE Model Number: 6YY-335

Detail Information

Name: Hydraulic Oil Expeller Machine Model: 6YY-230A
Weight: 924 Kg Cake Diameter: 335mm
Dimension: 1.1*1.24*1.73m Power: 2.2kw
Capacity: 20kg/batch Machine Materials: Earospace Steel
Advantage: High Oil Yield Feature: Long Service Life
Color: Silver Warranty: 1 Year
High Light:

20kg/Batch Hydraulic Oil Extractor

,

2.2kw Hydraulic Oil Extractor

,

Steel Hydraulic Oil Expeller Machine

Product Description

New Type Hydraulic Oil Presser Automatic Oil Press Machine With Earospace Steel​


Describtion:
1.Our hydraulic oil press machine applied the supercharged technology and five class safety protection system, offer the enough pressure and keep the machine working safety.
2.Separately and more perfect oil line technology applied, keep the press kettle strong enough and increase the oil yield.  High precision structure hydraulic system suppose higher pressure.
3.Small oil press machine manual operation, low price, widely used in family and small oil factory.


Advantages:
1. The control system:
    (1). It include thermometer, ammeter, machine and heating switch, and pressure gauge.
    (2). It's easy to operate, one-key operation.
    (3). It's can monitor the system pressure in real time to ensure that the oil machine works smoothly.
2. The hydraulic system of hydraulic oil machine:
    (1) It is the core part of our oil mill machine which provides enough power for the oil machine to improve the oil productivity and the pressure can  reach 60 Mpa.
    (2) The hydraulic oil can be recycled, it can help you save costs.
3. Precise oil line (0.36mm) : Filter the residue, improve the oil productive, and the oil can reach the edible level directly.
4. Solid piston Higher pressure, pressing more thorough and cleaner./ Our piston is solid, provide more pressure to the machine, increase the oil rate.
5. Pressure release valve Automatic release system, control the suitable working pressure, press multiple times, improve the oil yield.

Parameters:

ModelPressure (Mpa)Power (kw)Oil cake diameter (mm)Capacity (kg/batch)Dimension (mm3)Weight (kg)
6YY-185601.11854600*880*1150590
6YY-230A601.12308.5670*950*1460924
6YY-230B601.12309.5670*950*1560950
6YY-250601.125011710*950*15601070
6YY-270602.227013.5750*1010*16401230
6YY-300602.2300161000*1100*16601600
6YY-335602.2335201100*1240*17301750
6YY-355603355231160*1200*18102350

If there is no model suitable, we can customize it for you.


Detailed information:

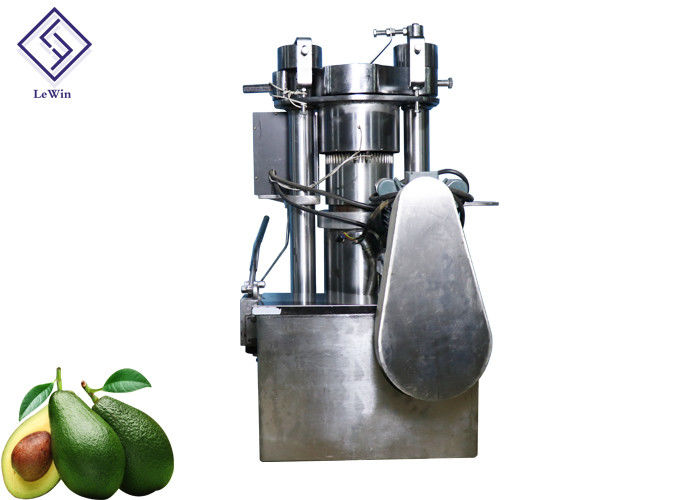

335mm Cake 2.2kw 20kg/Batch Hydraulic Oil Extractor 0335mm Cake 2.2kw 20kg/Batch Hydraulic Oil Extractor 1335mm Cake 2.2kw 20kg/Batch Hydraulic Oil Extractor 2

Packing and Shipping:

335mm Cake 2.2kw 20kg/Batch Hydraulic Oil Extractor 3

Coustermers and Feedback:
335mm Cake 2.2kw 20kg/Batch Hydraulic Oil Extractor 4
335mm Cake 2.2kw 20kg/Batch Hydraulic Oil Extractor 5


About Company :
Since 1998
1. More than 20 years of manufacturing experience, and has 10 years export experience of the machinery equipments .

2.Our main products are hydraulic oil press machine, screw oil press machine, roasting machine and other grain and oil machinery.

3.The professional design R&D team, backed by the university and guided by the market to updated the products.
4.Our products exported to the United States, India, South Korea, Russia, Somalia, Ethiopia, Sudan, Bulgaria and other countries and regions, and got very good reputation.


Workshop Display:
335mm Cake 2.2kw 20kg/Batch Hydraulic Oil Extractor 6

FAQ:
1.Q:Can you guarantee the quality of your machine?
   A:We are a professional manufacturer with strict quality requirements

2.Q:Does your factory accept customization?
   A:As a professional manufacturer, we can do almost any kind of customization.

3. Q:How do I choose a model that suits me ?
    A:You need tell us your oil raw materials and capacity demand etc.
4. Q:How long can I use it?
    A:8-10 yeas, longer service life.

5. Q:What's the delivery time?
    A:Generally after paying the final payment 3-5 days.

Notes: Be careful not to raise the plunger too high when the cake is out, to prevent the hydraulic oil from coming out and the seal ring from being damaged.
