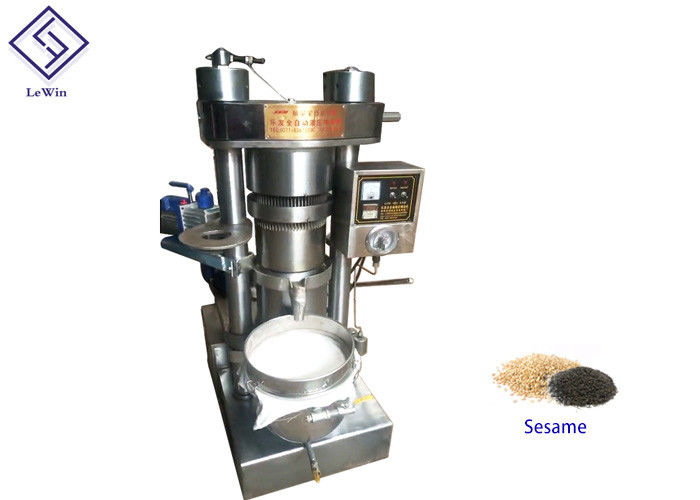

1.1kw 9.5kg/Batch Hydraulic Sesame Oil Press Machine

Minimum Order Quantity : 1set Packaging Details : Film packaging+wooden case
Delivery Time : 3-10 working days Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 300 sets/month
Place of Origin: China Brand Name: Lewin
Certification: ISO CE Model Number: 6YY-250

Detail Information

Model: 6YY-250 Name: Hydraulic Oil Press Machine
Power: 1.1kw Weight: 1070kg
Pressure: 60Mpa Cake Diameter: 230mm
Capacity: 9.5kg/batch Machine Materials: Earospace Steel
Advantage: High Oil Yield Characteristic: Long Service Life
Keyworlds: Oil Extraction Machine Voltage: 380V/220V Optional
High Light:

Hydraulic Sesame Oil Press Machine

,

9.5kg/Batch Sesame Oil Press Machine

,

1.1kw Oil Squeezing Machine

Product Description

6YY-250 cold and hot press 11kg per batch hydraulic oil pressers for sesame and cotton seed ​


Describtion:
Our hydraulic oil press machine applied the supercharged technology and five class safety protection system, offer the enough pressure and keep the machine working safety. Separately and more perfect oil line technology applied, keep the press kettle strong enough and increase the oil yield.  High precision structure hydraulic system suppose higher pressure.



Parameters:

Model Pressure (Mpa) Power (kw) Oil cake diameter (mm) Capacity (kg/batch) Dimension (mm3) Weight (kg)
6YY-185 60 1.1 185 4 600*880*1150 590
6YY-230A 60 1.1 230 8.5 670*950*1460 924
6YY-230B 60 1.1 230 9.5 670*950*1560 950
6YY-250 60 1.1 250 11 710*950*1560 1070
6YY-270 60 2.2 270 13.5 750*1010*1640 1230
6YY-300 60 2.2 300 16 1000*1100*1660 1600
6YY-335 60 2.2 335 20 1100*1240*1730 1750
6YY-355 60 3 355 23 1160*1200*1810 2350

If there is no model suitable, we can customize it for you.




Advantages:
1. The control system:
    (1). It include thermometer, ammeter, machine and heating switch, and pressure gauge.
    (2). It's easy to operate, one-key operation.
    (3). It's can monitor the system pressure in real time to ensure that the oil machine works smoothly.
2. The hydraulic system of hydraulic oil machine:
    (1) It is the core part of our oil mill machine which provides enough power for the oil machine to improve the oil productivity and the pressure can  reach 60 Mpa.
    (2) The hydraulic oil can be recycled, it can help you save costs.
3. Precise oil line (0.36mm) : Filter the residue, improve the oil productive, and the oil can reach the edible level directly.
4. Solid piston Higher pressure, pressing more thorough and cleaner./ Our piston is solid, provide more pressure to the machine, increase the oil rate.
5. Pressure release valve Automatic release system, control the suitable working pressure, press multiple times, improve the oil yield.



1.1kw 9.5kg/Batch Hydraulic Sesame Oil Press Machine 0

Detailed information:
1.1kw 9.5kg/Batch Hydraulic Sesame Oil Press Machine 11.1kw 9.5kg/Batch Hydraulic Sesame Oil Press Machine 21.1kw 9.5kg/Batch Hydraulic Sesame Oil Press Machine 3

Packing and Shipping:

1.1kw 9.5kg/Batch Hydraulic Sesame Oil Press Machine 4

Coustermers :
1.1kw 9.5kg/Batch Hydraulic Sesame Oil Press Machine 5

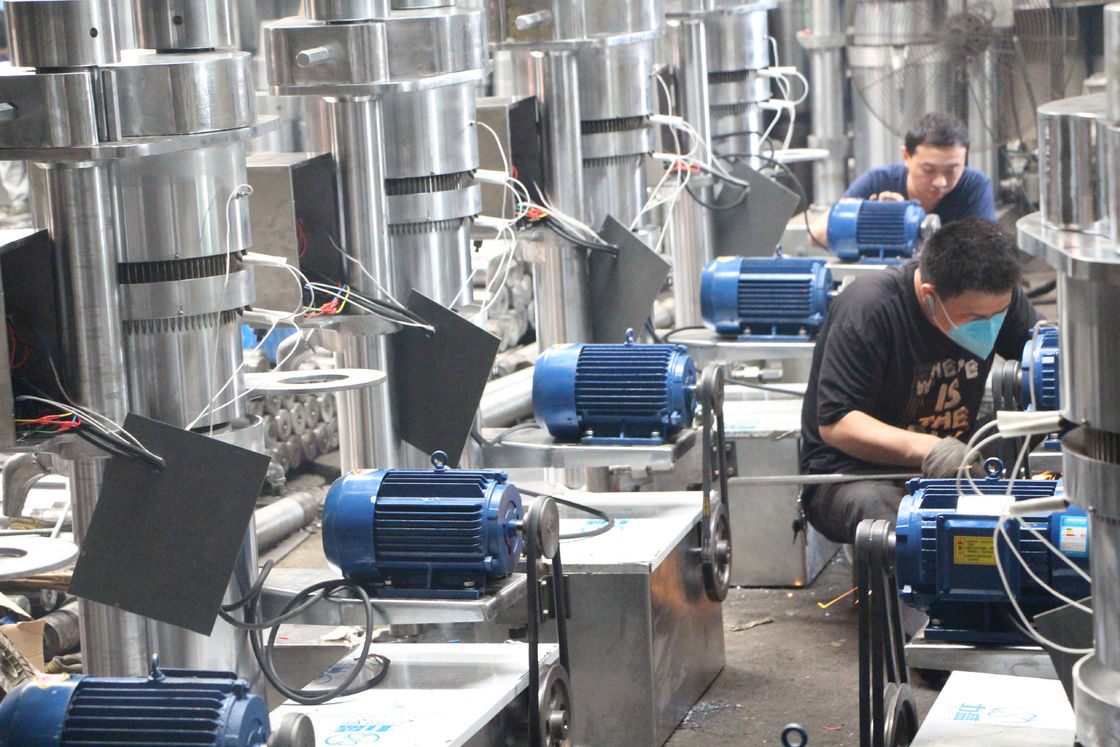

Workshop Display:
1.1kw 9.5kg/Batch Hydraulic Sesame Oil Press Machine 6

FAQ:
1.Q:Can you guarantee the quality of your machine?
   A:We are a professional manufacturer with strict quality requirements

2.Q:Does your factory accept customization?
   A:As a professional manufacturer, we can do almost any kind of customization.

3. Q:How do I choose a model that suits me ?
    A:You need tell us your oil raw materials and capacity demand etc.


4. Q:How long can I use it?
    A:8-10 yeas, longer service life.

5. Q:What's the delivery time?
    A:Generally after paying the final payment 3-5 days.

Notes: Be careful not to raise the plunger too high when the cake is out, to prevent the hydraulic oil from coming out and the seal ring from being damaged.
