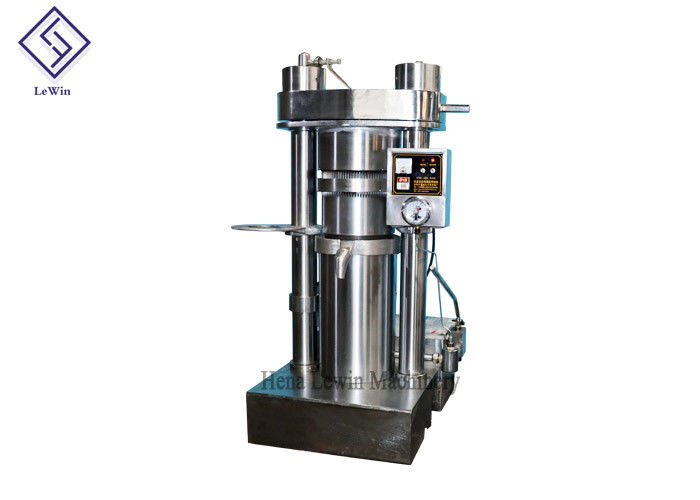

4kg/Batch 1.1kw 60Mpa Hydraulic Mustard Oil Expeller

4kg/Batch 1.1kw 60Mpa Hydraulic Mustard Oil Expeller

60Mpa Mustard Oil Expeller

Hydraulic Mustard Oil Expeller

Place of Origin:

China

Brand Name:

Lewin

Certification:

ISO CE

Model Number:

6YY-185

Contact Us

Request A Quote
Product Details
Name:
Hydraulic Oil Expeller Machine
Model:
6YY-185
Weight:
590 Kg
Power:
1.1kw
Pressure:
60Mpa
Cake Diameter:
185mm
Capacity:
4kg/batch
Materials:
Earospace Steel
Advantage:
High Oil Yield
Feature:
Long Service Life
Payment & Shipping Terms
Minimum Order Quantity
1set
Packaging Details
Film packaging+wooden case
Delivery Time
3-10 working days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
300 sets/month
Product Description
6YY-185 mustard oil expeller for high yield olive oil pressure machine hydraulic oil extracting machine



Describtion:

1. Our hydraulic oil press machine applied the supercharged technology and five class safety protection system, offer the enough pressure and keep the machine working safety.

2. High precision structure hydraulic system suppose higher pressure.

3. Separately and more perfect oil line technology applied, keep the press kettle strong enough and increase the oil yield.



Advantages:

1. The control system:

    (1). It include thermometer, ammeter, machine and heating switch, and pressure gauge.

    (2). It's easy to operate, one-key operation.
    (3). It's can monitor the system pressure in real time to ensure that the oil machine works smoothly.

2. The hydraulic system of hydraulic oil machine:

    (1) It is the core part of our oil mill machine which provides enough power for the oil machine to improve the oil productivity and the pressure can  reach 60 Mpa.

    (2) The hydraulic oil can be recycled, it can help you save costs.

3. Precise oil line (0.36mm) : Filter the residue, improve the oil productive, and the oil can reach the edible level directly.

4. Solid piston Higher pressure, pressing more thorough and cleaner./ Our piston is solid, provide more pressure to the machine, increase the oil rate.

5. Pressure release valve Automatic release system, control the suitable working pressure, press multiple times, improve the oil yield.



Parameters:

Model Pressure (Mpa) Power (kw) Oil cake diameter (mm) Capacity (kg/batch) Dimension (mm3) Weight (kg)
6YY-185 60 1.1 185 4 600*880*1150 590
6YY-2340A 60 1.1 230 8.5 670*950*1460 924
6YY-230B 60 1.1 230 9.5 670*950*1560 950
6YY-250 60 1.1 250 11 710*950*1560 1070
6YY-270 60 2.2 270 13.5 750*1010*1640 1230
6YY-300 60 2.2 300 16 1000*1100*1660 1600
6YY-335 60 2.2 335 20 1100*1240*1730 1750
6YY-355 60 3 355 23 1160*1200*1810 2350

If there is no model suitable, we can customize it for you.



Detailed information:

4kg/Batch 1.1kw 60Mpa Hydraulic Mustard Oil Expeller 04kg/Batch 1.1kw 60Mpa Hydraulic Mustard Oil Expeller 14kg/Batch 1.1kw 60Mpa Hydraulic Mustard Oil Expeller 2



Packing and Shipping:



4kg/Batch 1.1kw 60Mpa Hydraulic Mustard Oil Expeller 3



Coustermers and Feedback:

4kg/Batch 1.1kw 60Mpa Hydraulic Mustard Oil Expeller 4

4kg/Batch 1.1kw 60Mpa Hydraulic Mustard Oil Expeller 5

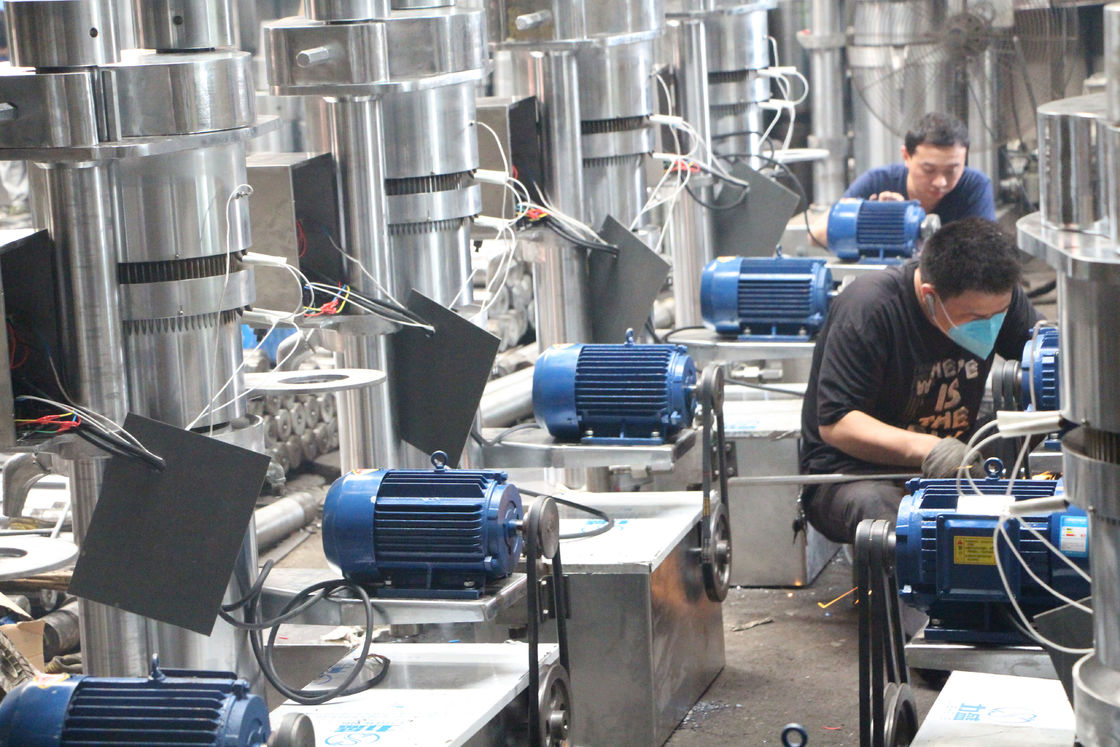

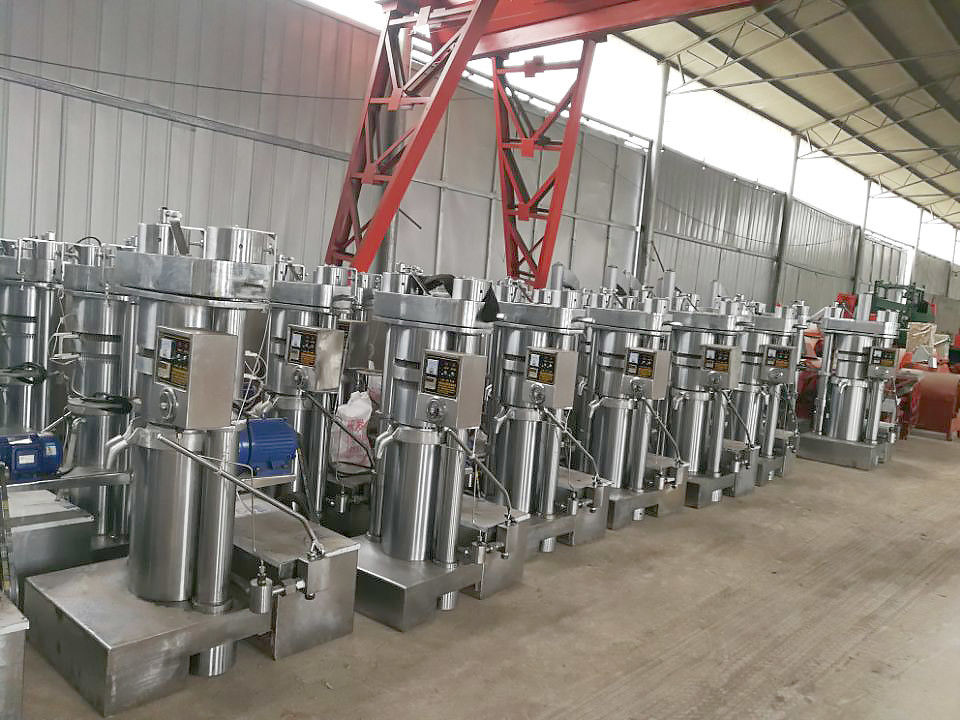

Workshop Display:

4kg/Batch 1.1kw 60Mpa Hydraulic Mustard Oil Expeller 6



FAQ:

1.Q:Can you guarantee the quality of your machine?
   A:We are a professional manufacturer with strict quality requirements



2.Q:Does your factory accept customization?
   A:As a professional manufacturer, we can do almost any kind of customization.


3. Q:How do I choose a model that suits me ?
    A:You need tell us your oil raw materials and capacity demand etc.


4. Q:How long can I use it?
    A:8-10 yeas, longer service life.



5. Q:What's the delivery time?

    A:Generally after paying the final payment 3-5 days.



Notes: Be careful not to raise the plunger too high when the cake is out, to prevent the hydraulic oil from coming out and the seal ring from being damaged.
