Place of Origin:
China, Henan
Brand Name:
Lewin
Certification:
CE ISO
Model Number:
6YY-230A
Contact Us
Video

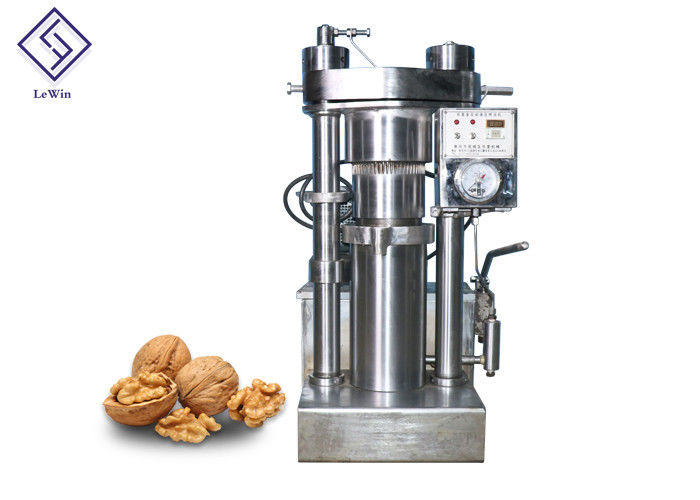

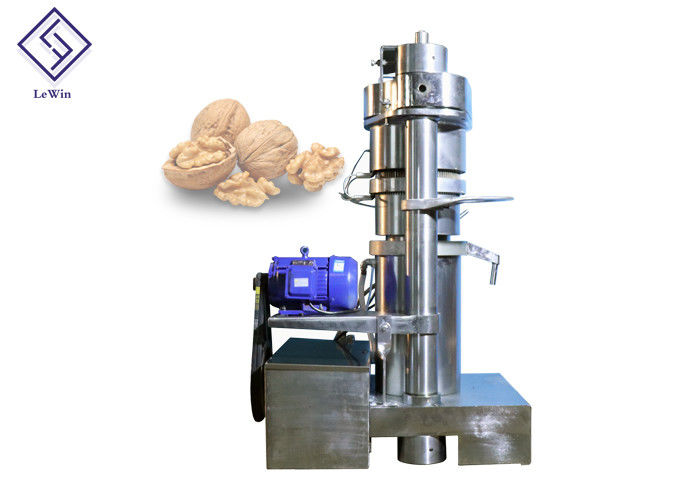

This hydraulic oil press machine use our new technology that can press raw materials better and improves the oil rate.
1. Our Hydraulic oil Press machine can work both hot and cold press,and protect the quality of the oil.
2. The material of our machine is alloy and carbon steel,ensure the hardness and good quality of the machine.
3. The pressure gauge control the working pressure ,it will stop working if the pressure over the set date,keep safety and protect the machine and worker.
4. The control system can operate easily and save labor.
| Model | Weight | Pressure | Power | Oil cake diameter | Capacity | Dimension |
|---|---|---|---|---|---|---|
| 6YY-230A | 924kg | 60Mpa | 1.1kw | 230mm | 8.5kg/batch | 670*950*1460(mm) |
This machine applied our new supercharged technology and five class safety protection system ,offer enough pressure and keep the machine working safety. High precision structure hydraulic box can over higher pressure,Separately and more perfect oil line technology applied,keep the press kettle strong enough and increase the oil yield.
Our machine can apply to many kinds of different materials,such as rapeseed,soybean,peanut,flax seed, sesame etc.
different raw materials have different oil rate in different temperature, you can tell us our salesman your local pressure, temperature, frequent raw materials.
*we also offer the testing service for the special materials you offer to us.
High oil yield, high oil quality, can be eaten directly, no waste of materials, and can be pressed twice
If you want to squeeze more oil cakes to sell to feed mills, you can squeeze once. If you want more oil, you can achieve multiple presses to increase oil yield.
After buying our machine we will send you specific video of operating steps and product manual.
HIgh quality and strong steel of the big nut with long uselife, improve the working efficiency and protect the machine well.
Only two buttons control the whole working pressure and temperature, easy to operate. The buttons was test very strictly before shipping, make sure it safety and long uselife.
Perfect oil line, high quality steel and special heating treatment make it stronger enough and safety.
New designed working table to put the filter pad, make the pressing more convenience.
Control the working pressure, it will stop the machine if the pressure over than the set date, keep safty and protect the machine.
The core part of the machine which offers the main power for the machine. The max working pressure can be reached 60Mpa.
Offer the power to hydrauli box. Can be adjusted according to your local voltage.
These consumables have a short life and the machine requires regular cleaning and maintenance to maintain a long life. A set of wearing parts is given to one machine. If you want to change the wearing parts in the future, you can purchase them from our company at a low price.
1.Visit our factory
2.Support online guide
3.Accept customer-made
1.Support online guide
2.Exchange Vulnerable Parts for a low price
3.Inquiry about the machine for free
We use wooden boxes to pack the machine, which can reduce the wear and tear on the machine, thus protecting the machine. If the customer has their own needs, we can customize the packaging according to the customer's demands.
We use wooden boxes to pack the machine, which can reduce the wear and tear on the machine, thus protecting the machine. If the customer has their own needs, we can customize the packaging according to the customer's demands.
