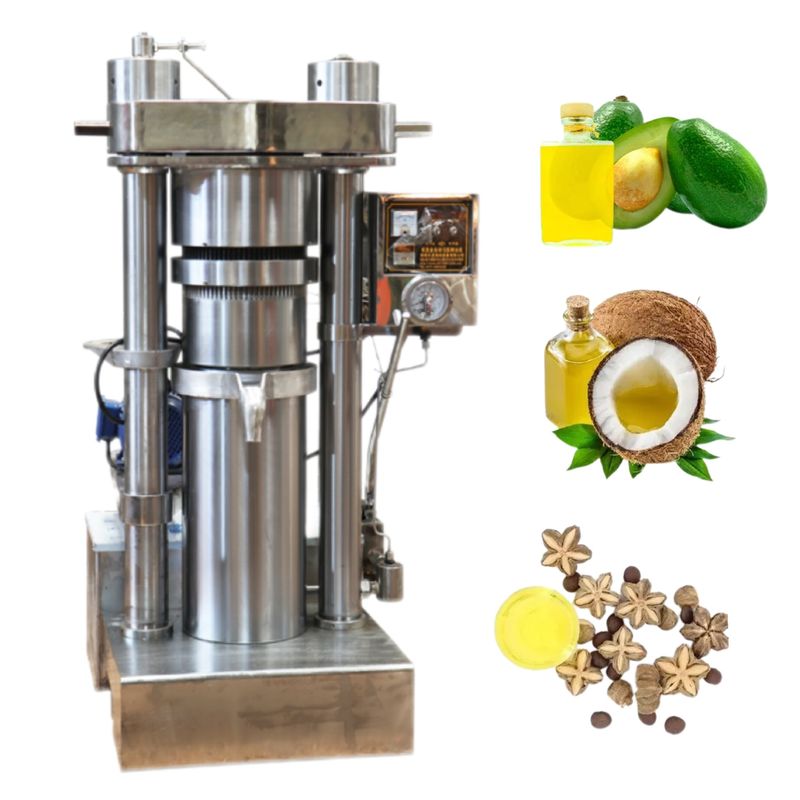

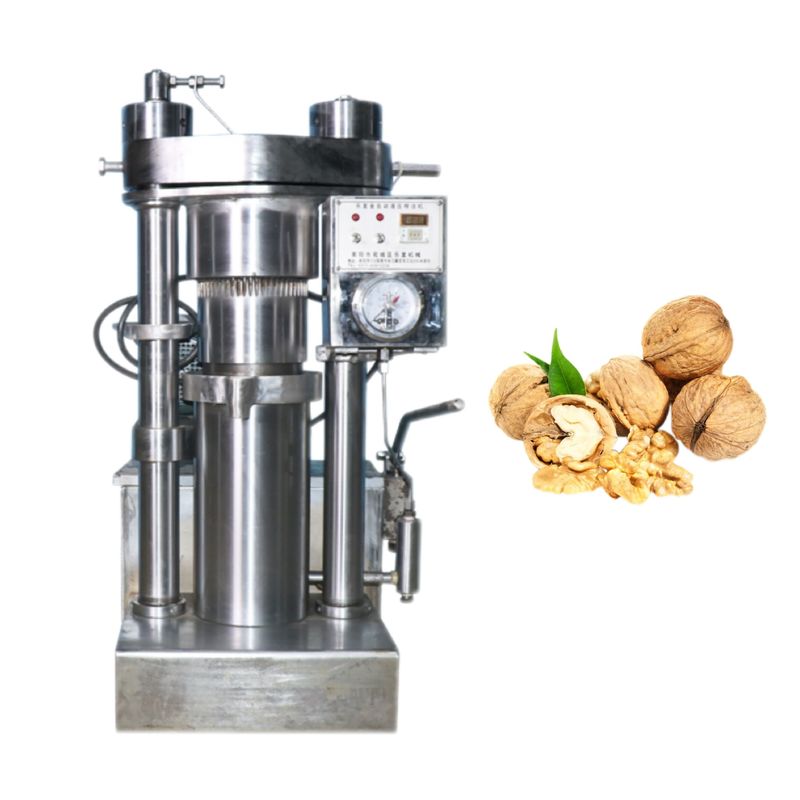

60 Mpa Working Pressure Cold Press Oil Extractor Hydraulic Oil Expeller Machine
I. Our production
1. Our hydraulic machine can cold and hot press oil seeds, if cold press without heating, the temperature is same as indoor temperature to protect the nutrient content.
2. The pressure of our machine is 60Mpa, can get more oil than other similar machines.
3. Our machine is fully automatic, when you put the material into the press kettle, you can do other things.
4. This is can be used for factory and home.
5. Our machine no need filter, the oil can reach food grade level directly.
Technology Parameter
| Modle |
Capacity (kg/batch) |
Weight (kg) |
Power | Working pressure | Dimension(m) | Residual oil |
| 6YY-185 | 4 | 590 | 1.1 kw | 60 MPa | 0.6*0.88*1.15 | ≤5% |
| 6YY-230 A | 8.5 | 924 | 1.1 kw | 60 MPa | 0.67*0.95*1.46 | ≤5% |
| 6YY-230 B | 9.5 | 950 | 1.1 kw | 60 MPa | 0.67*0.95*1.56 | ≤5% |
| 6YY-250 | 11 | 1070 | 1.1 kw | 60 MPa | 0.71*0.95*1.56 | ≤5% |
| 6YY-270 | 13.5 | 1230 | 2.2 kw | 60 MPa | 0.75*1.01*.164 | ≤5% |
| 6YY-300 | 16 | 1600 | 2.2 kw | 60 MPa | 1*1.1*1.66 | ≤5% |
| 6YY-335 | 20 | 1750 | 2.2 kw | 60 MPa | 1.1*.124*1.73 | ≤5% |
| 6YY-355 | 23 | 2350 | 3.0 kw | 60 MPa | 1.16*1.2*1.81 |
≤5% |
Main structures
Oil rate paremeter:
II. Why choose us
Quality assured of our oil machine:
1. Large screw: It adopts Wuyang material, high quliaty steel and big hardness to ensure the long service life and safety of user.
2. Pressure gauge with electric contact: It can control the pressure to ensure the safty of operation people.
3. Motor shield: The motor shield can avoid damage to the motor from outside.
High oil yield reason:
1. Oil line: The oil line is smooth, there will be no residual.
2. Pressure gague: It has high working pressure, so it can offer the higher power to press the material to ensure the high oil yield.
3. Solid piston: It can press material clean to get more oil.
4. Hydraulic tank: It can provide the high power to press the raw material to ensure the high oil yield.
III. Company
IV. Service
1.Offer the most suitable solution for you.
2. Visiting our factory.
3. Testing machine for you.
4. Always online to help you.
5. Delivery products immediately after receipt tje payment.
6. Change voltage according to your needs.
7. Operation manual, operation video and install video.
V. Packing & Delivery
1. Packing:
Wooden case package with film.
2. Delivery:
- By sea.
-7-10 working days.
