Powerful Cooking Oil Filter Machine / Oil Filtration Equipment 20 - 30kg / Batch Capacity

Powerful Cooking Oil Filter Machine / Oil Filtration Equipment 20 - 30kg / Batch Capacity

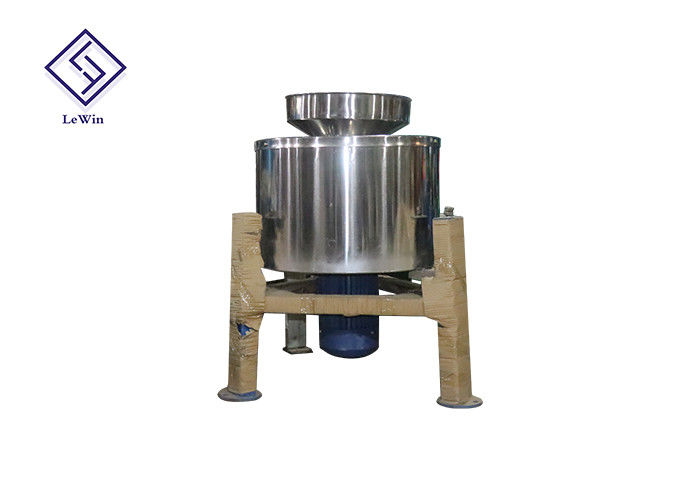

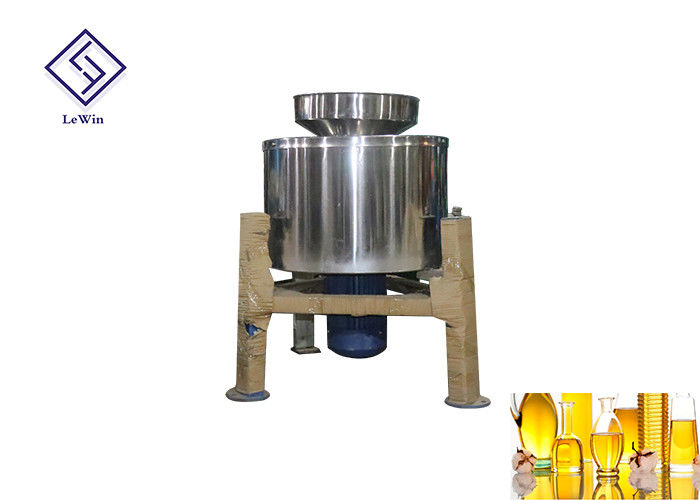

Powerful Cooking Oil Filter Machine

Oil Filtration Equipment 20kg / Batch

Oil Filtration Equipment 30kg / Batch

Place of Origin:

China

Brand Name:

Lewin

Certification:

ISO

Model Number:

LF60B

Contact Us

Request A Quote
Product Details
Production Name:
Powerful Centrifugal Oil Filter Remove Impurity From Crude Oil Sesame Oil Filter
Model:
LF60B
Dimension:
800*700*1000mm
Weight:
200kg
Capacity:
20-30kg/batch
Power:
3 Kw
Voltage:
380v
Application:
Edible Oil
Color:
Blue Sliver/ Customized
Warranty:
1 Year
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case with film/Customized
Delivery Time
5-7 working day
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

Product Description



Powerful centrifugal oil filter remove impurity from crude oil sesame oil filter

1. oil filter machine used for :Rapeseed,seed,soybean, peanut, pepperseed,sunflower, cottonseed,tallow treeseeds,tung treeseeds, corn,sesame,walnut and so on.

2. High degree of automation, multi-use of one machine. Filter oil machine is mainly ACTS on the cooking oil, vegetable oil, is an essential part of auxiliary engine oil press . filter out oil impurities.

3. Keeping quality safe and secure . High efficient , economic , cost is low .

4. Reasonable structure design, suitable for mobile use or online



Main parameter:


1. we have two model of this oil filter machine.
2. If you have other needs, we can also customize for you.



Model LF60B LF100
Power 3kw 3kw
Voltage 380v 380v
Capacity 25-30kg/batch 40-50kg/batch
Weight 110kg 200kg
Dimension 800x800x900mm

800x700x1000mm





Main Features



Advanced molecule demulsification filter element instead of traditional additive and glass fiber demulsification. Coalescence separation technology ordinary pressure.Special vacuum negative pressure dehydration system.Purification: nets filtering combined with macromolecule adsorption.It takes about 3-5 minutes one time,high speed



centrifugal oil filterworking principle



centrifugal oil filter/cooking oil filter/malaysia oil filter using centrifugal principle, the principle of the motor rotation speed of different material layers. centrifugal oil filter/cooking oil filter/malaysia oil filter in the filtration of edible oil, sludge will and attached to the inner barrel wall, oil in the inner layer, when the motor stops rotating, the oil will be the first out.



centrifugal oil filter/cooking oil filter/malaysia oil filter applicable to power plants, ships, large machinery and equipment lubricating oil, heavy diesel oil and edible rape seed oil, tea oil, peanut oil, soybean oil, cottonseed oil, sunflower oil edible oil purification treatment.



Advantage:



1, the filtration speed is fast, can be filtered 4-5 times per hour, can process 25-30 kg or 40-50 kg each time, easy to operate.

2. Compared with other equipment, long-term use does not require any consumables, including filter cloth cleaning and filter cloth cleaning.

3. Power saving, start the power supply, add the oil, rotate at high speed, use the centrifugal force generated by the drum to filter the oil, disconnect the power supply, and the net oil flows out after the drum is stationary.

4, the use effect is better than all other filtering equipment, such as the trouble of replacing the filter cloth and filter cloth with the frame filter oil filter, the danger of pressure filtration overpressure detonation and the defect that the sludge is too much to open repeatedly, use this centrifugal filter The machine has no consumables to purchase, saves electricity and saves time, has good effect, high oil purity, clear color, can be directly sold in cans or directly consumed.



Powerful Cooking Oil Filter Machine / Oil Filtration Equipment 20 - 30kg / Batch Capacity 0

Powerful Cooking Oil Filter Machine / Oil Filtration Equipment 20 - 30kg / Batch Capacity 1

Powerful Cooking Oil Filter Machine / Oil Filtration Equipment 20 - 30kg / Batch Capacity 2
