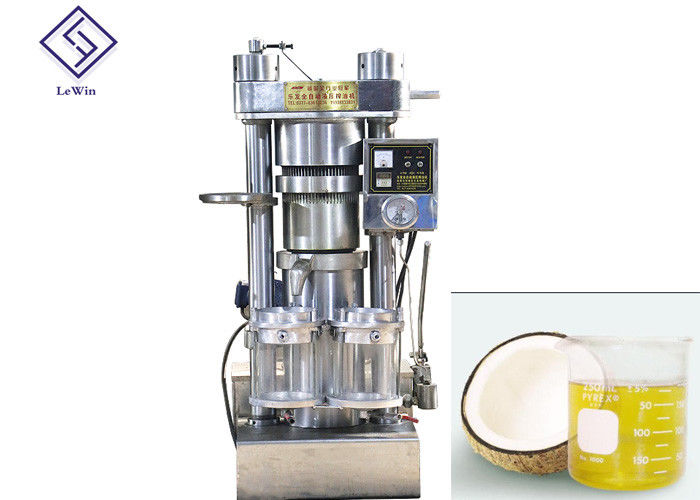

Durable Performance Sesame Oil Press Machine Hydraulic Oil Extractor 8.5 Kg / Batch Capacity

Durable Performance Sesame Oil Press Machine Hydraulic Oil Extractor 8.5 Kg / Batch Capacity

cold press expeller machine

hydraulic oil extractor

electric oil press machine

Place of Origin:

Henan province, china

Brand Name:

Lewin

Certification:

CE ISO

Model Number:

6YY-230 A

Contact Us

Request A Quote
Product Details
Keyword:
Hydraulic Oil Pressing Machine
Material:
Alloy Steel
Weight:
924kg
Size:
670*950*1460 Mm
Capacity:
8.5 Kg/batch
Advantages:
Simple Operation
Pressure:
60 MPa
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case with film
Delivery Time
5-7working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

Hydraulic oil milling machine for cold pressing coconut oil machinery

What is hydraulic oil press machine?

1. This oil press machine with cold and hot pressing function,is suitable for various raw materials such as soybeans ,sesame,sunflowers,rapeseed,avocado,mustard,camellia,coconut and so on.

2. It is beautiful and generous, economical and environmental protection,stable and durable performance.

How does it work?

The working principle is that the when the oil material is put into the assembly of the press boring, then it being driven up by the oil cylinder piston, oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.



Parameters

Model 6YY-185 6YY-230A 6YY-250 6YY-300 6YY-335
Weight 550kg 924kg 1070kg 1600kg 1750kg
vacuum Power 1.1kw 1.1kw 1.1kw 2.2kw 2.2kw
3phase 2.2kw 2.2kw 2.2kw 4.0kw 4.8kw
Working pressure 60MPa 60MPa 60MPa 60MPa 60MPa
Capacity  4kg/batch 8.5kg/batch 11kg/batch 16kg/batch 20kg/batch
Dimension(mm)

600*880*1150

670*950*1460
710*950*1560
1000*1100*1660
1100*1240*1730





Seeds application of hydraulic oil making machine

Durable Performance Sesame Oil Press Machine Hydraulic Oil Extractor 8.5 Kg / Batch Capacity 0

If you want to process other special raw material, please cantact us to ensure.

Durable Performance Sesame Oil Press Machine Hydraulic Oil Extractor 8.5 Kg / Batch Capacity 1

Our oil press has many advantages, as follows:
1. High oil yield, 30% higher oil yield than old equipment, and considerable economic net profit.
2. Labor saving, the same output can save labor, one to two people can produce.
3. It has high pressure, the pressure of our machine is 60Mpa, higher than other machine(the normal is 45Mpa to 55Mpa), provide higher oil yield.

4. This machine can work continuously for 24 hours. It can squeeze 4-23 kilogram per batch, the time of pressing is 4 to 15 minutes.

5.Multiple protection measures to protect the safety of machines and operators.





Simple operation

Our machine operation is very simple, one can operate it. And we can provide manual and operation video for your reference, if possible, we can also arrange engineers to go to guide.

Durable Performance Sesame Oil Press Machine Hydraulic Oil Extractor 8.5 Kg / Batch Capacity 2

Our service

Provide quality service

1. Befor-sale services: we guide clients to choose the best and suitable mchine, provide the advance, energy-saving and practical technological process. At the same time, we are responsible for the planing and design the machine.
2. Sale service: Products must be inspected strictly before being sold,clients are invited to simulate and test machine on the spot; in accordance with the agreements stipulated in the contract, and then we are arrange delivery the machine.
3. After-sale service: Our company will offer the professional engineer to guide installation,training how to operation the machine. We are confrim that our clients can use the machine well and bring more and more befit to them.

4. We are design and product machines according to the speciall requirement by clients.

Durable Performance Sesame Oil Press Machine Hydraulic Oil Extractor 8.5 Kg / Batch Capacity 3

Packing and shipping

We have in enough stock and can arrange shipping for you as soon as possible.

Durable Performance Sesame Oil Press Machine Hydraulic Oil Extractor 8.5 Kg / Batch Capacity 4

Company information

Durable Performance Sesame Oil Press Machine Hydraulic Oil Extractor 8.5 Kg / Batch Capacity 5

Durable Performance Sesame Oil Press Machine Hydraulic Oil Extractor 8.5 Kg / Batch Capacity 6

Since1998, Henan Lewin Industry Development Co., Ltd was found officially registered under Henan Companies Registry.It is a firm which has the ability for Manufacture,Research&Development, Sale and Export. Our mainproducts are hydraulic oil press machine, spiral oil press machine, the accessory equipment for the oil press machine and other machine.
