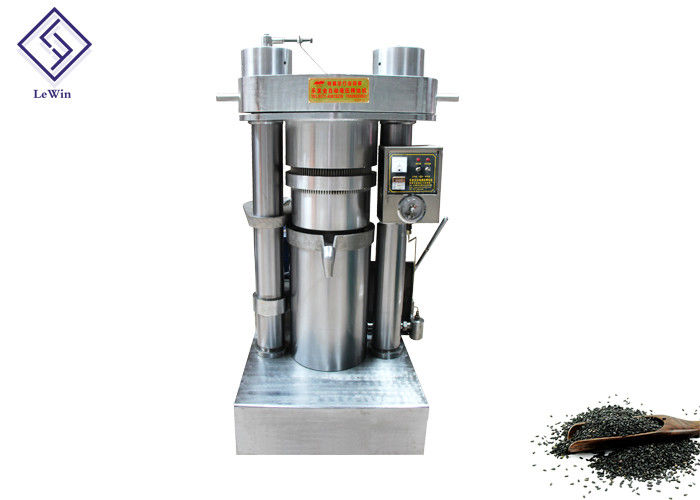

Small Cocoa Butter Sesame Oil Industrial Oil Press Machine 8.5kg / Batch Capacity

Small Cocoa Butter Sesame Oil Industrial Oil Press Machine 8.5kg / Batch Capacity

cold press expeller machine

hydraulic oil extractor

electric oil press machine

Place of Origin:

Henan province, china

Brand Name:

Lewin

Certification:

CE ISO

Model Number:

6YY-230A

Contact Us

Request A Quote
Product Details
Keyword:
Hydraulic Oil Press Machinery
Material:
Alloy Steel
Weight:
924kg
Dimension:
670*950*1460
Capacity:
8.5kg/batch
Advantage:
Simple Opeartion
Voltage:
380V
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case with film
Delivery Time
5-7working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

Small cocoa butter sesame oil extractor hydraulic walnut oil press machine



Hydraulic oil expeller:

Avocado oil press machine can work with automatic control by heating, oil pressing and filtering simultaneously. It can press the rapeseed press before the press bore heating and heating to improve the oil yield, while in the squeezing process of hair Oil when filtering.

Theory

The working principle is that the when the oil material is put into the assembly of the press boring, then it being driven up by the oil cylinder piston, oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.

parameters

Model 6YY-185 6YY-230A 6YY-250 6YY-300 6YY-335
Weight 550kg 924kg 1070kg 1600kg 1750kg
vacuum Power 1.1kw 1.1kw 1.1kw 2.2kw 2.2kw
3phase 2.2kw 2.2kw 2.2kw 4.0kw 4.8kw
Working pressure 60MPa 60MPa 60MPa 60MPa 60MPa
Capacity (Kg/h) 4kg/batch 8.5kg/batch 11kg/batch 16kg/batch 20kg/batch
Dimension(mm)

600*880*1150

670*950*1460
710*950*1560
1000*1100*1660
1100*1240*1730



Selling points

(1) High oil yield, pure oil, no filtration.
(2) The oil is squeezed once, the speed is fast, and the labor intensity is small.
(3) Electromechanical integrated design, small footprint and easy operation.
(4) Fast purification, stable and durable performance.
(5) Professional manufacturer.

Small Cocoa Butter Sesame Oil Industrial Oil Press Machine 8.5kg / Batch Capacity 0

Small Cocoa Butter Sesame Oil Industrial Oil Press Machine 8.5kg / Batch Capacity 1

This is a flow chart for pressing sesame seeds. It is for your reference only. The sesame seeds after roasting are pressed and pressed to obtain healthy edible oil.

Please contact us if you have any questions.



Seeds application of hydraulic oil making machine

Small Cocoa Butter Sesame Oil Industrial Oil Press Machine 8.5kg / Batch Capacity 2

The machine Could press rapeseed, cottonseed, soybean, peanut, flaxseed, palm, coconut shell, olive fruit, castor bean, sesame, sunflower, rice bran, corn germ, walnut, almond, evening primrose, Pine seeds, animal skin, clay and all oil crops. Residual oil rate is less than 5%.

If you want to process other special raw material, please cantact us to ensure.
