6YY-230A Processing Walnut Olive Oil Presser Oil Expeller Machine 380 V / 220 V

6YY-230A Processing Walnut Olive Oil Presser Oil Expeller Machine 380 V / 220 V

cold press expeller machine

hydraulic oil extractor

electric oil press machine

Place of Origin:

Henan , China

Brand Name:

Lewin

Certification:

ISO CE

Model Number:

6YY- 230A

Contact Us

Request A Quote
Product Details
Name:
6YY-230A Processing Walnut Olive Oil Presser Oil Expeller Machine
Model:
6YY - 230 A
Usage:
Cold & Hot Pressing
Material:
Kinds Of Seeds
Capacity:
8 Kg Per Batch
Voltage:
380 V / 220 V
Pressure:
60 Mpa
Weight:
924 KG
Power:
2.2 Kw / 1.1 Kw
Press Kettle Diameter:
230mm
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case package / Customized
Delivery Time
7-10 working days
Payment Terms
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

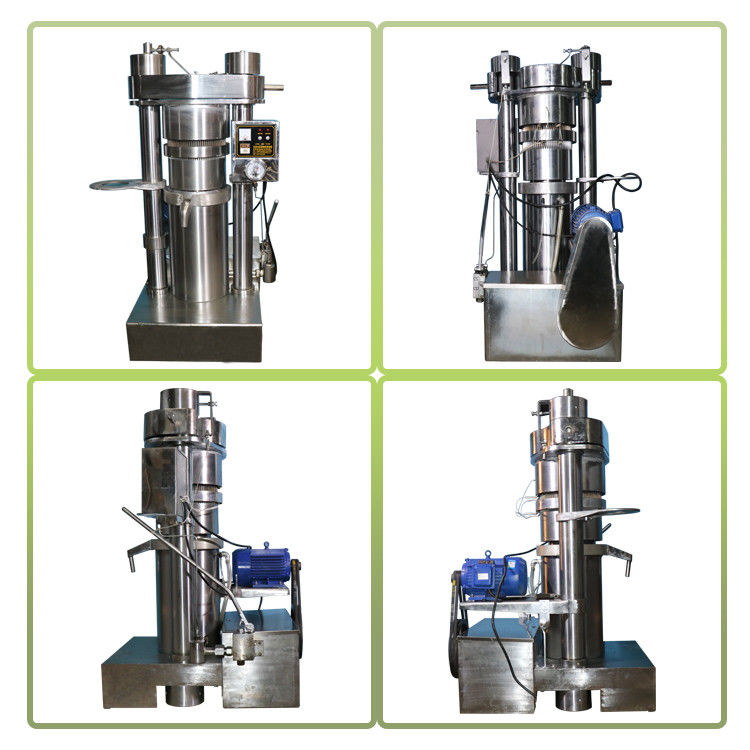

6YY-230A processing walnut olive oil presser oil expeller machine


Our machines are used to produce edible oil , like peanut oil, sesame oil and etc. It also can cold press oil.





1. This hydraulic oil press machine adopts automatic control system, hydaulic pressure control system and temperature control system.

2. This machine can work with many kinds of oil seeds well.

3. This machine can work continuously for 24 hours. It can squeeze 8 kilogram per batch, the perssing time is 8-15 minutes.

4. The pressure of our machine is 60Mpa, higher than other machine(the normal is 45Mpa to 55Mpa), provide higher oil yield.

5. The material of this machine is alloy that can make sure the safety.



Appliction range

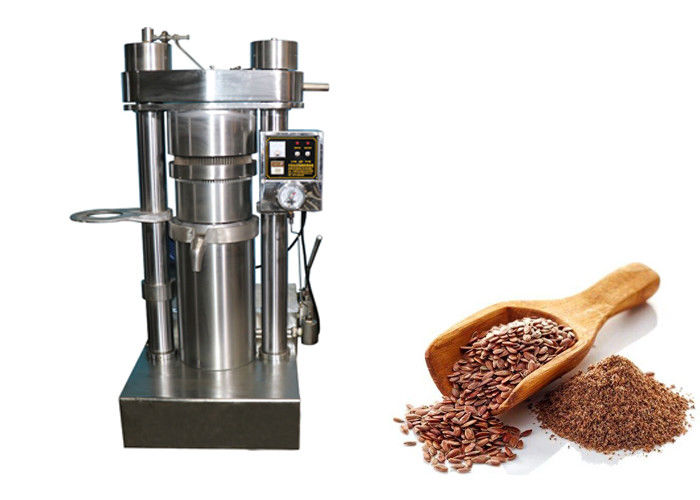

This machine can cold or hot press various of oil seeds, includes sesame, peanut, castor, walnut, camellia, olive, palm, avocado, sunflower, rapeseed, ect.

6YY-230A Processing Walnut Olive Oil Presser Oil Expeller Machine 380 V / 220 V 0





Parameter:

Model 6YY-185 6YY-230A 6YY-230B 6YY-250 6YY-270 6YY-300 6YY-335 6YY-355

Capacity

(kg/batch)

4 8.5 9.5 11 13.5 16 20 23
Working pressure 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa
Weight (kg) 590 924 950 1070 1230 1600 1750 2350

Power

(3 /single phase)

1.1/2.2 kw 1.1/2.2 kw 1.1 /2.2kw 1.1/2.2 kw 2.2/4.0 kw 2.2/4.8 kw 2.2/4.8 kw 3.0/5.0 kw

Package

Size(m)

0.78*1*1.58 0.78*1*1.58 0.78*1*1.68 0.78*1.04*1.71 0.82*1.081*1.75 0.94*1.14*1.81 0.94*1.16*1.8 1.04*1.24*1.92

Capacity

(Kg/24h)

190-260 500-650 600-750 650-780 800-1000 950-1200 1100-1400 1500-2000
Oil cake diameter 185mm 230mm 230mm 250mm 270mm 300mm 335mm 355mm
Residual oil ≤2% ≤2% ≤2% ≤2% ≤2% ≤2% ≤2% ≤2%
















































Work principle:

This machine is powered by the hydraulic tank that pushs the piston up to squeeze the raw material in the press kettle.

6YY-230A Processing Walnut Olive Oil Presser Oil Expeller Machine 380 V / 220 V 1



Workflow:



6YY-230A Processing Walnut Olive Oil Presser Oil Expeller Machine 380 V / 220 V 2

Operation step:

6YY-230A Processing Walnut Olive Oil Presser Oil Expeller Machine 380 V / 220 V 3



Our advantages

6YY-230A Processing Walnut Olive Oil Presser Oil Expeller Machine 380 V / 220 V 4

6YY-230A Processing Walnut Olive Oil Presser Oil Expeller Machine 380 V / 220 V 5

6YY-230A Processing Walnut Olive Oil Presser Oil Expeller Machine 380 V / 220 V 6




Packing & Delivery

Packing:

1. Standard export wooden case package.

2. Customized.

Delivery:

We can arrange to ship by sea in generally 7-10 working days after receipt the deposit. Also we can offer other shipping method, such as by air, by express, by train and so on. We have many shipping agent to meet different request for the shipping.

6YY-230A Processing Walnut Olive Oil Presser Oil Expeller Machine 380 V / 220 V 7


Our service

1.Offer the most suitable solution for you.


2. Visiting our factory.


3. Testing machine for you.


4. Always online to help you.


5. Delivery products immediately after receipt tje payment.


6. Change voltage according to your needs.


7. Operation manual, operation video and install video.

6YY-230A Processing Walnut Olive Oil Presser Oil Expeller Machine 380 V / 220 V 8
