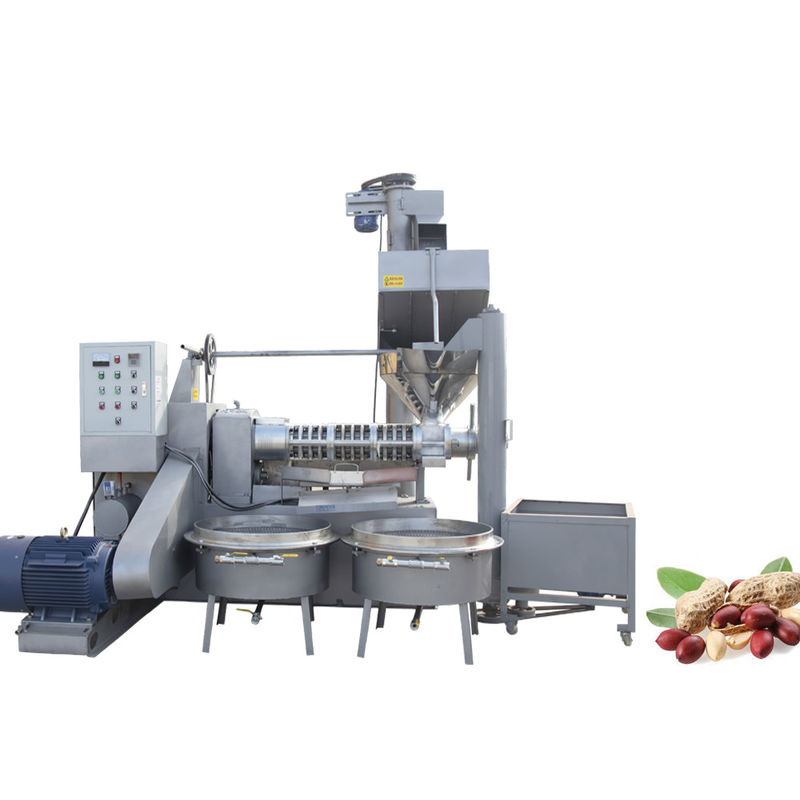

New research screw groundnut oil processing machine / nut oil press
What is the screw oil press machine
1. The Fully Automatic Spiral Oil Press Machine is a new research improvement product.
2. The machine can be squeezed more, saving time, effort and space. It is easy to operate so that one person can operate it.
3. It can set the heating temperature, directly filter while pressing and has high oil yield and pure oil.
4. This machine can work continuously for 24 hours. The service life of this machine is ten years or longer.
5. The L shape of oil cake feeding system can directly press the oil cake twice.
How to work
The working principle is that the oil is extruded from the material embryo and discharged from the slots and oil troughs of the strip and circle rows by the continuous pushing of the material embryo in the squeezing chamber and the change of the space volume of the squeezing chamber from large to small, and the oil can be directly eaten in a barrel after deep filtration of the oil tank.
Technical parameters of oil presser:
|
Model |
6YL-120 |
6YL-130 A |
6YL-150 |
6YL-160 |
6YL-180 |
|
Weight |
1200 kg |
1650 kg |
1800 kg |
1900 kg |
1980 kg |
|
Vacuum power |
1.1 kw |
1.1 kw |
2.2 kw |
2.2 kw |
2.2 kw |
|
3phase |
15 kw |
18.5 kw |
30kw |
30 kw |
37 kw |
|
Squeezer speed |
100-130 |
100-130 |
100-130 |
100-130 |
100-130 |
|
Capacity(kg/h) |
120-160 |
160-280 |
220-450 |
300-600 |
400-750 |
|
Dimension(mm) |
2000*1600*2700 |
2600*1600*2700 |
2550*1800*2700 |
2650*1900*2700 |
2700*2000*2700 |
Characters:
1. Stable performance
The main components of our machines are produced by ourselves in order to guarantee the oil rate and the quality of the machine.
2. Oil pure and fragrant
The oil filter is dense that the oil can be filtered clean.
3. High oil yield and long service life
The diameter of the spiral squeezer is longer than other similar products and the squeezer speed is low so that the raw material can be pressed clean. It is made of high quality steel, which has longer service life.
4. Saving time and effort
The L shape of oil cake feeding system can directly press the oil cake twice.
5. Temperature Control System
The temperature of the oil is automatically temperature controlled to improve the processing speed of the oil, and the low temperature environment can be produced normally.
Detailed images
Parts of high quality oil presser:
Seeds application of screw oil making machine
