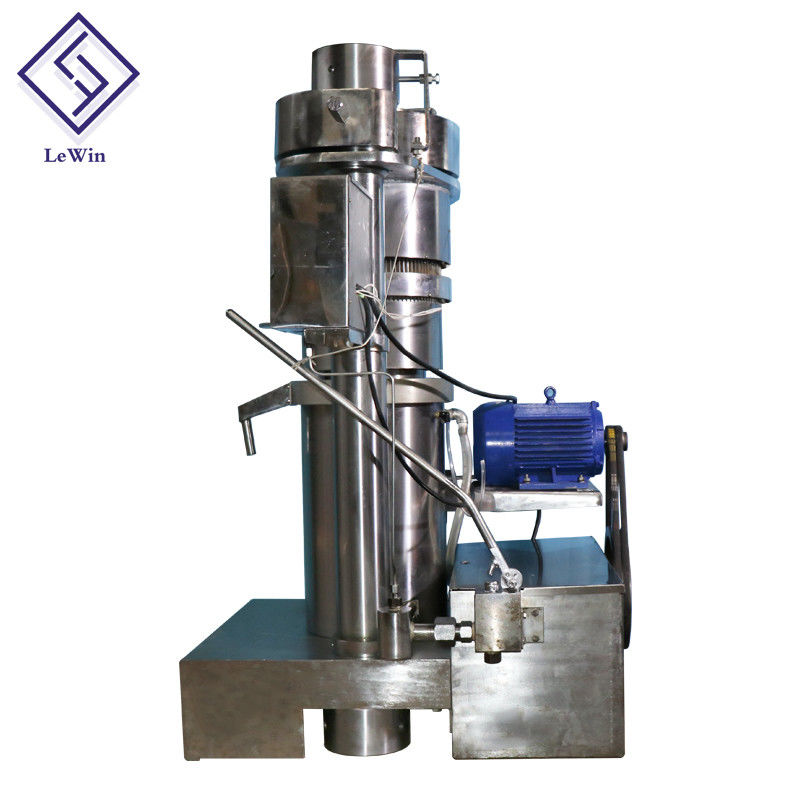

Cold Pressed Hydraulic Oil Press Machine Olive Oil Making Machinery

Cold Pressed Hydraulic Oil Press Machine Olive Oil Making Machinery

cold press expeller machine

hydraulic oil extractor

electric oil press machine

Place of Origin:

Henan province, china

Brand Name:

Lewin

Certification:

CE ISO

Model Number:

6YY-230A

Contact Us

Request A Quote
Product Details
Keyword:
Hydraulic Oil Mill Machinery
Material:
Alloy Steel
Weight:
924kg
Dimension:
670*950*1460
Capacity:
8.5kg/batch
Advantage:
Simple Opeartion
Voltage:
380V
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case with film
Delivery Time
5-7working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

Cold pressed hydraulic oil press machine olive oil making machinery



Basis Information

Hydraulic oil pressure machine is the most advanced equipment which can replace the manual operation of the sesame oil.

1. Steel materials of the machine are purchased from the steel manufacturering factories directly, so

the materials are in high quality;

2. We have top engineer group and long-term cooperation with several research institutions, we

serve the satisfied designs for our customers.

3. Our workers are professional, each of them has been trained strictly before their job;

4. We supply the high grade, the consummation after-sale service.

Theory

The working principle is that the when the oil material is put into the assembly of the press boring, then it being driven up by the oil cylinder piston, oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.

parameters

Model

6YY-185

6YY-230A

6YY-250

6YY-300

6YY-335

Weight

550kg

924kg

1070kg

1600kg

1750kg

vacuum Power

1.1kw

1.1kw

1.1kw

2.2kw

2.2kw

3phase

2.2kw

2.2kw

2.2kw

4.0kw

4.8kw

Working pressure

60MPa

60MPa

60MPa

60MPa

60MPa

Capacity

4kg/batch

8.5kg/batch

11kg/batch

16kg/batch

20kg/batch

Dimension(mm)

600*880*1150

670*950*1460

710*950*1560

1000*1100*1660

1100*1240*1730



Selling points

1. It adopts new supercharging technology and two-stage supercharged safety protection system to ensure safe use.
2. The main part adopts hard chrome plating process, the color is even and never fades.
3. The hydraulic cylinder is made with precision, the bearing pressure is large, and the performance is stable and reliable.
4. The main components are all forged and processed to ensure that they will never deform under high pressure.
5, Stainless steel electrical cabinets, beautiful appearance, low failure rate.
6. The barrel is processed by upper and lower oil lines, and the oil line is increased. While ensuring the strength of the barrel, the oil yield is increased.
7, free installation and commissioning, imparting press technology, equipment one year warranty, lifetime maintenance.

Cold Pressed Hydraulic Oil Press Machine Olive Oil Making Machinery 0

Seeds application of hydraulic oil making machine

Cold Pressed Hydraulic Oil Press Machine Olive Oil Making Machinery 1

If you want to process other special raw material, please cantact us to ensure.



Simple operation

Cold Pressed Hydraulic Oil Press Machine Olive Oil Making Machinery 2

Our service

Provide quality service

1.Professional engineer

Our professional engineer will test the machine in each step.

2.Specialist manufacture

Every machine carefully adjusted before shipment.

3.After-service

The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
