70kg Peanut Crusher Equipment 700 ×500 ×1000 Mm 1000-1500 Kg/H Capacity

70kg Peanut Crusher Equipment 700 ×500 ×1000 Mm 1000-1500 Kg/H Capacity

groundnut crushing machine

peanut grinder machine

Place of Origin:

Henan Province

Brand Name:

Lewin

Certification:

CE ISO

Model Number:

LW-28

Contact Us

Request A Quote
Product Details
Key Words:
Peanut Crusher Machinery
Warranty:
1 Year
Capacity:
1000-1500 Kg/h
After-sale Service:
Video Technical Support
Weight:
70kg
Dimension:
700 ×500 ×1000 Mm
Test&installation:
Engineer Guide
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Wooden case with film
Delivery Time
5-7 working days after full payment
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 per set per month
Product Description

Peanut cruhser equipment 70kg 700 ×500 ×1000 mm food crushing machinery

Product Information
1.The grinding roller is flat, the material is easy to enter the grinding area, and it is easy to disassemble and repair.
2.Helical gear transmission between fast and slow rollers, high transmission efficiency, stable operation and low noise.
3.The grinding roller adopts self-aligning ball bearing to ensure accurate concentric rotation and can withstand high speed and roller pressure.
4.The centrifugal casting grinding roller is balanced, running smoothly and has a long service life.
5.Fine-tuning the rolling structure is simple and labor-saving, and the locking handle is easy to operate.
6.The roller brush cleaning is cleaner, the adjustment is simple, the grinding roller is protected, and the power consumption is reduced.
7.Cover protection structure, simple and convenient.
8.The whole machine is fully enclosed, safe and beautiful.
Main parmaters:

Model Capacity(kgh) Weight Power(Single) Dimension(mm)
LW-20 800-1000 55 1.5-2.2kw

500*450*920

LW-28 1000-1500 70 3kw

700*500*1000


Working principle:
The material is fed through the feed hopper from the top feed port, and is pressed into a flat shape by the 45# steel counter rolls, and is discharged from the base discharge port. There is a wrench at the front end of the machine, which can adjust the thickness of the material at will to achieve the most satisfactory results.

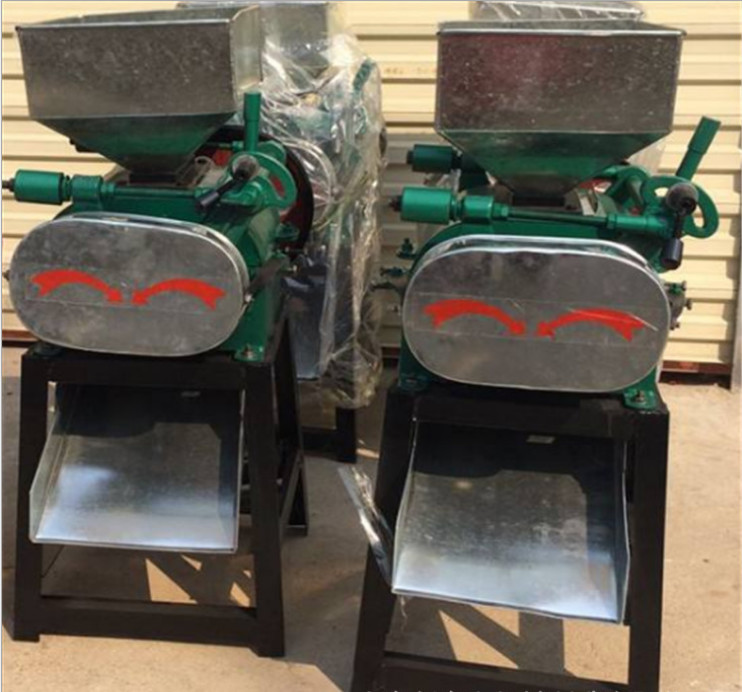

70kg Peanut Crusher Equipment 700 ×500 ×1000 Mm 1000-1500 Kg/H Capacity 0

The LW-20 model and LW-28 model crushers designed and developed by our company , with simple structure, resistant to use, small supporting power and high production efficiency. It is mainly suitable for raw material rolling into glutinous rice (peanut crushed, corn crushed, soybean crushed, sorghum crushed, etc.) The machine is widely used in oil mills, individual processing household oil mills, crushing and use, easy to operate, easy to maintain, easy to maintain and so on.
Simple operation:
 1.Check whether the fasteners are loose before starting the machine, and turn the pulley by hand to see if there is any foreign matter in the machine.
 2.After starting the machine, follow the direction indicated by the arrow.
 3.Adjust the feed handle according to different production requirements.
 4.Control the degree of crushing of materials by adjusting the wrench.
 5.Do not put hard objects such as stones or iron.

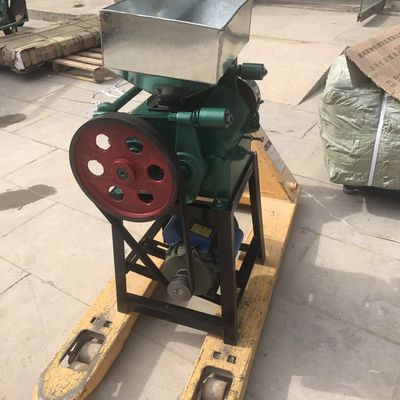

70kg Peanut Crusher Equipment 700 ×500 ×1000 Mm 1000-1500 Kg/H Capacity 1
Packing and Shipping:
70kg Peanut Crusher Equipment 700 ×500 ×1000 Mm 1000-1500 Kg/H Capacity 2
Conpany information:
70kg Peanut Crusher Equipment 700 ×500 ×1000 Mm 1000-1500 Kg/H Capacity 3
Pre-service:
1.We will test and adjust before we send the machine, make sure it can be used with confidence after receiving it.
2.We accept the customized model.
After-service:
1.The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person )
2. After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3. During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.

Related products
Hydraulic oil press machine & screw oil press machine
70kg Peanut Crusher Equipment 700 ×500 ×1000 Mm 1000-1500 Kg/H Capacity 4
