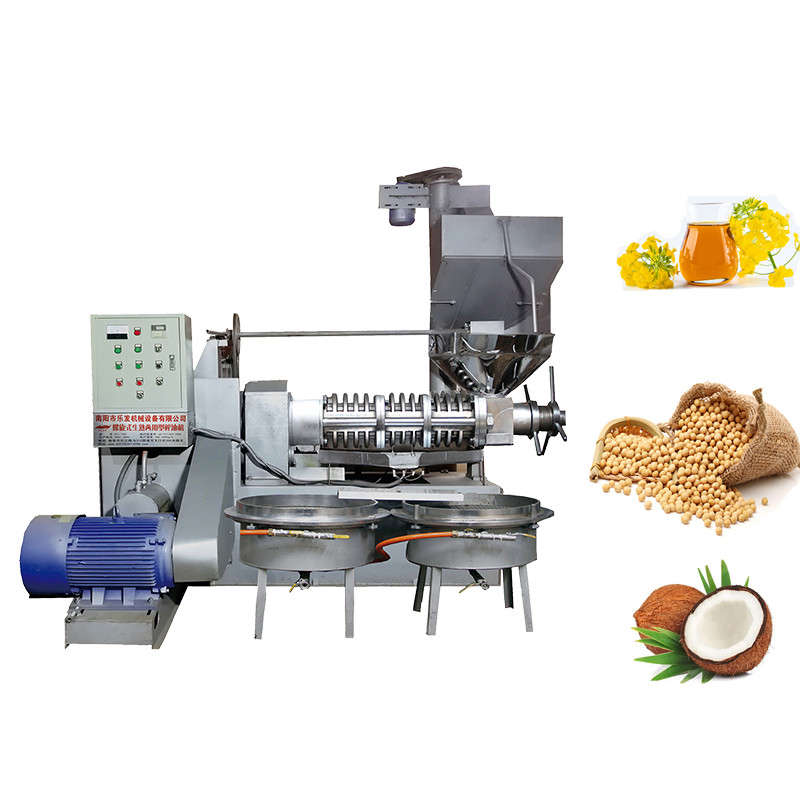

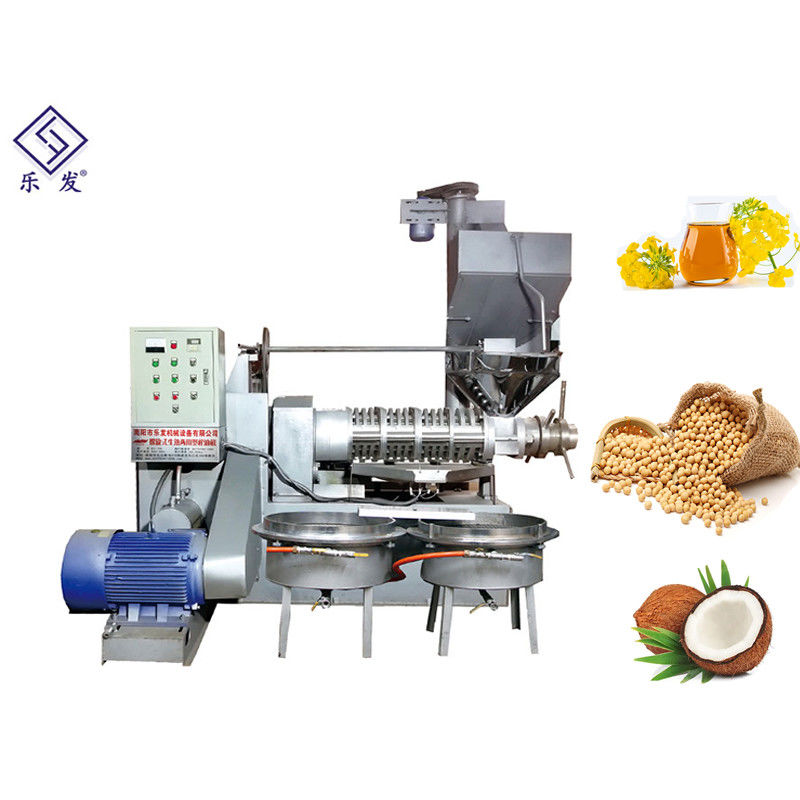

Top oil yield high capacity oil making machine with oil filter system

Top oil yield high capacity oil making machine with oil filter system

cold press expeller machine

electric oil press machine

Place of Origin:

Henan, China(Mainland)

Brand Name:

Lewin

Certification:

ISO CE

Model Number:

6YL-120

Contact Us

Request A Quote
Product Details
Name:
Spiral Oil Making Machine
Model:
6YL-120
Capacity:
120-160 Kg/h
Power:
15 KW
Squeezer Speed:
100-130 RPM
Oil Rate:
96%
Key Word:
Sunflower Oil Processing Machine
Shipping:
By Sea
HS Code:
8479200000
Vacuum Power:
1.1 KW
Weight:
1500 Kg
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case package/ Customized
Delivery Time
7-10 working days
Payment Terms
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description
Top oil yield high capacity oil making machine with oil filter system

Intruduction


This kind of oil making machine utilizes the screw shaft which is set-up with different styles of screws and rotates when machine is running to push the material into chamber. Then the oil is separated out through the extrusion of pressing worm and pressing ring. This oil press machine is in accordance with the standard JB/T9793.1-1999 for screw oil press for farm use.

This oil press machineis composed offeeder, gear box, pressing cage, screw shaft and machine stand etc.

Top oil yield high capacity oil making machine with oil filter system 0

This machine is suitable for rapeseed, peanut, soybean, sunflower, rapeseed, sesame seed, tea seed, walnut, olive, corn germ, rice bran, safflower seed, seeds of hippophae rhamnoides and so on.

Top oil yield high capacity oil making machine with oil filter system 1



Working Principle of Screw Oil Press Machine

When the raw materials have been sent to the hopper of oil press machine and then been moved forward by the rotating pressing screw for pressing. Under the high-pressure condition in the chamber, friction between material and screw, chamber will be created, which also creates friction and relative movement among material particles. On the other hand, root diameter of the pressing screw caries larger from one end to the other, hence. When rotating, it not only pushes particles to move forward,but also turns them outwards as well. Meanwhile,particles adjacent the scew will rotate along with screw‘s rotating, causing every particle inside the chamber to possess different speed. Therefore, relative movement among particle creates heat which is necessary during manufacturing becasue of helping protein change property,damage colloid,increase plasticity, decrease oil’s elasticity, resulting in high oil productivity.



Advantages of Screw Oil Press Machine

♣energy saving: same output will reduce electric power 40%.

♣Labor saving: same output will save labor 60%, 1~2 person can organize production.

♣wide application: This machine is suitable for pressing peanut, sesame, rapeseeds, beans, sunflower seeds, oil seeds, etc. Multistage extracting, extracting well at one time.

♣pure oil quality: vacuum to filter residue, so as to ensure the pure oil quality, and reach health standard.Top oil yield high capacity oil making machine with oil filter system 2Top oil yield high capacity oil making machine with oil filter system 3



Paramter

Model

Dimension (mm)

Weight

Power

Vacuum power

Rotary speed

Capacity(kg/h)

6YL-120 2000*1600*2700 1500kg 15kw 1.1kw 100-130 120-160
6YL-130 2150*1600*2700 1600kg 22kw 1.1kw 100-130 180-300
6YL-130(A) 2600*1600*2700 1650kg 18.5kw 1.1kw 100-130 160-280
6YL-150 2550*1800*2700 1800kg 30kw 2.2kw 100-130 220-450
6YL-160 2650*1900*2700 1900kg 30kw 2.2kw 100-130 300-600
6YL-180 2700*2000*2700 1980kg 37kw 2.2kw 100-130 400-750

1. We have different models for you to choose.

2. According to your requirements, we can also customize for you.


Our company

Top oil yield high capacity oil making machine with oil filter system 4

We have our own factory and warehouse, so we can guarantee the quality of the oil press machine, if there are any other questions about our oil pressing machine, we can give you a best solution, in addition, We are factory direct sale, cut out the middleman, thus makes the price lowest for our customers. so if you need, please contact us freely!


Packing & Delivery

Packing:

1. Standard export wooden case package.

2. Customized.

Delivery:

We can arrange to ship by sea in generally 7-10 working days after receipt the deposit. Also we can offer other shipping method, such as by air, by express, by train and so on. We have many shipping agent to meet different request for the shipping.

Top oil yield high capacity oil making machine with oil filter system 5


Our service

1. Pre-sale service:

We offer different solution for different request and material.

Factory view accepted.

Test machine accepted.

7x24 hours online service.

2. After sale service:

1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.

Top oil yield high capacity oil making machine with oil filter system 6
