6YY-185 model portable type hydraulic oil making machine for cooking oil

6YY-185 model portable type hydraulic oil making machine for cooking oil

cold press expeller machine

hydraulic oil extractor

Place of Origin:

Henan Province

Brand Name:

Lewin

Certification:

CE ISO

Model Number:

6YY-185

Contact Us

Request A Quote
Product Details
Product Name:
Oil Extractor Equipment
Oil Material:
Sesame, Avocado, Walnut, Olive, Sunflower,
Usage:
Oil Plant
Feature::
Simple Operation
Service:
Oline After-sale Service
Voltage:
380V
Advantages:
Full Automatically
Payment & Shipping Terms
Minimum Order Quantity
1 sets
Price
Negotiation
Packaging Details
Wooden case with film
Delivery Time
5-7 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

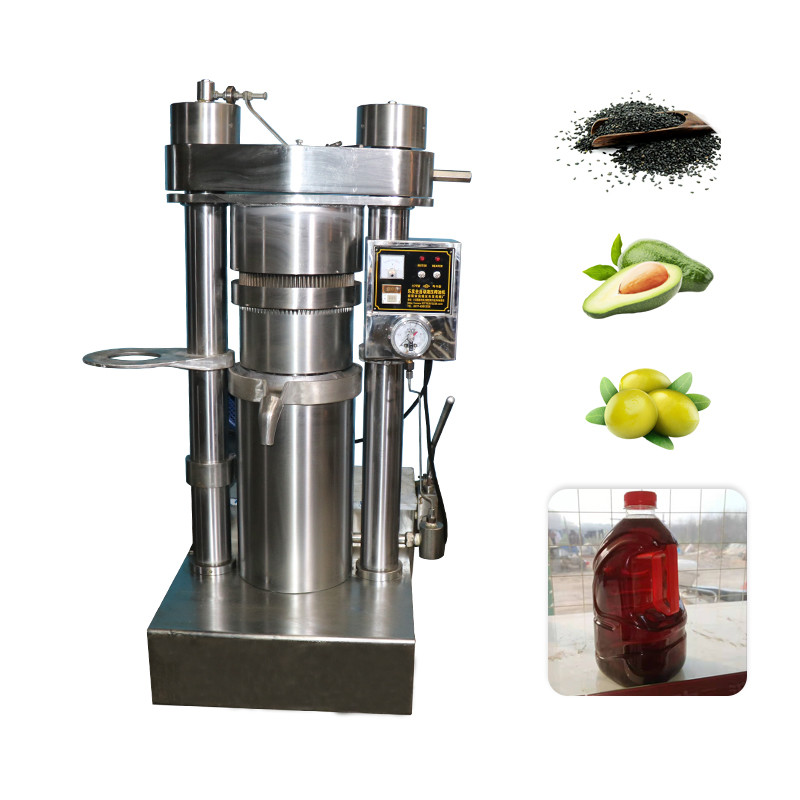

6YY-185 model portable type hydraulic oil making machine for cooking oil

Advantages:

1. We choose the famous brand steel, three times heating treatment and high manufacture technology to make sure it stronger enough.

2. Our QC department strictly to check the quality of all the parts, to make sure the all the parts work well.

3. We will test the machine before shipping, make sure the machine work without any problem, let the customer get the high quality equipment.

4. 10 professional engineers work with our production department, can offer the best solution for your project

Operating priciple of hydraulic oil press machine:

The working principle is that the when the oil material is put into the assembly of the press boring, then it being driven up by the oil cylinder piston, oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.



Seeds application of hydraulic oil making machine:

1.It is suitable for direct processing of rape, peanut, sunflower seed, sesame,

palm,almond,perilla,olive and other oil crops.

2.If you want to process other special raw material, please cantact us to ensure.

6YY-185 model portable type hydraulic oil making machine for cooking oil 0

Technical parameters of oil presser:

Model  6YY-185 6YY-250 6YY-270 6YY-300 6YY-335
Weight 550kg 1060kg 1230kg 1600kg 1750kg
vacuum Power 1.1kw 1.1kw 2.2kw 2.2kw 2.2kw
3phase 2.2kw 2.2kw 4.0kw 4.8kw 4.8kw
Working pressure 60MPa 60MPa 60MPa 60MPa 60MPa
Capacity  4kg/batch 11kg/batch 13.5kg/batch 16kg/batch 20kg/batch
Dimension(mm)

600*880*1150

710*950*1560
750*1010*1640



1000*1100*1660
1100*1240*1730



Product Information

1.Our YYseries automatic hydraulic oil press machine has many advantages: easy to operate, high oil press rate, rare to replace wearing parts.

2.This oil press is the most advanced equipment which can replace of the manual operation of the sesame oil.

3.This machine can press at least 2 to 23 kilograms per batch, the time is about 4 to 15 minutes.

6YY-185 model portable type hydraulic oil making machine for cooking oil 1

Packing and shipping

We use strong wooden case to ensure the safety of your goods in transit.

6YY-185 model portable type hydraulic oil making machine for cooking oil 2

Our service

1.Professional engineer

Our professional engineer will test the machine in each step.

2.Specialist manufacture

Every machine carefully adjusted before shipment.

3.After-service

The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)

6YY-185 model portable type hydraulic oil making machine for cooking oil 3

Company information

6YY-185 model portable type hydraulic oil making machine for cooking oil 4

 Since1998, Henan Lewin Industry Development Co., Ltd was found officially registered under Henan Companies Registry.It is a firm which has the ability for Manufacture,Research&Development, Sale and Export. Our mainproducts are hydraulic oil press machine, spiral oil press machine, the accessory equipment for the oil press machine and other machine.
