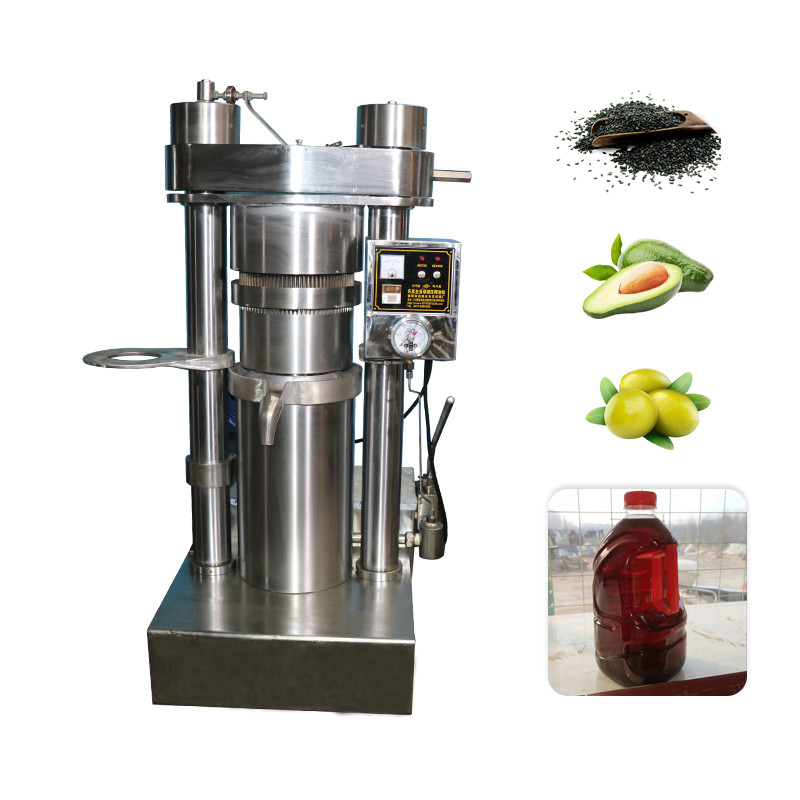

Low Noise Hydraulic Industrial Oil Press Machine 4 Kg / Bacth Capacity

Low Noise Hydraulic Industrial Oil Press Machine 4 Kg / Bacth Capacity

cold press expeller machine

hydraulic oil extractor

Place of Origin:

Nangyang, Henan

Brand Name:

Lewin

Certification:

ISO CE

Model Number:

YY-185

Contact Us

Request A Quote
Product Details
Product Name:
Widely Use Economic Price Hydraulic Oil Press Machine With Low Noise
Model:
YY-185
Power:
1.1kw
Voltage:
220v/380v/ Customize
Dimenison:
600*880*1150mm
Weight:
590 Kg
Capacity:
4 Kg/ Bacth
Material:
Alloy
Raw Materials:
Sesame Olive Avocaod Inca Peanut
Oil Cake Diameter:
185 Mm
Working Pressure:
60MPa
Process Type:
Cold / Hot Press Machine
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case / customize
Delivery Time
5-7 working day
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
50 sets per month
Product Description

Product Description

Widely use economic price hydraulic oil press machine with low noise



Our YY series automatic hydraulic oil press machine has many advantages: easy to operate, high oil press rate, rare to replace wearing parts. This oil press is the most advanced equipment which can replace of the manual operation of the sesame oil.

Low Noise Hydraulic Industrial Oil Press Machine 4 Kg / Bacth Capacity 0



Our oil presser machine has the following characteristics:
1. It can save labor and save cost: only one or two people can meet the production.

2. Our hydraulic oil press machine adopt physical method to press oil to keep the essence not destroyed.
3. 60Mpa max working pressure offers stronger power to press, increase the oil yield.

4.Specially heating treatment for the steel, makes the machine stronger to bear the high working pressure.



Low Noise Hydraulic Industrial Oil Press Machine 4 Kg / Bacth Capacity 1



Main Features

(1) High oil yield, pure oil, no filtration
(2) The oil is squeezed once, the speed is fast, and the labor intensity is small
(3) Electromechanical integrated design, small footprint and easy operation
(4) Fast purification, stable and durable performance

Low Noise Hydraulic Industrial Oil Press Machine 4 Kg / Bacth Capacity 2

This machine can be used for process many kinds of raw material: sesame, walnut kernel, peanut, pine seed (better to get rid of the shell), almond, spricot kernel, perilla, cocoa bean, linseed, avocado and other oil crops.

Low Noise Hydraulic Industrial Oil Press Machine 4 Kg / Bacth Capacity 3

Main Parameter:

1. You can choose the model that suits you according to your requirements.

2. If you need other models, we can also customize it for you.

Model 6YY-185 6YY-230(A) 6YY-230(B) 6YY-250 6YY-270 6YY-300 6YY-335 6YY-355
Capacity 4(kg/batch) 8.5(kg/batch) 9.5(kg/batch) 11(kg/batch) 13.5(kg/batch) 16(kg/batch) 20(kg/batch) 23(kg/batch)
Weight(kg) 590(kg) 924(kg) 970(kg) 1070(kg) 1230(kg) 1600(kg) 1750(kg) 2350v
Working pressure 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa
Power(single/3 phase) 2.2/1.1kw 2.2/1.1kw 2.2/1.1kw 2.2/1.1kw 4.0/2.2kw 4.8/2.2kw 4.8/2.2kw 5.0/3.0kw
Dimension(mm) 600*880*1150 670*950*1460 670*950*1560 710*950*1560 750*1010*1660 1000*1100*1160 1100*1240*1730 1160*1200*1810
Oil cake diameter 185mm 230mm 230mm 250mm 270mm 300mm 335mm 355mm
Residual oil rate ≤2 ≤2 ≤2 ≤2 ≤2 ≤2 ≤2 ≤2



Sesame oil extraction process:



Low Noise Hydraulic Industrial Oil Press Machine 4 Kg / Bacth Capacity 4

Detailed Images

The design is scientific, the structure is reasonable, the operation is simple, the safety is stable, and the fully automated device is used. It takes only a few minutes from the feeding to the finished product.





1. Part name:Pressing kettle

Brand: Lewin
Perfect oil line, high quality steel and many times heating treament make it stronger enough

Low Noise Hydraulic Industrial Oil Press Machine 4 Kg / Bacth Capacity 5





2. Part name: Wroking table

Brand: Lewin
New designed table to put the filter pad, make the pressing more convenience.



Low Noise Hydraulic Industrial Oil Press Machine 4 Kg / Bacth Capacity 6







3. Part name: Pressure release valve

Brand: Lewin
Control the suitble working pressure, over pressure will release automaticlly.

Low Noise Hydraulic Industrial Oil Press Machine 4 Kg / Bacth Capacity 7





Our warehouse

We have our own factory and warehouse, so we can guarantee the quality of the oil press machine, if there are any other questions about our oil pressing machine, we can give you a best solution, in addition, We are factory direct sale, cut out the middleman, thus makes the price lowest for our customers. so if you need, please contact us freely!

Low Noise Hydraulic Industrial Oil Press Machine 4 Kg / Bacth Capacity 8

Our service

1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.

Packing:

1. Standard export wooden case package.

2. Customized.

Delivery:

Generally 7-10 working days after receipt the deposit.

Low Noise Hydraulic Industrial Oil Press Machine 4 Kg / Bacth Capacity 9

FAQ



Q: When can I get the price?

A: We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.



Q: I don't know how to use the oil press machine.

A: Don't worry, we will send you Manual for oil press machine. We also provide the operation videos of oil press machine.



Q: Can you guarantee your quality?

A: Of course. We are the manufacture factory. Best quality is our principle all the time.



Q: Do you offer customized service?
A: Yes, we could offer customized service.

Q: What is your terms of payment ?
A: Payment<=1000USD, 50% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
