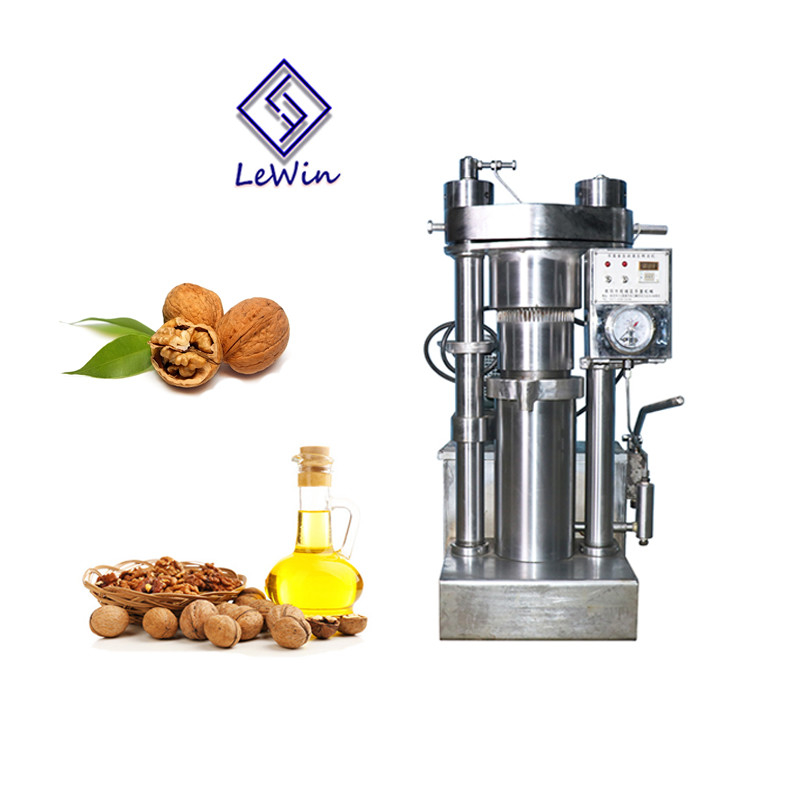

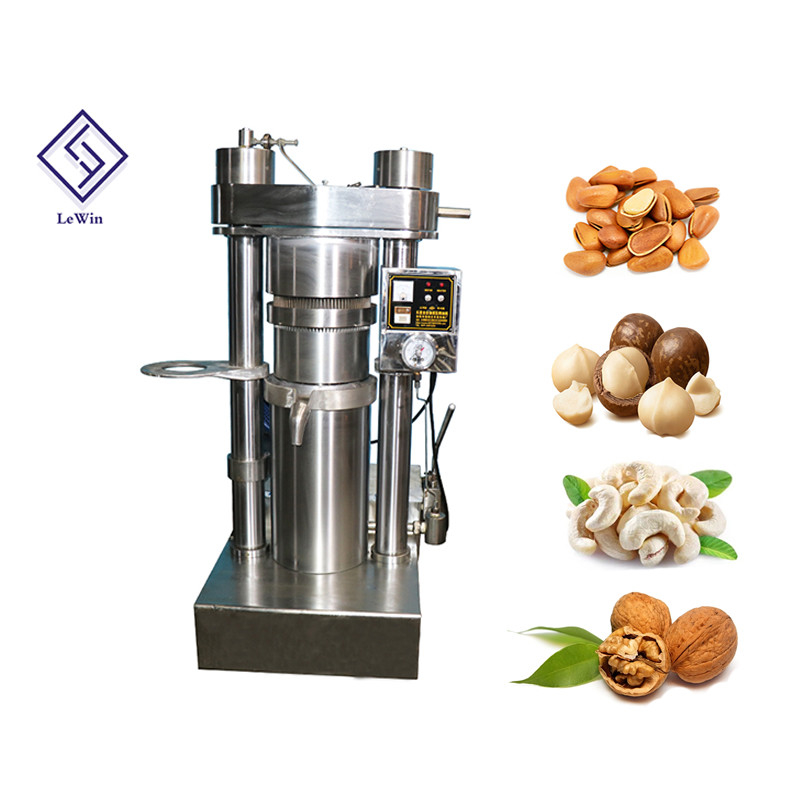

Walnut Oil Press Industrial Oil Press Machine High Oil Yield 380V Voltage

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Wooden case with film Delivery Time : 5-7working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 sets per month
Place of Origin: Henan province, china Brand Name: Lewin
Certification: CE ISO Model Number: 6YY-250

Detail Information

Other Name: Hydraulic Oil Extrator Machinery Material: Alloy Steel
Weight: 1070kg Dimension: 710*950*1560 Mm
Capacity: 11 Kg/batch Advantage: High Oil Yield
Voltage: 380V
High Light:

cold press expeller machine

,

hydraulic oil extractor

,

electric oil press machine

Product Description

Top quality cold walnut oil press hydraulic oil making machine

for cooking oil

Introduction for oil pressers

1. LEWIN automatic high-speed hydraulic oil press machine is a new type hydraulic oil press that Combining the characteristics of traditional oil presses, and improving in terms of oil extraction

2. It is easy to use, easy to operate, and has high oil yield.

3. It is a professional equipment for extracting high oil crops such as sesame, peanut, walnut, almond, pine nut and tea seed.

6YY-250 Machinery parameters

Walnut Oil Press Industrial Oil Press Machine High Oil Yield 380V Voltage 0

Different models can meet your different demands.

Model 6YY-185 6YY-230B 6YY-300 6YY-335
Weight 550kg 950kg 1600kg 1750kg
vacuum Power 1.1kw 1.1kw 2.2kw 2.2kw
3phase 2.2kw 2.2kw 4.0kw 4.8kw
Working pressure 60MPa 60MPa 60MPa 60MPa
Capacity 4kg/batch 9.5kg/batch 16kg/batch 20kg/batch
Dimension(mm)

600*880*1150

670*950*1560
1000*1100*1660
1100*1240*1730





How to work

The working principle is that the when the oil material is put into the assembly of the press boring, then it being driven up by the oil cylinder piston, oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.

Applied for varieties oil material

Walnut Oil Press Industrial Oil Press Machine High Oil Yield 380V Voltage 1

If you want to process other special raw material, please cantact us to ensure.

Application---Sesame oil processing line

Walnut Oil Press Industrial Oil Press Machine High Oil Yield 380V Voltage 2

1. This is the operation process diagram of sesame.

2. The sesame after the wok is roasted and dried, and automatically enters the oil press through the wind suction system.

3. Save time and effort and save space.

4. More importantly, the sesame after roasting is full of color and flavor, healthy and pure, and can be eaten directly.

Simple operation

Walnut Oil Press Industrial Oil Press Machine High Oil Yield 380V Voltage 3

1. Our machines are easy to operate and can be operated by one person.
2. We will provide you with videos to guide you in the installation and operation of the machine.
3. If necessary, we can also arrange an engineer to go to the site to guide.


Our service

Provide quality service

1.Professional engineer

Our professional engineer will test the machine in each step.

2.Before delivery

Every machine carefully adjusted before shipment.

3.After-service

The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)

Walnut Oil Press Industrial Oil Press Machine High Oil Yield 380V Voltage 4

Customer feedback

We try our best to service our customer.

Walnut Oil Press Industrial Oil Press Machine High Oil Yield 380V Voltage 5

Packing and shipping

We have in enough stock and can arrange shipping for you as soon as possible.

Walnut Oil Press Industrial Oil Press Machine High Oil Yield 380V Voltage 6

Company information

Walnut Oil Press Industrial Oil Press Machine High Oil Yield 380V Voltage 7

Walnut Oil Press Industrial Oil Press Machine High Oil Yield 380V Voltage 8

Since1998, Henan Lewin Industry Development Co., Ltd was found officially registered under Henan Companies Registry.It is a firm which has the ability for Manufacture,Research&Development, Sale and Export. Our mainproducts are hydraulic oil press machine, spiral oil press machine, the accessory equipment for the oil press machine and other machine.
